Automatic Parking Lot Ticket Vending Machine for Queue Management System
Product Specifications
| Prod Model: |
HCT-F6-2710-11-0121 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| C/D Dimension Without Shutter: |
326L X 103W X 220h Mm |
| C/D Dimension With Shutter: |
347L X 100W X 200h Mm |
| Net Weight: |
Approx. 2.8kg (Excluding Accessories and Package) |
| Communication Method: |
RS232 |
| Environmental Condition: |
Outdoor |
| Type: |
Ticket |
| Charge System: |
Credit Card |
| Payment: |
Swiping Card |
| Extended Networking: |
Support Extended Networking |
| Power-off Protection: |
With Power-off Protection |
| Condition: |
New |
| Failure Self Detection: |
With Failure Self Detection |
| Customized: |
Customized |
| Change: |
With Small Change |
| Function: |
Ticket /Card Vending Machine |
| Touch Screen: |
Kiosk Module |
Product Description
General

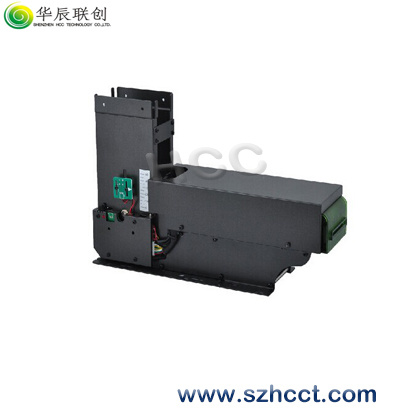

HCT-F6 series card issuing machine is a 3-in-1 card issuing and reading/writing device, which supports ISO14443 RF card and ISO7816 IC card R/W as well as ISO 7810/7811 magnetic card R. Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical sector, transportation sector and that for account opening in banks.
Feature
Ø Supports ISO7810/7811 magnetic card reading only.
Ø Supports ISO7816-2 contact IC card reading/writing.
Ø Unique dispensing wheel design: Is capable of issuing various embossing cards accurately.
Ø Convenient and simple card adjustment design: Is stable and accurate to dispense cards with various thicknesses.
Ø Compact structure design: Effectively saves space for the complete machine.
Ø Rear card capture box: Provides convenience for card management.
Ø Simple collection channel design: Satisfies user requirement for large collection amount.
Ø Multiple sensors: Are able to judge the card position and indicate the card status.
Ø Protruding bezel: For anti-theft is available
Ø Bezel with LED light: Provides card insertion indication and/or lighting and prevents the card being left inside.
Ø Supports multiple communications (max. 16 C/Ds).
Ø Supports online upgrade program.
| ELECTRICAL | Power Supply | DC24V ± 5%,3A |
| Quiescent Current | <200mA |
| Communication Method | RS232 |
| STRUCTURE | Service Life | Issuing life ≥ 1,000,000 times |
| Magnetic head ≥ 500,000 times |
| IC contact ≥ 500,000 times |
| Card Stacker Capacity | 150 pcs (0.76mm standard card) |
| 120 pcs (0.76mm embossing card) |
| 300 pcs (0.4mm thickness) |
| Capture Box Capacity | 25 pcs (0.76mm standard card)
(Collection channels can be customized to collect unlimited cards.) |
| Net Weight | Approx. 2.8KG (excluding accessories and package) |
| C/D Dimension | 326L x 103W x 220H mm (without shutter) |
| 347L x 100W x 200H mm (with shutter) |
| ENVIRONMENTAL | Operation Temperature/ Humidity | 0°C to 50°C, 0 to 90% RH without condensation |
| Storage Temperature/ Humidity | -20°C to 70°C, 0 to 90% RH without condensation |
| PERFORMANCE | Cards Supported | 86L x 55W mm
(0.2~1.2mm thickness; factory standard: 0.8mm) |
| Magnetic Recording Capacity | Track 1 (IATA): Max. of 79 characters (6 bits + 1 parity) |
| Track 2 (ABA): Max. of 40 characters (4 bits + 1 parity) |
| Track 3 (MINTS): Max. of 107 characters (4 bits + 1 parity) |
| Magnetic Coercivity | 24k~320k A/m (300~4000 Oe)+/-10% |
| Mifare Type A Operating Frequency | 13.56 MHz |
