Product Specifications
| Prod Model: |
ZK-660A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Carton Packaging Machinery |
| Automatic Grade: |
Automatic |
Product Description
Zhongke Packaging Machinery Co., Ltd. Professional manufacturer of full automatic rigid paper box making machine, paper box making lines, rigid paper box making lines, paper box making machinery, rigid paper box making machinery, paper box forming machinery, rigid paper box forming machinery, paper box equipment, rigid paper box equipment, paper box, rigid paper box, paper box machinery and so on.

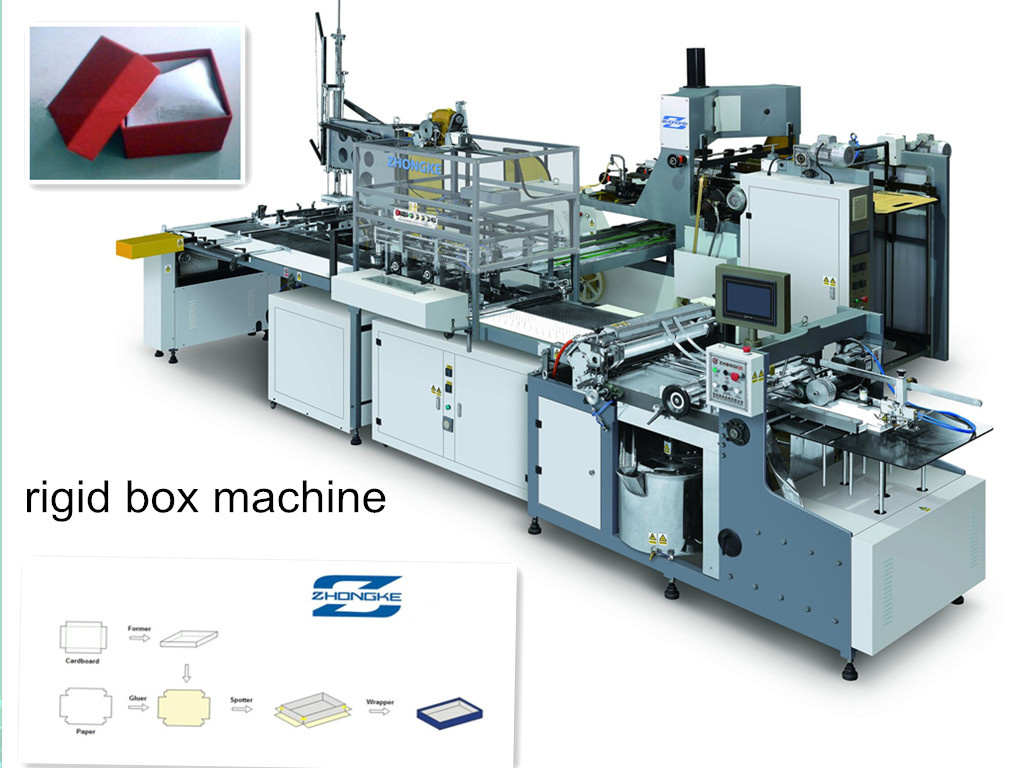

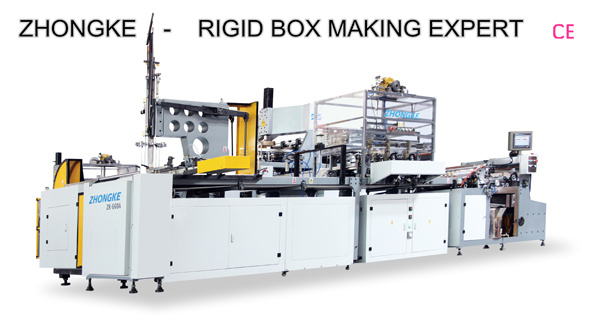

This production is the most advanced equipment of making the rigid set-up box (such as shoe-box, shirt box, underwear box, gift box, food box, hardware box etc). It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping, box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times.
Main Characteristics:
1. Feeding system feeds the paper wrap piece by piece automatically.
2. Equipped with heat exchanging Gluing system.
3. Heat Sealed device equipped achieves corner sticking for cardboard in one process.
4. Spotter system achieves exactly position for unwrapped box and glued wrap by servomotor and vacuum suction belt conveyor, with precision error 0.5mm.
5. Automatic arm guiding device is between conveyor belt and Wrapper unit, who is controlled by computer.
6. Wrapper unit achieves box-feeding, side-winding, roll-folding and rolling over.
7. It adopts PLC programmable controller, photoelectric tracing system and touch-sensitive screen. The wrapped box is finished in one process.
8. Automatic trouble diagnosing.
| Box size |
Lmin |
125mm | Speed | 1500(Cycle/h) |
Lmax |
400mm | Paper pile height | 260mm |
Wmin |
85mm | Cardboard pile height | 1000mm |
Wmax |
300mm | Electrical power | 20kw |
Hmin |
20mm | Glue tank capacity | 45(Litre) |
Hmax |
125mm | Air supply | 12(Litre/min) |
Folding Edge Range:R |
Rmin |
12mm | Net weight | 8000kg |
Rmax |
35mm | Machine overall dimension | L6.8XW3.5XH2.6m |
Zhongke Packaging Machinery Co., Ltd. Was established in 2002. It is the first leading enterprise in China to independently develop and create a series of automatic rigid box making machines. Founded the two major brands of "ZHONGKE" and "HEWANG Box King"The company took the lead of this industry in passing the international quality system ISO9001 certification, environmental protection system ISO14001 certification, Safety system ISO18000 certification, EU CE safety system certification, intellectual property management system GB/T29490-2013 certification. Zhongke covering an area of 100, 000. It is a private economic entity integrating independent research and development, design, production, sales and service. On the basis of drawing on the advanced technology of similar foreign products.
After 20 years of development, the company has established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 60 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry
Zhongkenese welcome the domestic and foreign merchants to visit us with investigation, negotiation and ordering!
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 158
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 1~3 People
Export Year: 2006-09-09
Export Percentage: 31%~40%
Main Markets: North America, Europe, Southeast Asia/ Mideast
Export Mode: Have Own Export License
Factory Address: 301#, Wanxiang Rd., Light Industry Base, Wanquan, Pingyang County, Wenzhou City, Zhejiang Pro., China
R&D Capacity: OEM
No. of R&D Staff: 11-20 People
No. of Production Lines: Above 10
Annual Output Value: Above US$100 Million
