Product Specifications
| Prod Model: |
TP-M30R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stable Product Speed: |
20 Bundles/Min |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Type: |

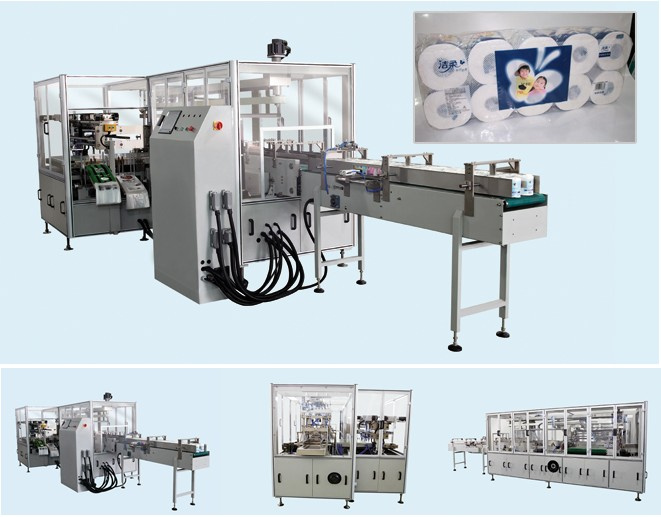

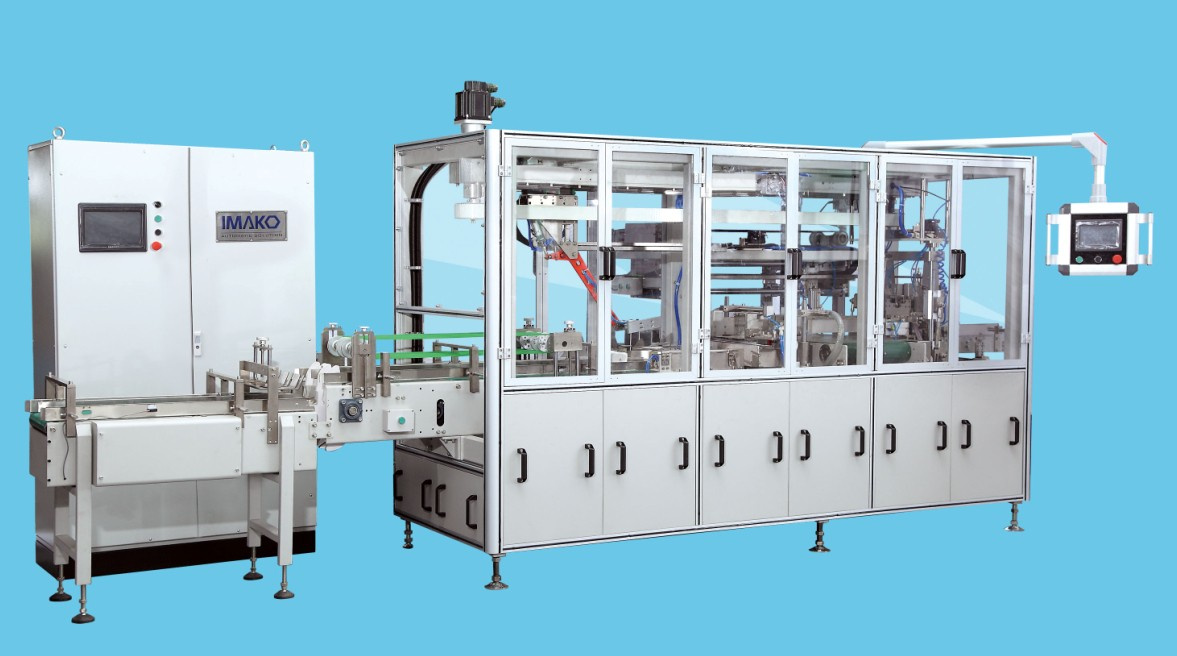

Automatic Wrapping Machine |
Product Description
Technical Specification
General specification DescriptionMarks
Scope of application Single pack tissue already wrapped by film Premade bag
Infeed type ASF Full automaticDouble infeed lanes
Bundle type 1X3, 1X4, 1X5, 2X3, 2X4
Design speed 30 bundle/min
Product speed ≤ 27 bundle/min
Film supporting part Suspension, two
Bag storing capacity ≤ 600 PCS
Bag length 120 - 600 mmNot include handle part
Bag width 240 - 420 mm
Bag height 90 - 115 mm
Single pack dimension (120 - 210 )*(90 - 105 )*( 40- 100) mm (L*W*H)
Machine size 6080 * 2250 *1750 mm(L*W*H)
Machine weight 3000KG
Bag material CPP, PE
Air pressurePressure ≥ 0.6 MPA flow rate≥ 60 L/minCustomer offer
Power supply 380V/50HZ
Total motor power 9.2 KW
Heat power 1.2 KW Sealing power
Voltage variation +/-10%National Standard
I/O input(VDC) 24VDC
I/O output(VDC) 24VDC
Machine movement control system Servo and shaft location control
Machine main drive pattern Electric cam
Machine color and artsInternational color RAL 7032, Electrostatic spraying paint process
Packing style PE film prefab bags with vent holesVent hole=2.5mm
IMAKO is a professional designer and manufacture, specialized in household paper packing machine. We provide whole perfect solution for tissue factory from feeding, distributing, solo wrapping to multi packing
We focus on household paper industry with professional and global view. Precise and doing concrete matters is our work style. Ebullient and responsible is our work attitude. We are your reliable and trustworthy partner.
Warmly welcome you visit our factory!
