Automatic Scraper Filters for Chemicals, Paiting, Paper
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Industrial filters
Chemical Filters
Automatic filters
Automatic Self cleaning filters
Industry filters
Industrial scraper filters

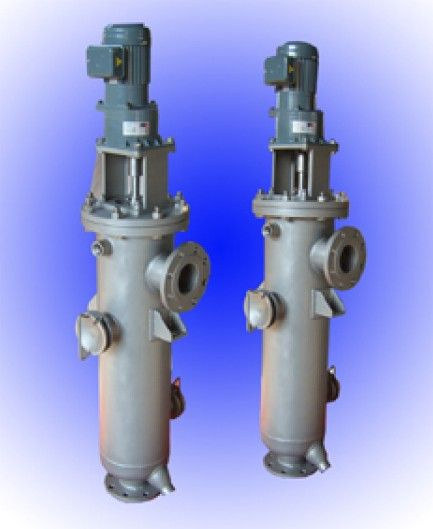

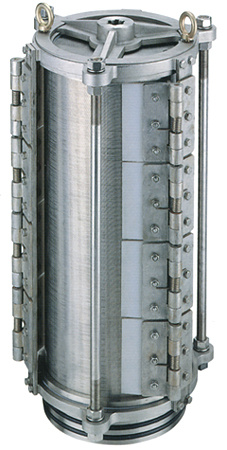

Automatic Scraper Strainer is a motorized unit designed for the continuous removal of suspended solids from intake, process and wastewater flows.To treat the heavy solids loading with particles as small as 25 microns and as large as 150mm (6 inches stones).Our strainers have been installed on applications where backwash strainers have suffered premature clogging, such as black liquor, heavy oils, wax, unprotected river water intakes and boiler waste slurries.Cleaning is accomplished by a spring-loaded blade and brush system managed by a fully automatic control system.The blades remove larger solids while the brush clean out the individual slots of the wedgewire filtration element, removing smaller particles.The spring-loaded mechanism maintains blade and brush contact with the screen at all times.A separate blowdown timer allows the accumulated solids to be expelled from the bottom of the strainer vessel where they are collected during the scraping cycle.Having a separate blowdown cycle allows our scraper strainer to use far less fluid for cleaning than competing backwash designs.
The FLOURISH barnd Scraper strainers are available in sizes 2 inches through 36 inches in fabricated construction using carbon steel, stainless steel and assorted alloys.All strainer vessels are designed and built in general accordance with ANSI and ASME Sec.VIII, Div.1.Nozzle arrangements can be offset (standard), in-line at the top and at the bottom of the vessel.
Typical Applications Automatic Scraper Strainers are used in nearly every industry to strain river, lake or seawater intakes for plant cooling water, fire protection and process requirements.Process Industry to Protect heat exchangers, pumps, valves and water spray nozzles.Power Industry to Protect heat exchangers, pump seal water, boiler wash water nozzles.Pulp & Paper industry for White water and black liquor filtration.Wastewater Treatment - Straining secondary effluent to protect spray nozzles and provide plant service water.Metal and Mining Industries - Provide clean water for quenching, de-scaling, blast furnace cooling.Method of Operation
HC Flourish Industry Group Co., Ltd., established in 1998, specializes in water treatment and waste water tretment equipments msnufacturing and sale and developtment, including sludge treatment equipment such screw press sludge dewatering machine, belt press or belt sludge thickener, sludge scraper for seidmentation tank, dissolved air flotation, lamella settler tank system, dosing station, mechanical screeen, sludge scraper, waster water treatment plant, sand trap, screw conveyor submersilbe mixer, aerators, sewage treatment plants system, screw compactors, screw conveyors, sludge thickeners, sludge scprapers, mechanical screen, sand -water seperators, rotating drum screens, sludge scrapers, waste water clariffiers for sedimentation tank, municiple waste water treatment, river water treatment, animal manures dewatering, and any waste water treatment, autmatic water filters, rotary drum filters, drum screens, bar screens and so on. With great efforts of over 20 years, our products has improved and reached the international level and have been exported abroad for amore than 22 years.
According to different treatment targets or purposes, there are two major categories of water treatment and wastewater treatment. Water treatment includes domestic drinking water treatment and industrial water treatment. Wastewater treatment is divided into domestic sewage treatment and industrial wastewater treatment. Among them, the boiler water supply, supply water treatment, steam turbine main condensate treatment, and circulating water treatment are particularly closely related to thermal engineering. Water treatment is of great significance to the development of industrial production, improvement of product quality, protection of the human environment, and maintenance of ecological balance.
Business philosophy
Polymerization, creating unlimited
Promote scale efficiency, enhance management and control, enhance core competitiveness, create competitive advantages in building industrial characteristics, realize social value in development and growth, and truly make China's energy-saving construction a trustworthy, socially praised and supported staff, and employees are satisfied with the satisfaction of SASAC. Central enterprises.
Entrepreneurial spirit
Corporate Values: Excellence, Focus, Innovation, Win-Win
Three corporate spirits: Innovative spirit, fighting spirit, and dedication.
Three kinds of corporate awareness: Responsibility awareness, awareness of danger, overall awareness.
We specialize in water treatment and devote ourself to development and supply the premium productc for our various industry.
We sincerely wish to cooperate with your esteemed company on behalf of HC Flourish Industry Group Co., Ltd. We share the Gold member in Made in China, if you inquire about filters and water equipments, sludge treatment equipment, power generation equipments and so on, please contact us.
Business Type: Manufacturer/Factory,Trading Company
Management System Certification: ISO 9001
International Commercial Terms: FOB, CFR, CIF
Terms of Payment: LC, T/T, D/P
Average Lead Time: Peak season lead time: 1-3 monthsOff season lead time: one month
Number of Foreign Trading Staff: 4~10 People
Export Year: 2006-01-01
Export Percentage: 71%~90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Factory Address: Room 142, Building 1, Zone 8, Xiaoheshan Xinyuan, Xihu District, Xiaohangzhou, Zhejiang Province
R&D Capacity: OEM, ODM, Own Brand(FLOURISH)
No. of R&D Staff: Above 50 People
No. of Production Lines: 5
Annual Output Value: US$50 Million - US$100 Million
