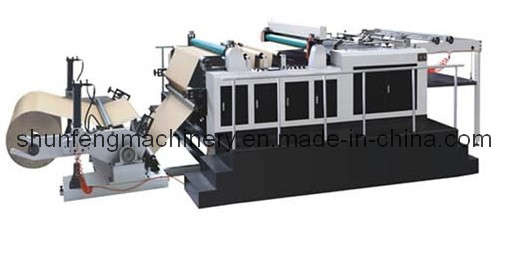

Automatic Sheet Cutting Machine / Cross Cutting Machine
Automatic Sheeting Machine / Cross Cutting Machine (BTJD Series)
/Servo drive-Computer Control High Precision Horizontal Cutting Machine
Main introduction:
This machine is suitable for material in roll to lengthwise and transverse cutting. For example: Golden and silver paperboard, plain rainbow paper, place able laser bogus-prevented paper, white cardboard paper and plastic slice material etc.
Its electrical part is composed of industrial control computer that comes up to international advanced level, 5.5'' color digital display, imported frequency converter, photoelectric sensor, Japanese Yaskawa Brand A. C. Servomotor and driver, etc.
With advanced control mode, this machine centrally controls the speeds of the main motor, servomotor and feeding motor through computer so as to achieve the purpose of synchronous operation. It has such characteristics as high-precision cutting, high speed, convenient for taking material up, etc.
Model |
1600 |
1450 |
1300 |
1100 |
Max.Diameter of paper roll |
1650mm |
1650mm |
1650mm |
1650mm |
Width scope of paper roll |
450-1600mm |
450-1450mm |
450-1300mm |
450-1100mm |
Length scope of Horizontal cutting |
300-1400mm |
300-1400mm |
300-1400mm |
300-1400mm |
Speed of machine |
120cuts/min |
120cuts/min |
120cuts/min |
120cuts/min |
Horizontal cutting Precision |
+- 0.2mm |
+- 0.2mm |
+- 0.2mm |
+- 0.2mm |
Memory Paper altitude |
1200mm |
1200mm |
1200mm |
1200mm |
Weight of Machine |
8200kg |
7800kg |
7500kg |
7200kg |
Total Power |
16kw |
15kw |
15kw |
15kw |
Speed |
80m/min |
80m/min |
80m/min |
80m/min |
Ruian Shunfeng Packaging Machinery Company was founded in 1995, located in Zhejiang Ruian city. On the base of plastic packaging machines of China. It has a long historical standing and a large scale and specializing in plastic packaging machines and equipments.
We are engaged in manufacturing Complete sets of plastic packaging machines and equipments such as Film Blowing Machine, Co-extrusion Film Blowing Machine; Rotogravure Printing Machine or Flexographic Printing Machine; Bag-making Machine, Non Woven Bag Making Machine; Paper Bag Making Machine; Recycle Machine; Laminating Machine; Slitting and Rewinding Machine; Air Bubble Film Machine; Stretching Cling Film Machine, Laminating and Coating Machine, Label Printing Machine; Self-adhesive Label Die Cutting and Slitting Machine. Our products sell well at home and widely exported to lots of countries and regions. And they are favoured by domestic and oversea customers all along.
The products in our factory has passed ISO9001 certification and CE Certification. And Shunfeng enterprise has been awarded the honor of high-new technology enterprise, administrati- on example enterprise.
In the ten years, based on the enterprise theory of "Seeking existence through quality, seeking market through honesty and development through technology. " We pay attention to customers' needs, reinforce product research and development and perfect after-sale service. We insist on "Shunfeng can not develop without customers' success. "
We sincerely welcome the guests from home and abroad to visit for creating a brilliant future together.
