Automatic Single Side PE Paper Cup Forming Machine

Name: Automatic Single Side PE Paper Cup Forming Machine
Brand: China-Manufacturer-Directory.com
SKU: 687178452
Availability: InStock
Rating: 4.7 (82 reviews)

Supplier:	Ruian Yitong Trading Co., Ltd.
Price:	US $ 7200-7800set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SZB/W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	45 PCS/Min
Cup Size:	3-12 Oz and Other Size
Power:	4.5kw
Warranty:	One Year, We Provide Accessories of The Main Parts
Leading Time:	20~25 Working Days After Receipt Deposit
Process:	Paper Machine
Usage:	Packing Paper Machine~@~Household Paper Machine~@~
Type:	Paper Folding Machine
Automatic Grade:	Automatic
Computerized:	Yes
Certification:	ISO

Product Description

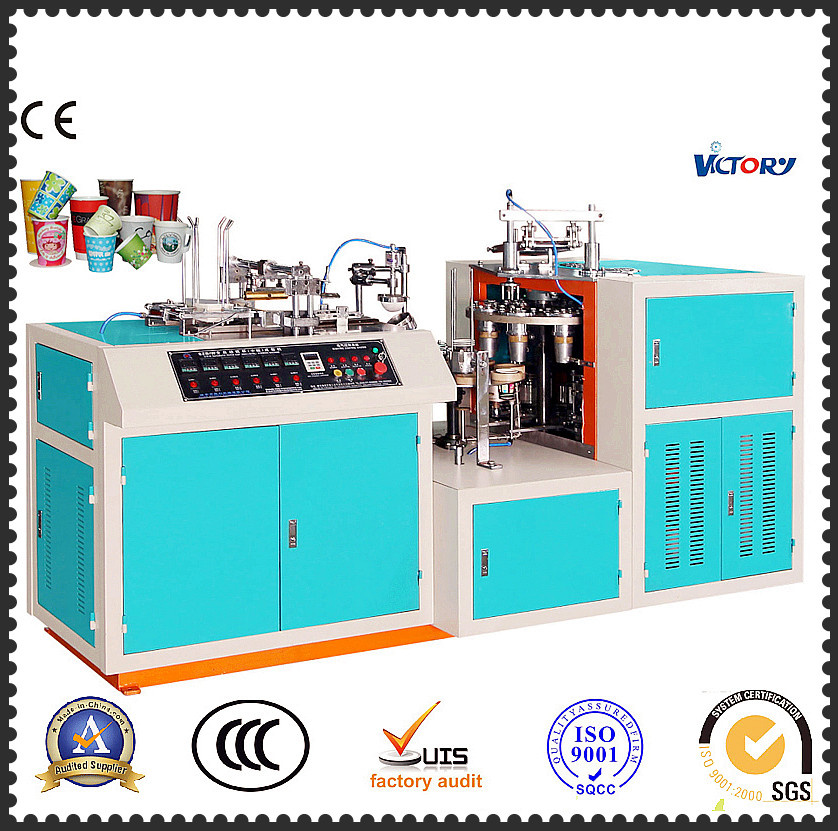

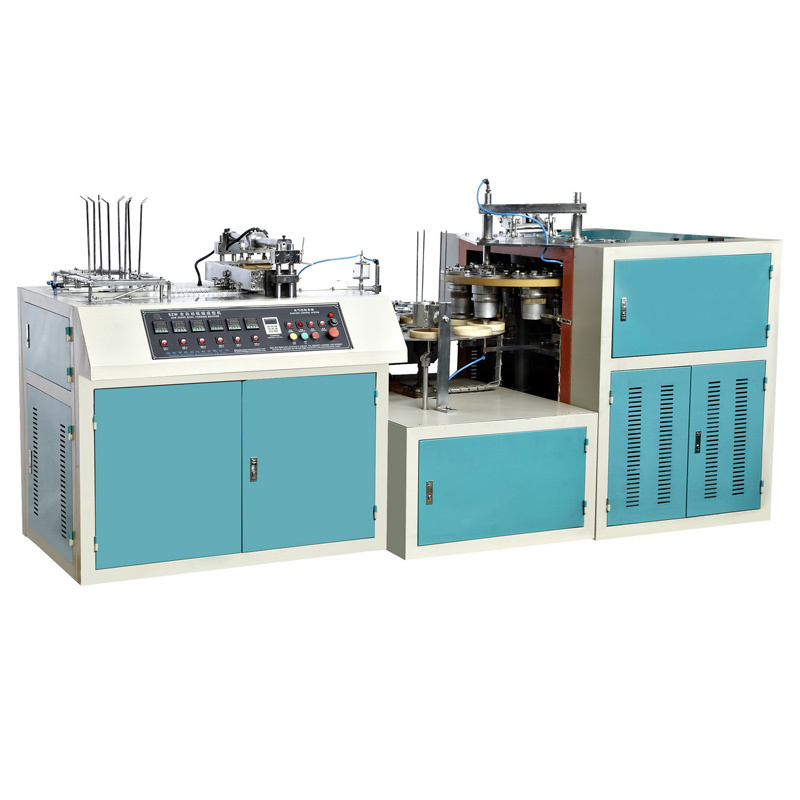

SZB/W Single Side PE Paper Cup Forming Machine

Remark:
(A) Stand for Top Diameter
(B) Stand for Height
(C) Stand for Bottom Diameter
(D) Stand for Knurling Parts

MACHINE DESCRIPTION
SZB/W Single PE coated paper cup machine is a automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding , cup-fan-wall sealing, oiling, bottom punching, heating, knuring,curling, cup discharge and cup counter.

MAIN TECHNICAL PARAMETER

Model	SZB/W-9	SZB/W-12	SZB/W-18(Special model)	SZB/W-32(Special model)
Production capacity	45-55PCS/min	40-50PCS/min	35-45PCS/min	30-40PCS/min
Required paper	150-320gsm Single Side PE Paper	150-320gsm Single Side PE Paper	150-320gsm Single Side PE Paper	150-320gsm Single Side PE Paper
Cup's Range	(A) 50 -80MM ,(B)35-90MM (C) 35-55MM , (D)4 -10 MM	(A) 50 -90MM ,(B)35-115MM (C) 35-70MM , (D)5 -10 MM	(A) 60 -128MM ,(B)80 -140MM (C) 50 -75MM , (D)5 -10 MM	(A) 60 -128MM ,(B)80 -180MM (C) 50 -75MM , (D)5 -10 MM
Total power	220/380V 50/60HZ 4.5KW
Weight	1400kg	1500 kg	1700kg	1850kg
Overall dimensions (LWH)	25001300 1700mm	26501300 1700mm	28501300 1900mm	30001400 2000mm

Rui An YiTong Trading Co., Ltd. is located in Jiangnan Industrial Development Zone, Rui'an City, Zhejiang Province, China. Established in 2009, our company mainly engaged in various types of machinery and equipment like paper cup machine, paper bowl machine, sealing machine, paper plate machine etc. In recent years, we keep cooperating with many national print, paper suppliers, and other equipment factories. Besides a series of technical equipment, we can also provide raw material for paper, which will be produced for cup by our advanced equipment and strong technical force. Our products have passed ISO9001 and CE test. Welcome your inquiry.
