Automatic Spiral Paper Core Rolling Machine

Product Specifications

Prod Model:	JT-200A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Kraft Paper
Usage Core Winding:	Core Winding
Computer System:	PLC Control System
Touch Screen:	Hightech From Taiwan
Cutting Blade:	Single Disc Cutting Balde
Double Side Glue Coating Devices:	Yes
Photocell:	Double
Paper Core Layer:	1-24 Layers
Paper Core Diameter:	50-300mm
Core Thickness:	1-15mm
Type:	Spiral Type
Gumming Type:	Double Side
Layers Of Roll Paper:	9 - 16
Reelpipe Speed:	12 - 18m/minute
Wall Thickness Of Paper Tube:	1 - 5mm
Certification:	CE

Product Description

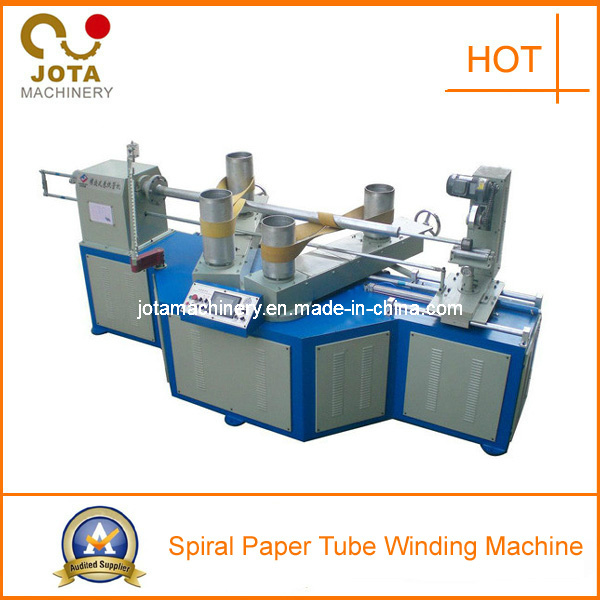

Spiral Paper Winding Machine

Specifications:

It adopts PLC control system and Highten touch screen, all the parameter are displayed on the monitor. Pre-set the parameters on the operation panel, it will start work automatically.

It adopts imported frequency inverter for AC motor control, the machine work will be more stable.

It adopts imported single disc cutter to cut the paper core, it is high precision, and more bearable no longer incision more precision without wasting.

It adopts double side glue coating devices, the paper core is more sticky and stronger.

It adopts double photocell for the paper core length tracking, after get to the setup length, the paper core shall be cut off.

Model Type	JT-200A
Paper Core Layer	1-24 layers
Paper Core Diameter	50-300mm
Paper Core Thickness	1-15mm
Paper Core Length	500-5000mm
Max. Machine Speed	20m/min
