Product Specifications
| Prod Model: |
JQX-62F 2Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Current: |
80A |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
High Power |
| Contact Form: |
2A, 2b, 2c |
Product Description

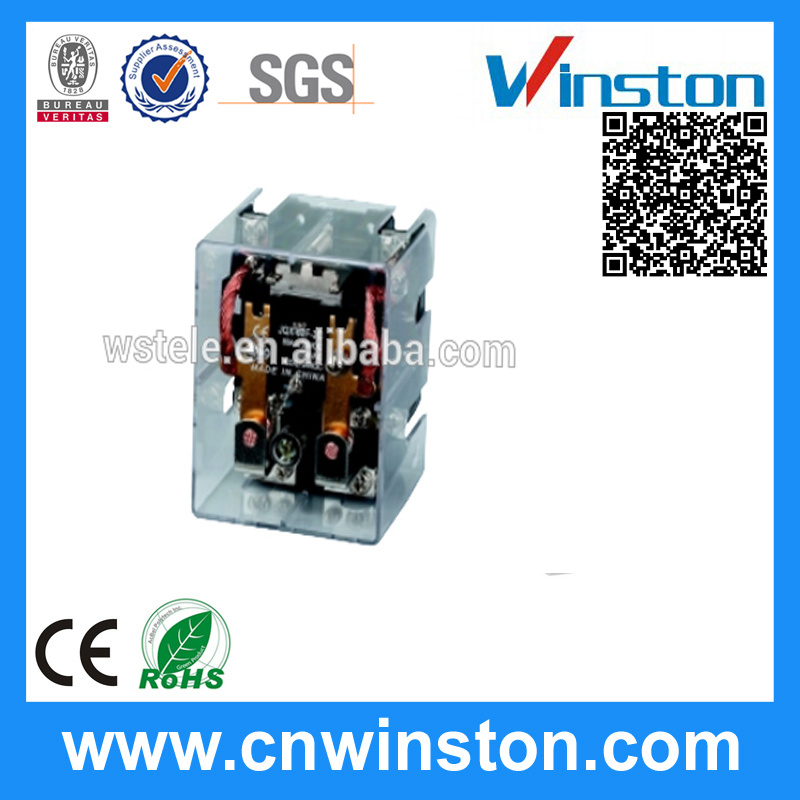

JQX-62F2Z Power Relay, big power relay, electromagnetic relay
1. Contact capacity: 80A 120A 250VAC
2. Coil Power: DC2.0W AC2.5VA
| Contact Ratings | 1Z, 1H, 1D 2Z, 2H, 2D |
| Contact Resistance | 30mΩ (1A 6VDC) |
| Contact capacity | 80A 120A 250VAC 2HP 250VAC |
| Insulation Resistance | 1000MΩ 500VDC |
| Dielectric Strength | BCC 2500VAC 1minute |
| BOC 1200VAC 1minute |
| Operate Time | 25ms / 25ms |
| Terminal Type |
|
| Nominal Coil Power | DC2.0W AC2.5VA |
| Nominal Voltage VDC | Pull-in Voltage
VDC | Release Voltage
VDC | Coil ResistanceΩ : ± 10% | | 6 | 4.20 | 0.60 | 18 | | 12 | 8.40 | 1.20 | 70 | | 24 | 16.8 | 2.40 | 290 | | 48 | 33.6 | 4.80 | 1152 | | 60 | 42.0 | 6.00 | 2800 | | 110 | 88.0 | 11.0 | 9650 |
|
| | Nominal Voltage VAC | Pull-in Voltage
VDC | Release Voltage
VDC | Coil ResistanceΩ : ± 10% | | 6 | 4.80 | 1.80 | 9 | | 12 | 9.60 | 3.60 | 36 | | 24 | 19.20 | 7.20 | 144 | | 48 | 38.40 | 14.40 | 576 | | 110 | 88.00 | 36.00 | 3500 | | 220/240 | 176.00 | 72.00 | 12000/14400 |
|
