Yueqing Winston Electric Co., Ltd. >> Days Hours Minutes Seconds Countdown Digital Time Relay with CE

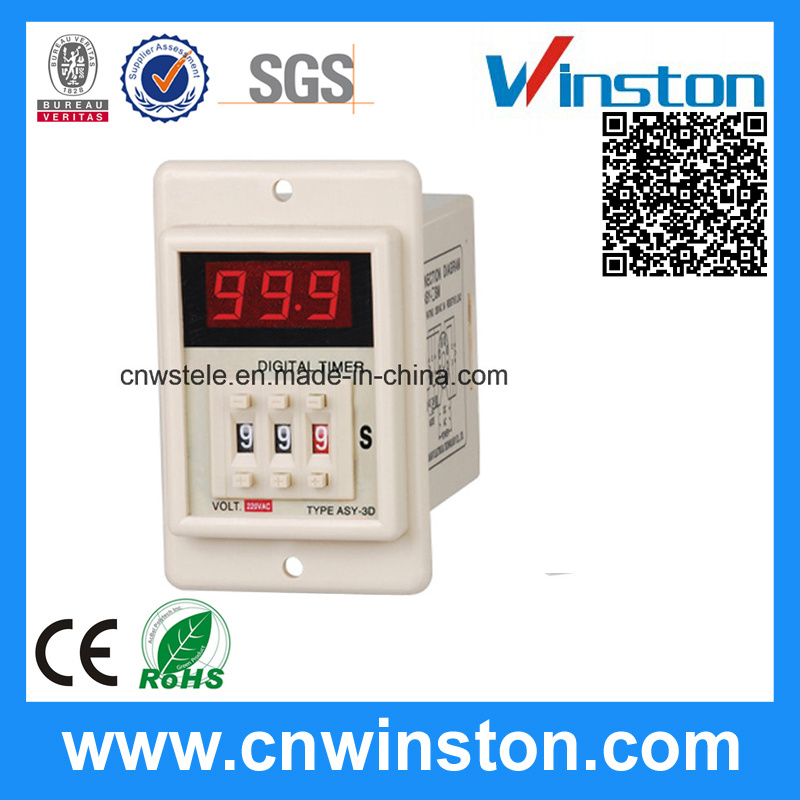

Days Hours Minutes Seconds Countdown Digital Time Relay with CE

Name: Days Hours Minutes Seconds Countdown Digital Time Relay with CE
Brand: china-manufacturer-directory.com
SKU: 672510082
Availability: InStock
Rating: 4.4 (30 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 6.5-8.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ASY-2D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Brand:	Winston
Consumed Power:	3va
Weight:	230g
Reset Time:	0.3 Sec Max
Manufacturer:	OEM
Condition:	Original New
Dimensions(mm):	88h 58W 68d
Ambient Huminity:	48~85%Rh
Ambient Temperature:	-10~+55 Degree
Quality:	2 Year Warranty

Product Description

Features:
1) Types: ASY-2D, digital timer, 2 -digital
2) Contact capacity: 5A, 250V AC
3) Coil voltage:
A) DC: 12, 24V
B) AC: 12, 24, 48, 110, 220, 240V
4) Coil power: 3VA
5) Time range:
A) ASY-2D: 9.9s, 99s, 9.9min, 99min, 9.9h, 99h
B) ASY-3D: 9.99s, 99.9s, 999s, 9.99min, 99.9in, 999min, 9.99h, 99.9h, 999h
6) Electrical life: 100, 000 times
7) Mechanical life: 5, 000, 000 times
8) Operating temperature: -40 - +50° C
9) Repeat error: ± 0.05%
10) Temperature error: ± 0.05%
11) Voltage error: ± 0.05%
12) Reset time: 0.3s

Specification

Classification			Digital Timer	Digital Timer
Specification Model			ASY-2D	ASY-3D
Dimension			88H × 58W × 68D	88H × 58W × 68D
Mounting & Socket		Surface(-N)	PF083A	PF083A
		Flush(-Y)	US-08 P3G-08	US-08 P3G-08
Full Timing Range			SEC: 9.9,99 MIN: 9.9,99 HR: 9.9,99	SEC: 9.99,99.9,999 MIN: 99.9,999 HR: 99.9,999
Rated Voltage (V)			AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating			After contact transfer	After contact transfer
O/P Contact	Model		ASY-2D	ASY-3D
	Time Limit 1C
	Time Limit 2C		5A	5A
	Instantaneous 1C
Life	Mechanical		5 × 106 Times	5 × 106 Times
	Electrical		105 Times	105 Times
Accuracy	Repeat Error		±0.05% max	±0.05% max
	Setting Error		0	0
	Voltage Error		±0.05 Sec	±0.05 Sec
	Temp Error		±0.05 Sec	±0.05 Sec
Reset Time			0.3 sec max	0.3 sec max
Consumed Power			5VA	5VA
Ambient temperature			-10oC~+55oC	-10oC~+55oC
Ambient Huminity			48~85% RH	48~85% RH
Weight			230g	230g
