Product Specifications
| Prod Model: |
DHC19-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe |
| Output: |
1 Form C(Spdt) 3A 250VAC 1/3HP |
| Connections: |
Silver Alloy |
| Mechanical Life: |
5,000,000 Operations. |
| Repeat Accuracy: |
0.5% at Constant Ambient |
| Ambient Temperature: |
-10 to +60 |
| Classification: |
VDE0110 Group C |
| Mounting: |
Directly at DIN Rail. |
| Weight: |
Approx. 72g |
| Indications: |
Green and Red LED |
| Number Of Pole: |
1 |
| Size: |
Miniature |
| Theory: |
Time Relay |
| Type: |
Electric Parameter Relay |
| Usage: |
Communication Relay |
| Electricity Type: |
AC |
| Phase: |
3 |
Product Description

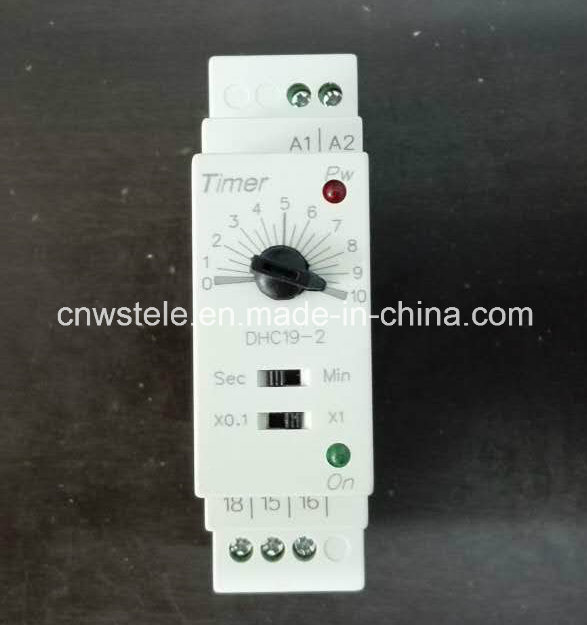

DHC19 is a delay on/delay off make timer
With a versatile supply voltage compatibility
Timing range is controlled with 2-state switch on the front panel
The relay drops out and the timer resets automatically if the supply voltage is removed
Dimensions:85*60*66mm
Technical data:
Output:1FORM C (SPDT)3A 250VAC 1/3HP
Supply tolerance:0.85 to 1.1Un
Mechanical life:5million operations
Connections:
Silver alloy.Terminal shrouded to prevent human contact 4mm2
Repeat accuracy:0.5% at constant ambient
Ambient temperature:
Operation:-10~60
Storage:-20~70
Classification:VDE0110 Group C
Mounting:Directly at din rail
Status indicators:Green LED-Supply voltage
Red LED-State of the relay
Weight:72g
