Product Specifications
| Prod Model: |
ANSS157040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Total Power: |
17.3kw |
| Wall Panel: |
60mm, Imported CSR Rock Wool Insulated Material |
| Outside Size(L*W*H)Mm: |
7000*5350*3450 |
| Inside Size(L*W*H)Mm: |
6880*3880*2750 |
| Main Door Size(W*H)Mm: |
3000*2700 |
| Personal Door(W*H)Mm: |
600*1750 |
| Full Air Speed: |
Not Less Than 0.35m/S |
| Air Exchange Rate: |
320time/H |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CE |
| Condition: |
New |
Product Description

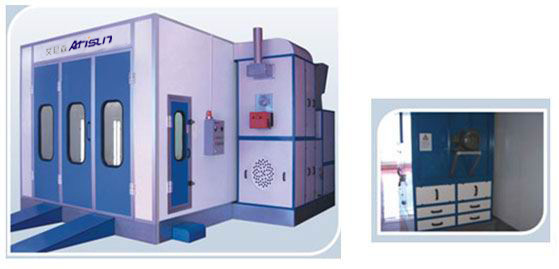

Automobile Maintenance Spraying/Baking Booth
Outside size(L*W*H)mm 7000*5350*3450
Inside size(L*W*H)mm 6880*3880*2750
Main door size(W*H)mm 3000*2700
Personal door(W*H)mm 600*1750
Total power(KW) 17.3
Wall panel: 60mm, imported CSR rock wool insulated material, with rebar inside, solid structure, strong flame-retardant, good
Insulated and not easy to deformable when handling or assembling.
Basement: Environmental galvanized steel, fixed by anti-rust pipes(40*80), high strength, beautiful, durable, equiped with 3 rows of
Galvanized floor grids, 2 rows of anti-skid plate
Ramp: Anti-skid board
1*7.5kw turbo fan for air-intake, capacity: 25000m3/h, 1*7.5kw turbo fan for air-exhaust, capacity: 25000m3/h, low noise, big air
Capacity, power-saving
Two 20N automatic damper actuator to ensure the room circulation, one is fix on the upper of exhaust door to adjust the air capacity
Work area board: Painted
Full air speed: Not less than 0.35m/s; Air exchange rate: 320time/h; Noise not more than 80dB(a)
Two filter layer structures: Crude and refined filter. Crude filter: Domestic high quality nonwoven cotton, can catch the dust
Larger than 10μ M, fixed on the vent door of work area, there is an adjustalbe door for its replacing. Refined filter: BAOCHI600G
High quality filter cotton made by customization, multi-layers, dust capacity: Not less than 420G/M^2, fixed on the bottom of
Plenum, supported by coated top net, beautiful and easy to replace. The whole filter system has a big dust capacity, low
Windage, long-use, the filter rate is more than 98%, TSP not more than 1.4mg/m^3.
A bird preventing net on the air inlet door, drawer-type device which can? Avoid paint on fans
The main parts are brand at home or abroad for spray booth. Stable, reliable, convenient and accurate system, multi-protection
Circuit, can automatically display all the work process and the fault condition.
Light switch, temperature time setting, normal spraying, risen-temper spraying, baking, emergency stop, failure alarm, over
Temperature alarming, hour meter, the whole working process can be set in a time
Use 7.5KW turbo fan, multi-layers paint filter device and active carbon filter device, reach the national standard(Integrated
Emission standard fo air pollutants).
Guangzhou Anisun Automotive Testing Equipment Co., Ltd. was founded in 2003. It is restructured by Chinese American Mr. Oliver Investment and Anisun in 2007, and set up a joint venture company in Guangzhou. We are researching and manufacturing vehicle testing equipment and testing controlling management system. Our main products includes computer wheel alignment, automobile chassis dynamometer, automobile brake tester, axle loading tester, side sliding tester, speedometer tester, suspension vibration tester, torque angle indicator, wheel partial tester, and so on. We are also sales agents for automobile testing equipments: Light detectors, gas analyzers, opacity smoke meters and other equipment.
Our factory is located in Jiangsu province; its area is more than 12000 square meter. It consists raw-materials workshop, finish machining workshop, welding workshop, treatment workshop, painting/baking workshop, assembling workshop, electrical and electronic controlling production workshop, and testing equipment workshop. We have special R& D department with a group of professional and technical staff.
