Product Specifications
| Prod Model: |
15B~100B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304 |
Product Description
Main Application :

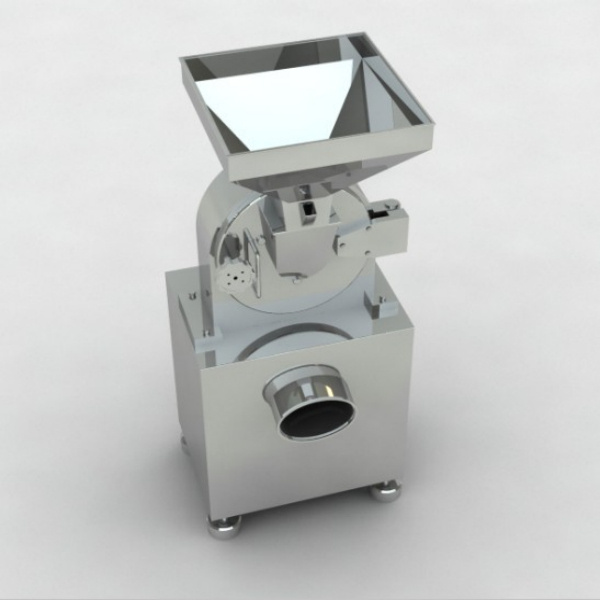

This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc..
Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. Designed according to "GMP" standard and wholly made of stainless steel, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment present.
|
Model |
Production Capacity |
Feeding Size |
Crushing Fineness |
Spindle Speed |
Motor Power |
overall dimension |
weight |
|
15BIV.V.VI |
10-50kg/h |
6mm |
20-120mesh |
6000r/min |
2.2kw |
550*400*850mm |
100kg |
|
20BIV.V.VI |
60-150kg/h |
6mm |
20-120mesh |
4500r/min |
4kw |
550*600*1250mm |
280kg |
|
30BIV.V.VI |
100-400kg/h |
6mm |
20-120mesh |
3800r/min |
5.5kw |
600*700*1450mm |
350kg |
|
40BIV.V.VI |
160-1000kg/h |
10mm |
20-120mesh |
3400r/min |
11kw |
800*900*1550mm |
550kg |
|
60BIV.V.VI |
500-2000kg/h |
12mm |
20-120mesh |
2800r/min |
18.5kw |
900*900*1880mm |
680kg |
|
80BIV.V.VI |
1000-5000kg/h |
12mm |
20-120mesh |
2000r/min |
37kw |
1100*950*1960mm |
1500kg |
|
100BIV.V.VI |
2000-8000kg/h |
12mm |
20-120mesh |
1500r/min |
55kw |
1350*1000*2100mm |
2500kg |
(P.S.:IV-mild steel,V-stainless steel,VI-stainles steel with water cooler)
|
