Product Specifications
| Prod Model: |
15B ~ 40B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304 |
Product Description
Main application:

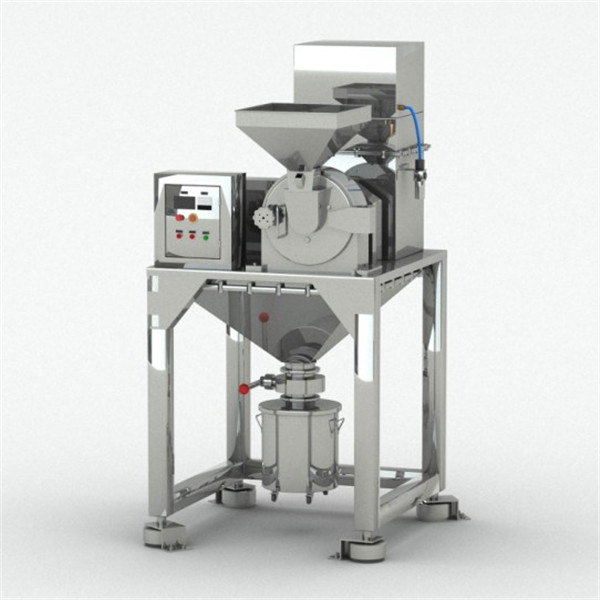

Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation crushing equipment combining crushing and dust collection as a whole .
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the air cylinder is controlled by the pulse to shake the catcher, thus the dust collected by the catcher can fall to the bin automatically. Designed according to the new "GMP" standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
|
Model |
Production Capacity |
Spindle speed |
Feeding Size |
Crushing Fineness |
Crushing Motor |
Dust collecting motor |
overall dimension |
|
15BIV.V.VI |
10-50kg/h |
6000r/min |
6mm |
20-120mesh |
2.2kw |
0.55kw |
950*450*1550mm |
|
20BIV.V.VI |
60-150kg/h |
4500r/min |
6mm |
20-120mesh |
4kw |
1.5kw |
1120*600*1750mm |
|
30BIV.V.VI |
100-400kg/h |
3800r/min |
10mm |
20-120mesh |
5.5kw |
1.5kw |
1250*660*1750mm |
|
40BIV.V.VI |
160-1000kg/h |
3400r/min |
12mm |
20-120mesh |
11kw |
1.5kw |
1450*700*1750mm |
(P.S.:IV-mild steel,V-stainless steel,VI-stainles steel with water cooler)
|
As a member unit of China Pharmaceutical Equipment Trade Association and ISO90012000registered enterprise, our company has been awarded a qualified enterprise of quality test by National Quality Inspection Association, a national top 10 enterprise of satisfied product quality and aftersales service by China Technology Supervision Information Association and an enterprise of Jiangsu provincial famous enterprise and product of the new century.
Founded in 1992, the company has had strong scientific power, advanced techniques and complete equipment, with a space area of 13, 800 square meters and floor area of 5, 160 square meters. It is specialized in the production of pulverizer, screening machine, mixer, granulator, drier, conveyor, etc., which are widely used in pharmaceutical, foodstuff and chemical industries, etc.
