Product Specifications
| Prod Model: |
BPT-42T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Language: |
English / French / German / Danish / Spanish / Ja |
| Interface: |
USB. Parallel, Serial,Ethernet Interface Optional |
| Style: |
Black and White |
| Usage: |
Barcode Printer |
| Interface Type: |
RS-232 Serial ,Centronics Parallelusb, Optional |
| Type: |
Barcode Printer |
| Max. Paper Size: |
20-110mm |
Product Description

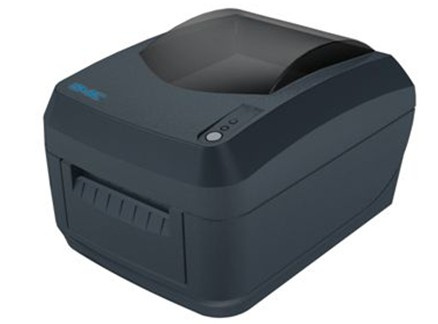

Barcode Printer Label printer label sticker printer
1) With CD software
2) Sticker width 20mm~110mm
3) Ribbon, no need ink
Barcode Printer, Label printer, label sticker printer,
1) With CD software
2) Sticker width 20mm~110mm
3) Ribbon, Need not ink
Specification:
Thermal barcode printer
Resolution8dots/mm203 DPI
Print width 104mm(Max. )
Print speed 75mm/s
Memory SRAM2MB
Main board: FLASH1MB
Extend memory: FLASH 8MB
Interface RS-232 serial, Centronics parallelUSB,
Optional
Print head temperature detector thermal resistor
Print head postion detectorjiaggle switch
Paper mark detector photo sensor
Ribbon entity detector photo sensor
Paper entity detector photo sensor
Barcode type:
Single-dimensional code UPC/EAN/JAN and Add-on 2/5, code 39, code 128, Coda bar,
ISBN, ISSN, China Postage, ITF2 of 5, MTX 2 of 5, IND 2 of 5, Code 11, Code93, Code IV, Code 32, MSI/Plessey, IATA, Code 14
Two-dimensional codePDF417, MAXICODE etc.
Print character: FONT0 ~ FONT8, ASD Smooth fontsCourier fonts
Character enlargeTransverse/portrait enlarge 1~ 8times
Character Rotation print: 0, 90, 180, 270 degree
Image: PCX, BMP, IMG and HEX etc. File download to FLASHSRAM
Paper type continuous, label, mark paper, punch tape, multilayer
Paper width: 110 mmMax.
Paper thickness 0.06-0.20mm
Roll out diameter127mm (Max. )
Roll inner diameter25/38mm
Ribbon inner diameter 12.5mm (Max. )
Ribbon longth91 mm
Power Input 110V~240V 50/60Hz, DC 24V, 1.5A(Average)
Power consume2.880A 203DPI
Work temperature: 5-45
Humidity 20-80%RH
Sotrage temperature: -40-55
Sotrage humidity ≤ 93%RH
ExternalDimension: (W× D× H)278 × 218× 185(mm)
Weightabout 2.3kg
FLASH 1MB/4MB /8MB optional
3C certification
