Product Specifications
| Prod Model: |
QBS-8400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
ABS+PC |
| Color: |
Black or White |
| Type: |
Laser Scanner |
| Usage: |
Barcode Scanner |
| Optical Resolution: |
600dpi |
| Scanning Element: |
Laser Scanner |
| Interface Type: |
Wireless Barcode Scanner |
| Kind: |
Gun Scanner |
Product Description
Wireless barcode scanner, barcode reader, memory 4M, Save Record, Upload record
Scan rate: 200 times/second

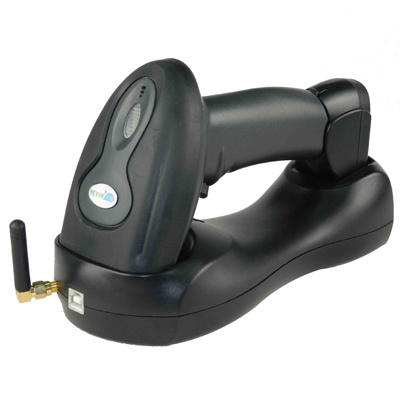

Wireless barcode scanner, barcode reader, memory 4M, Save Record, Upload record QBS-8400
Wireless barcode scanner, with recharge battery
1) Scan rate: 200 times/second
2) can Precision: 0.076mm(3 mil)
Wireless barcode scanner
1) The Battery can be easily taken from the scanner
2) Safety: Full Quakeproof, waterproof, dustproof, antiknock-design, and EMI shielding
3) Service life of button reaches up to 50 million times
4) Support multiple languages ( English, French, German)
5) Full independent intellectual property rights (Having been award with multiple national patents)
6) Light Source: Visible laser diode 650nm
7) Scan Pattern: Single scan & Manual
8) Working Frequency Range: 433MHz ISM frequency
9) Communication Distance: Up to 300M at open places
10) Scan rate: 200 times/second
11) Scan Precision: 0.076mm(3 mil)
12) Scan Width: 30mm@scan window, 220mm@200mm
13) Scan Depth of field: 10~800mm
14) Decode barcode: EAN-8, EAN-13, UPC-A, UPC-E, Code 39,
Code 93, Code 128, EAN128, Code bar, Industrial 2 of 5,
Interleave 2 of 5, Matrix 2 of 5, MSI, Full ASCII, Plessey, Databar 14, Telepe etc.
15) Scan Angel: Yaw (Skew) 45° , Pitch 60°
16) Support Interface: RS232, PS/2 and USB
17) Print Contrast: 30% UPC/EAN 100%
18) Mention Pattern: Buzzer, Indicator
19) Size: LXWXH: 183mm*75mm*106mm
20) Weight: 230g
21) Material: ABS+Rubber
22) Cable: Standard 2M straight
23) Battery: 900mAh
24) Voltage: 5Volts
25) Operating Current: 68mA
26) Static Current: 48mA
27) Laser Class: Meet the grade II national criteria for laser safety
28) Operation temperature: 0° C - 45° C
29) Storage temperature: -20° C-60° C
30) Operate humidity: 5%-85%, Storage humidity: 5%-95%
31) Light Levels: 4000 LUX
Shock: Designed to withstand 1.5M drops
