Product Specifications
| Prod Model: |
DLQD-DP201 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Dimension: |
1580*750*1700mm |
| Input Power: |
Single-Phase Three-Wire AC220V 50 Hz/60Hz |
| Training Content1: |
Pneumatic Control |
| Flow: |
Below 10L/Min |
| Capacity: |
<1kVA |
| Nominal Capacity: |
:10L |
Product Description

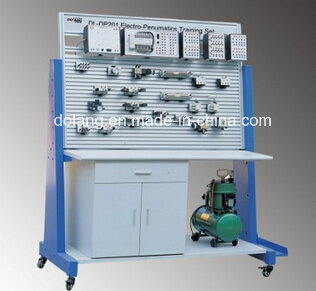

DLQD-DP201
Basic Electro Pneumatic Training Equipment
1. Components specification
1) The four truckle with crack slot in order to move and install on the work table. Due to the point and height of the panel is adjustable, convenient for efficient experiment. Panel grooves intervals are 25 mm, can easily move all kinds of components insert on it.
2) Various pneumatic components into separate module which is equipped with bottom panel of elastic pins, when training they can build all kinds of pneumatic circuits on general aluminum, fast loading and unloading, flexible layout, clear pneumatic circuit.
3) Use mute air compressor, low noise operation, provide good training environment for the training room.
4) Pneumatic circuits using fast connection, convenient student build pneumatic circuits rapidly. The electric control circuits adopt special training of with protection inner energy connect wires, students can design themselves pneumatic application system, can exercise the student's practical and thinking ability of theory combine with practice, has strong training.
\
2. Basic structure compose
Pneumatic control experiment table is composed of experiment table, experiment trestle, pneumatic components and electrical control components. Pneumatic components and object equipment: Air compressor, air filtering, reduce pressure, Oil mist triple, pressure relief valves, the manual reversing valves electromagnetic reversing valves, air control reversing valves, stroke valve, check valve, throttle valve, one-way throttle valve, quick exhaust valve, gate type shuttle valve, the single-acting cylinder, double-acting cylinder, rotation cylinder.
3. The experiment project type (can combine the hydraulic circuit and control system by oneself) Pneumatic basic control circuit experiment, l Single acting cylinder automatic control, l Double acting cylinder automatic control
