Product Specifications
| Prod Model: |
DLQD-DP101 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Dimension: |
1580*750*1700mm |
| Input Power: |
Single-Phase Three-Wire AC220V 50 Hz/60Hz |
| Training Content1: |
Pneumatic Control |
| Flow: |
Below 10L/Min |
| Capacity: |
<1kVA |
| Nominal Capacity: |
:10L |
Product Description
DLQD-DP101

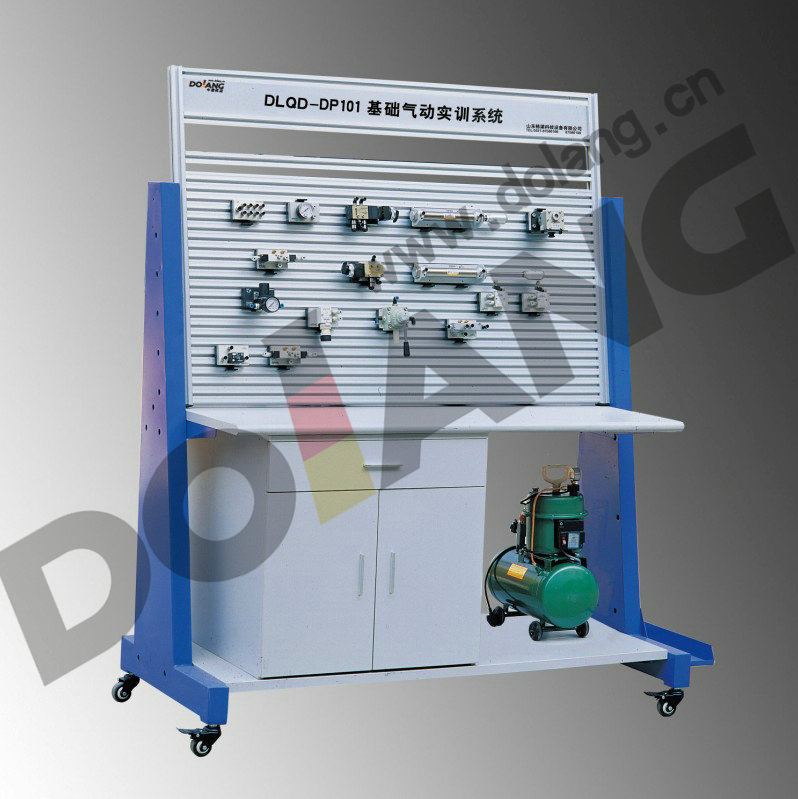

Basic Pneumatics Training Set
General
Various pneumatic components into separate module which is equipped with bottom panel of elastic pins, when training they can build all kinds of pneumatic circuits on general aluminum, fast loading and unloading, flexible layout, clear pneumatic circuit.
Use mute air compressor, low noise operation, provide good training environment for the training room.
The four truckle with crack slot in order to move and install on the work table. Due to the point and height of the panel is adjustable, convenient for efficient experiment. Panel grooves intervals are 25 mm, can easily move all kinds of components insert on it.
Pneumatic circuits using fast connection, convenient student build pneumatic circuits rapidly. The electric control circuits adopt special training of with protection inner energy connect wires, students can design themselves pneumatic application system, can exercise the student's practical and thinking ability of theory combine with practice, has strong training.
Technical Parameter
Dimension: 1580× 750× 1700mm
Input power: Single-phase three-wire AC220V 50 Hz/60Hz
Basic panel: 1200× 750mm
Flow: Below 10L/min
Capacity: <1KVA
Nominal capacity: 10L
Training Contents
Common pneumatic circuit
Structure, function and application of single acting cylinder, double acting cylinder
Common pneumatic work principle
Direct and indirect control
Common pneumatic, manual valve application and function
Direction control valve theory knowledge
Circuit analysis
Pressure measurement option
Pressure control system
Fluid control theory distinguish and application
Express and create circuit
Logic Operate: Express and fulfill and/or/not operate
Combination logic application
Limit switch function and application
Time delay valve function and application
Safety protection step
Students expand design experiment by themselves(more than 30 experiments)
