Introduction

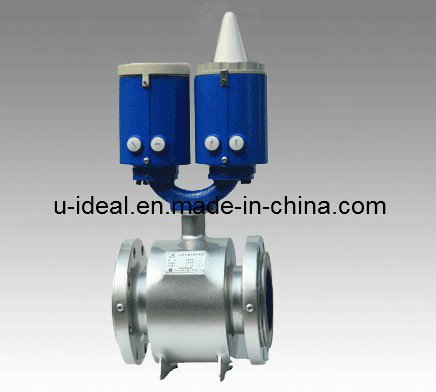

Battery-powered electromagnetic flowmeter is designed for water industry. In order to meet the urban water supply and accurate calculations, it is widely used in places without power supply, like industries of urban water supply, sewage treatment, water conservancy, etc. Its special design of the sensor excitation system and high-performance lithium battery power supply system adopt 16-bit embedded processor with micro-power consumption. It has the features of digital quantity signal processing, stability, high accuracy and strong anti-interference ability, etc. So it can realize automatic two-way flow measurement, measurement of field transient flow, and display of the positive and negative accumulative total. It also has the function of self-diagnose alarm and GSM wireless remote transmission. Functions such as wireless remote transmission, storage, and data analysis can be realized.
Feature
1. It has the function of artificial intelligence.
2. It is the first domestic company that has electromagnetic flowmeter with HART communication function.
3. Explosion-proof design accords with the national explosion-proof technology requirements and has been approved by tests and can be used in various explosion-proof places.
4. Its high resistance, fast response design can make undistorted collection of weak signal and fast response to the change of flow. Its range rate can reach 100: 1.
5. It has the function of low conductivity measurement.
6. It is the first domestic company that tests full or empty pipe by adopting capacitance technology, which can avoid wrong alarms.
7. It has the consistency of converter's interchange, which can avoid input parameters repeatedly.
8. Wide range of power supply mode is available (DC: 18V-36V AC: 85V-265V).
9. It is the first domestic company that adopts the function of saving settings before sent out of factory, which can avoid the loss of the parameters.
10. It adopts the international leading excitation technology, whose circuit is simple, stable, and reliable.
11. It has the function of infrared remote control and button operation so as to make the operation more convenient.
12. It provides the function of zero correction of sensor and automatic zero adjustment.
13. It has English friendly interface to satisfy all the users' requirements.
14. It has the function of self-adjustment and self-checking.
15. It has lightning-protection and electricity-protection circuits. The effective, anti-interference circuits apply to all kinds of bad environment.
16. A variety of output communication interfaces are optional:
1. Hart communication (optional)
2. RS485 (Modbus is optional) communication interface
3. Profibus (optional)
4. 16-figure current loop4~20mA output
5. 0-10kHz frequency output
6. Pulse equivalent output
Our other related products: Level gauges, flow meters, pressure transmitters, indicators, industrial system.
Welcome to contact if have enquiry.
Thanks and Best wishes,
Jenny Zhao
General Manager
Tianjin U-ideal Instrument Co., Ltd
Tel: +86 22 88971536 Mobile: +86 13072030856
We have competitive flow meters such as floater flow meter(Metal rotary flow meter) Oval gear wheel flow metal pipe rote meters, turbine flow meter, vortex flow meter, double rotor flow meter have characteristics of simple structure, work reliable, wide range of temperature
| Nominal diameter: |
DN10-DN1200 / DN150-DN6000 (plug-in type can be chosen) |
| Nominal pressure: |
0.6~4.0Mpa (Special pressure can be made) |
| Accuracy: |
±0.5%,±1% |
| Measuring range: |
0.01-10m/s |
| Measuring medium (conductivity): |
20μs/cm |
| Medium temperature: |
-10°C~160°C |
| Environment temperature: |
-10°C~60°C |
| Environment humidity: |
≤95% (relative humidity) |
| Power supply mode: |
3.6 V /DC built-in lithium battery power supply.
It can last for 2 years 3.6V, 12V, 220V) |
| Electrode materials: |
316L stainless steel, HC, HB, Ti, Ta, Pt-Ir. |
| Lining materials: |
CR, MPUR, PTFE, F46, PFA |
| Connection mode: |
Flange, plug-in, or clamping type |
| Structure form: |
Integrated or split type. |
| Protection level: |
IP68 or IP65 (optional) |
| Display mode: |
LCD big screen displays instantaneous flow, the flow speed, (pressure),
forward and backward cumulative total amount, and alarm prompt. |
| Output |
Pulse output 0.0001-10 m³/ p |
| |
Frequency output 1-1000 HZ any setting (passive optical coupling output) |
| Communication mode: |
GSM/GPRS wireless data remote transmission (message form packet) |
