Xiamen Loadcell Technology Co., Ltd. >> Bench Scale Sensor (LAD-A)

Bench Scale Sensor (LAD-A)

Name: Bench Scale Sensor (LAD-A)
Brand: China-Manufacturer-Directory.com
SKU: 664547765
Availability: InStock
Rating: 4.7 (70 reviews)

Supplier:	Xiamen Loadcell Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	LAD-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

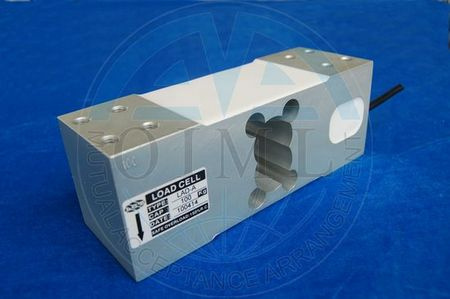

Bench scale sensor LAD-A
Material: Aluminum
Capacity: 60Kg~800Kg
Dimenison: 64*60*174mm
Accuracy class: C3
Protection Class: IP65
Application: Electronic balance, platform scale, weighing scale, price computing scale, counting scale, bench scale
Recommend size of platform: 600*600mm

Item			Standard
Rated Loading			60Kg~800Kg
Dimension			6460174
Rated Output			2.0mv/V± 5%
Zero Balance			± 0.05mv/v
Non-linearity			± 0.015%R. O.
Hysteresis, Non-repeatability			± 0.008%R. O.
Creep in 2 Min.			± 0.01%R. O. /2Min
Temp. Effect on Output			± 0.03%R. O. /10
Temp. Effect on Zero			± 0.03%R. O. /10
Input Resistance			405± 10 ohm
Output Resistance			350± 3 ohm
Safe Overload			150%R. C.
Insulation Resistance			≥ 5000M ohm
Compensated Temp. Range			-10to+40
Operating Temp. Range			-20to+60
Excitation, Recommended			5-12VDC
Cable, Length			φ 5*2m

We (Xiamen Loadcell Technology Co., Ltd. ) engage in the developing, producing, selling and servicing of strain gauges and load cells. High accuracy, Aluminum construction, apply to platform scales, pricing scales, balance. We have a professional and active sales team, to provide satisfying service of pre-sales and post-sales, Our obiective is to facilitate clients and let them have no worry.
