Product Specifications
| Prod Model: |
yh45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Mode: |
Digital |
| Power Source: |
AC and DC |
| Theory: |
Electronic Meter |
| Installation: |
Desktop |
Product Description

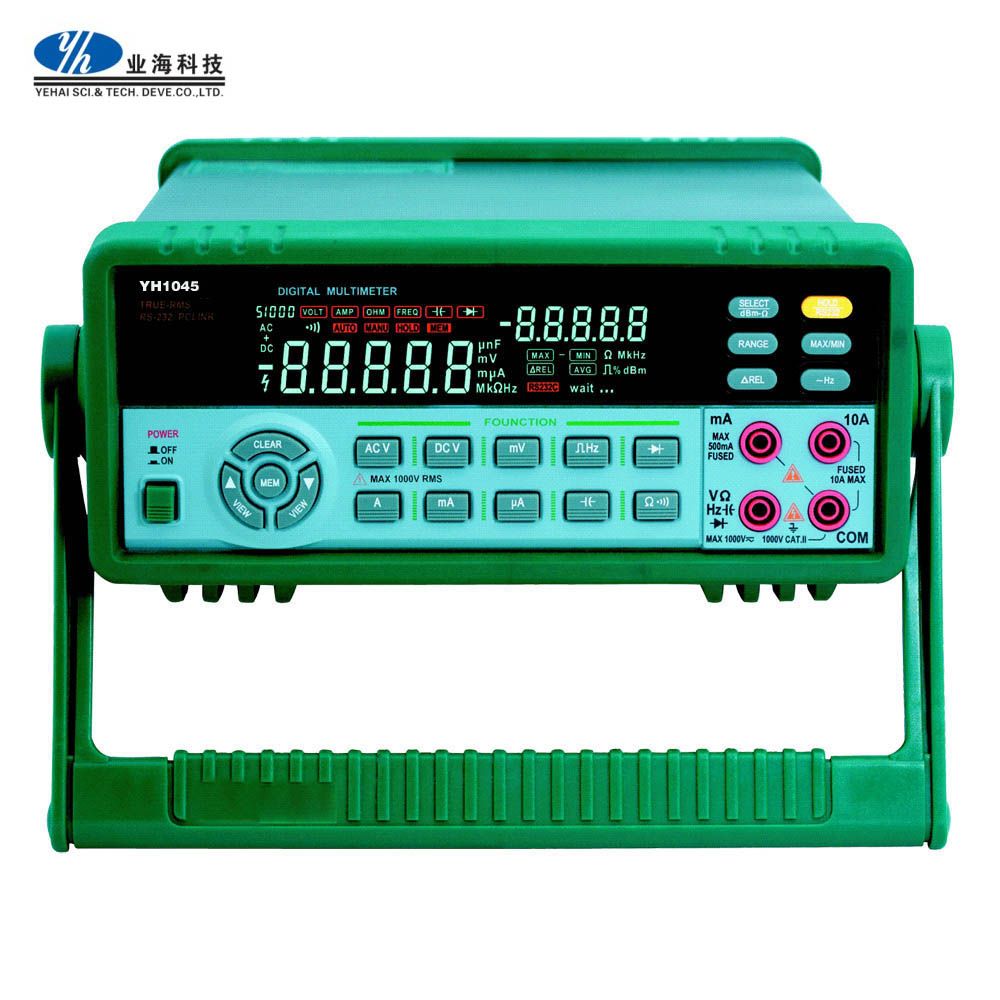

Bench Top High Accuracy 53000 Counts Digital Multimeter -YH45
Features
1, 53000 counts measurement
2, Auto/Manual range
3, ACV and ACV measurements reach up to 1000V
4, DC measurement accuracy reaches up to 0.03%
5, 0.1Ω Resistance and 1µ V voltage resolution
6, Voltage/Current linear frequency measurement
7, Logic frequency/duty cycle measurement
8, Capacitance measurement from 0.01nF to 5000µ F
9, AC/AC + DC true RMS/dBm measurement
10, MAX/MIN/MAX-MIN value, relative value, average value measurement
11, Data hold
12, RS-232C interface and PC Windows software
13, Software calibrates automatically
14, Full overload protection
15, Color fluorescent double display
16, Full screen memory function
17, Insulating performance reaching 1000V CATII
SPECIFICATIONS
ACV/DCV + ACV: 50mV/500mV/5V/50V/500V/1000V ± 0.5%
DCV: 50mV/500mV/5V/50V/500V/1000V ± 0.03%
AC Current/DC Current + AC Current: 500µ A/5000µ A/50mA/500mA/5A ± 0.75%, 10A ± 1.5%
DC Current: 500µ A/5000µ A/50mA/500mA/5A/10A ± 0.15%
Resistance: 500Ω /5KΩ /50KΩ /500KΩ /5MΩ ± 0.1%, 50MΩ ± 0.5%
Capacitance: 50nF/500nF/5µ F/50µ F ± 1%, 500µ F/5000µ F ± 2%
Diode: 2.5V ± 1%
Duty cycle: 5Hz ~ 500kHz
Range: 10% ~ 90%
Logic Frequency: 5Hz ~ 2MHz ± 0.006%, Vpp 2 ~ 5V Square Wave
Linear Frequency: 10Hz ~ 200kHz ± 0.006%
Sensitivity: Lowest 4mV
Memory function: 30 full screen
Display: VFD size 140mm x 40mm
Power: ~220V ± 10% or ~110V ± 10%
Size: 350mm x 250mm x 100mm
Weight: Approx. 2000g
YH45 is controlled and calibrated by software, non adjustable device, so it's stability for long time is guaranteed. The meter has a light-coupling RS-232C interface and a computer software, can display, draw, record all test processes on a computer. The graphic software has an exclusive dynamic scale, which can describe very small changes of electric parameters. YH45 together with a computer becomes a very useful measurement recorder. The protection functions against some error operations get it's safety characteristic guaranteed. It is the best selection for factories, science research organizations, and laboratories in universities.
|
Range |
Resolution |
Accuracy |
Voltage Drop |
|
40Hz-1KHz |
1KHz-10KHz |
10KHz-20KHz |
|
|
500μ A |
0.01μ A |
± (0.75%+20) |
± (1%+20) |
± (2%+20) |
102µ V/µ A |
|
5000μ A |
0.1μ A |
± (0.75%+10) |
± (1%+10) |
± (2%+10) |
|
50mA |
1μ A |
± (0.75%+20) |
± (1%+20) |
± (2%+20) |
1.5mV/mA |
|
500mA |
10μ A |
± (0.75%+10) |
± (1%+10) |
± (2%+10) |
|
5A |
0.1mA |
± (0.75%+20) |
± (1.5%+20) |
± (5%+20) |
30mV/A |
|
10A |
1mA |
± (1.0%+10) |
± (1.5%+10) |
Unspecified |
