Product Specifications
| Prod Model: |
TG18-WS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Speed: |
18000r/Min |
| Max Rcf: |
23200xg |
| Timer Range: |
0-99min |
| Motor: |
Brushless DC Motor |
| Noise: |
<65dB |
| Power: |
AC220v 50Hz 5a |
| Dimension: |
500*360*330mm |
| Weight: |
25kg |
Product Description

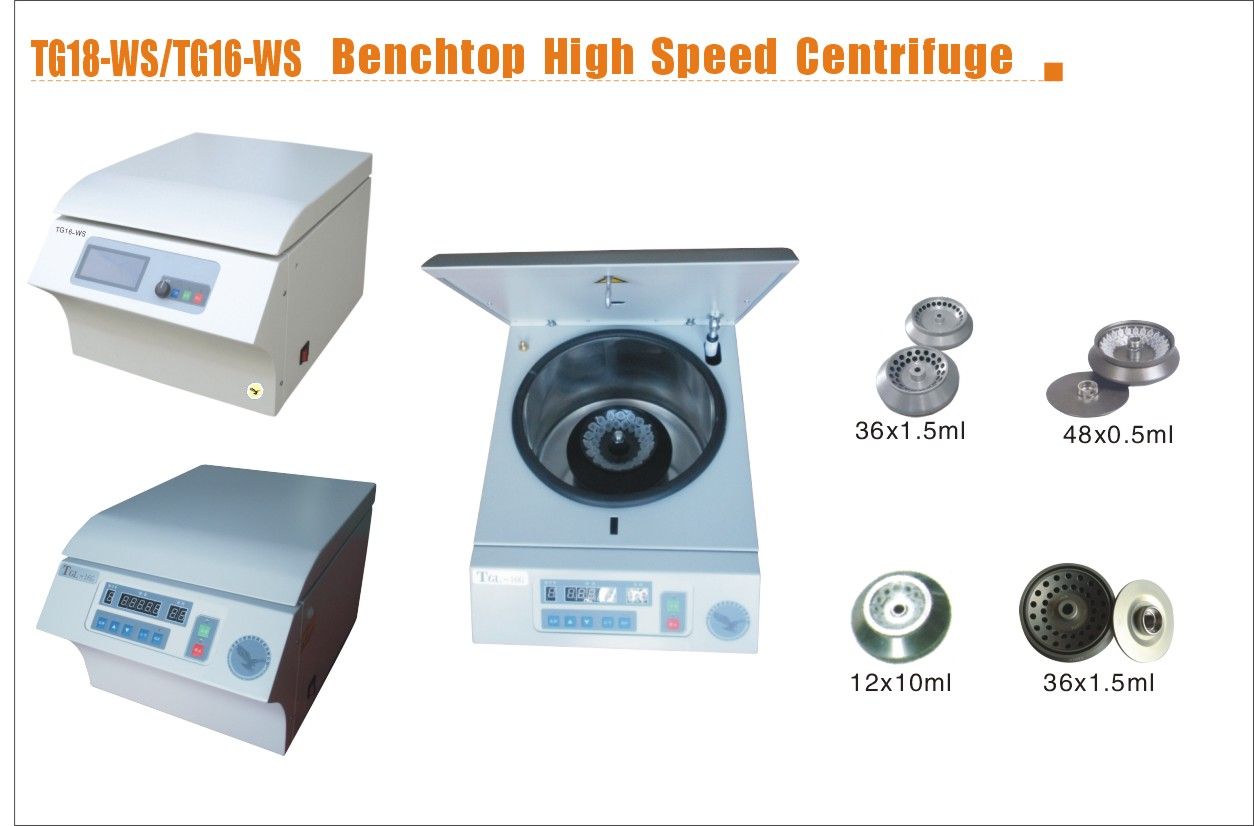

Benchtop High Speed Centrifuge
1. Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relative RCF.
2. Maintenance-free frequency conversion motor, with high speed control accuracy.
3. With imported refrigeration system operating without Freon for the purpose of environment protection.
4. Imported LCD display, the operation is simple with single button for spin control.
5. 30 kinds of programs can be designed and 10 profiles can be choose for ACC/DEC for the best centrifugal process and get the best result.
6. With many kinds of rotor and rotor identification system for convenient use and prevent over-speed operation.
7. With the help of the door cover protection, over-speed and advanced electronic imblance detection system, the machine can process the real-time monitor, so to insure safe operation.
8. We have passed CE security certification, ISO9001 and 13485 quality certification.
|
Technical parameters |
|
Model |
TG18-WS |
TG16-WS |
|
Max Speed |
18000r/min |
16000r/min |
|
Max RCF |
23200xg |
17800xg |
|
Timer Range |
0-99min |
|
Motor |
Brushless DC Motor |
|
Noise |
≤65dB (A) |
|
Power Supply |
AC220V 50HZ 5A |
|
Dimensions |
500*360*330mm(LxWxH) |
|
Net Weight |
25kg |
|
Rotor (According to the customer's request to process various rotor) |
|
Number |
Max Speed |
Max RCF |
Capacity |
|
NO.1 Angle Rotor |
18000r/min |
23200xg |
12×1.5/2ml |
|
NO.2 Angle Rotor |
13000r/min |
11800xg |
8×5ml |
|
NO.3 Angle Rotor |
12000r/min |
14800xg |
12×10ml |
|
NO.4 Angle Rotor |
13500r/min |
15100xg |
24×1.5/2.2ml |
|
NO.5 Angle Rotor |
13500r/min |
14810xg |
48×0.5ml |
|
NO.6 Angle Rotor |
15000r/min |
19000xg |
36×1.5ml |
|
NO.7 Angle Rotor |
11000r/min |
12000xg |
6×50ml |
|
NO.8 Angle Rotor |
9000r/min |
9100xg |
4×100ml |
Xiangying Centrifuge is a leading high quality & reliable manufacturer of medical & research centrifuges in China over the last 30years.
Our high quality centrifuges are widely applied in laboratory, Biological pharmaceutical, Diagnostic reagents, Universities, Colleges, scientific research institutions, Life Sciences, Fine chemical, Chemical analysis, central blood stations, hospitals and Beauty Salon etc.
Our advantages:
1. Rich over 30years experience in centrifuge applications for R & D purposes.
2. High quality and best after-sales service
3. ISO9001: 2008, ISO13485, CE certified.
4. Over 60 varieties of centrifuge, including high speed centrifuge, low speed centrifuge, refrigerated centrifuge, large capacity centrifuge with a series of rotors perfectly adapted for all needs.
5. OEM, Customized orders are most welcome.
6. New Patent Products:
A. Automatic uncovered centrifuge (TDZ4-WS&TDL420)
B. Centrifuge for PRP (Model: TD4N&TD5B&&DL5MC&DD5M)
In order to expand & extend our existing customer base, we would like to offer you our high quality products to you on favorable terms and conditions.
