Changsha Weierkang Xiangying Centrifuge Co., Ltd. >> High Speed Refrigerated Centrifuge (TGL-22M) CE & ISO 13485

High Speed Refrigerated Centrifuge (TGL-22M) CE & ISO 13485

Name: High Speed Refrigerated Centrifuge (TGL-22M) CE & ISO 13485
Brand: china-manufacturer-directory.com
SKU: 613225724
Availability: InStock
Rating: 4.8 (112 reviews)

Supplier:	Changsha Weierkang Xiangying Centrifuge Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1Set
Quantity::
Trade Terms:	by Sea/ Air/Express

Product Specifications

Prod Model:	TGL-22M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Speed:	20000r/Min
Max Rcf:	27800xg
Max Capacity:	4*100ml
Speed Accuracy:	+-20r/Min
Temp Accuracy:	+-1 C
Temp Range:	-20 C +40c
Timer Range:	0-99min
Motor:	Brushless DC Motor
Power:	AC220v 50Hz 18a
Dimensions:	410700360mm

Product Description

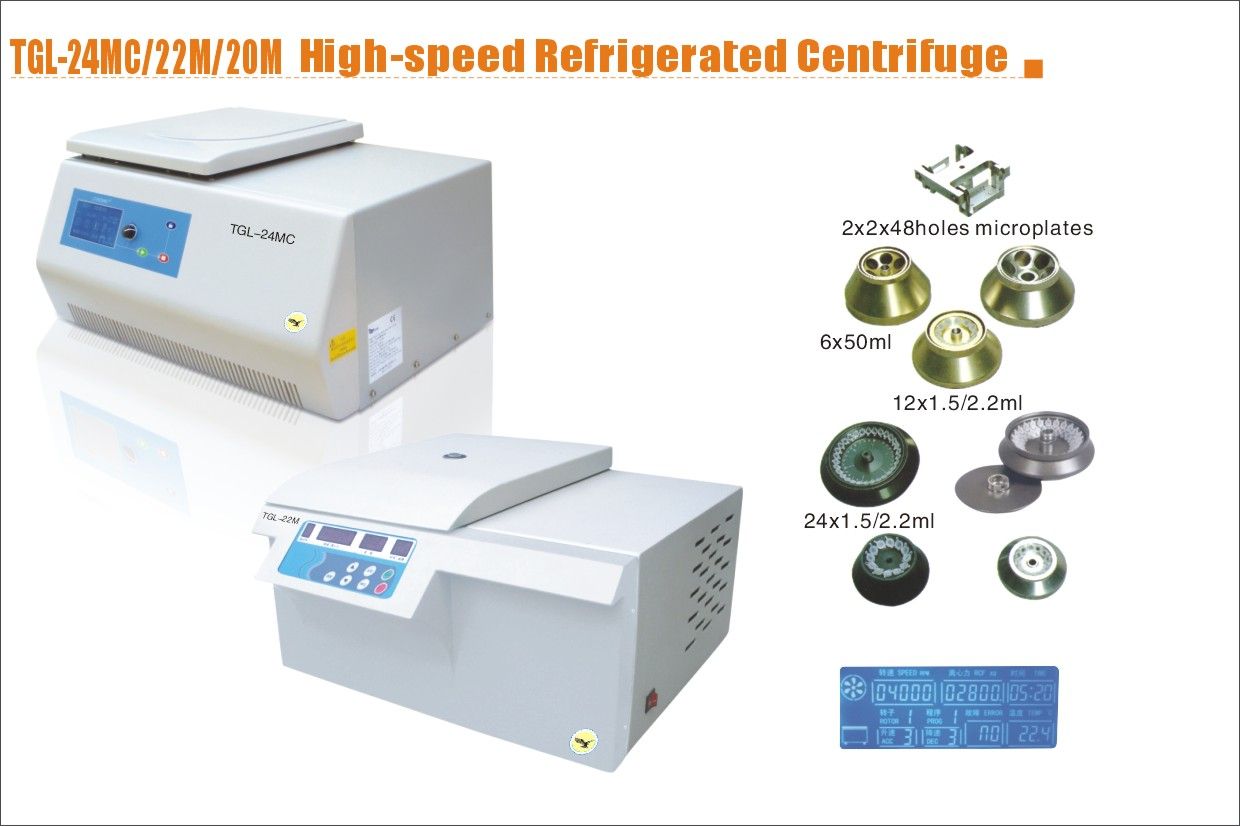

High Speed Refrigerated Centrifuge
1. Adopt advanced CPU control system realizing microprocessor control, it can control rotate speed, temperature and relative RCF.

2. Maintenance-free frequency conversion motor, with high speed control accuracy.

3. With imported refrigeration system operating without Freon for the purpose of environment protection.

4. Imported LCD display, the operation is simple with single button for spin control.

5. 30 kinds of programs can be designed and 10 profiles can be choose for ACC/DEC for the best centrifugal process and get the best result.

6. With many kinds of rotor and rotor identification system for convenient use and prevent over-speed operation.

7. With the help of the door cover protection, over-speed and advanced electronic imblance detection system, the machine can process the real-time monitor, so to insure safe operation.

8. We have passed CE security certification, ISO9001 and 13485 quality certification.

Technical Parameters:
Model	TGL-24MC		TGL-22M		TGL-20M
Max Speed	24000r/min		22000r/min		2000r/min
Max RCF	47800xg		34700xg		27800xg
Max Capacity	4x100ml
Temp range	-20°C~+40°C
Temp Accuracy	± 1 °C
Speed Accuracy	± 20r/min
Timer Range	0-99min
Motor	Brushless DC motor
Noise	≤ 60dB (A)
Power Supply	AC220V 50HZ 18A
Dimensions	410700360mm(LxWxH)
Net Weight	85kg
Rotor: According to the customer’s request to process various rotor
Number		Max Speed		Max RCF		Capacity
NO.1 Angle Rotor		20000r/min		27800xg		12x1.5/2.2ml
NO.2 Angle Rotor		16000r/min		17280xg		10x5ml
NO.3 Angle Rotor		14000r/min		23120xg		12x10ml
NO.4 Angle Rotor		13000r/min		16760xg		6x50ml
NO.5 Swing Rotor		6000r/min		3200xg		4x10ml
NO.6 Swing Microplates Rotor		3000r/min		1400xg		2x2x48holes
NO.7 Angle Rotor		13500		17000		24x1.5/2.2ml
NO.8 Angle Rotor		14000		19030		4x50ml
NO.9 Angle Rotor		10000r/min		9690xg		4x100ml
NO.10 Angle Rotor		16000		19800xg		36x1.5ml

Xiangying Centrifuge is a leading high quality & reliable manufacturer of medical & research centrifuges in China over the last 30years.

Our high quality centrifuges are widely applied in laboratory, Biological pharmaceutical, Diagnostic reagents, Universities, Colleges, scientific research institutions, Life Sciences, Fine chemical, Chemical analysis, central blood stations, hospitals and Beauty Salon etc.

Our advantages:
1. Rich over 30years experience in centrifuge applications for R & D purposes.
2. High quality and best after-sales service
3. ISO9001: 2008, ISO13485, CE certified.
4. Over 60 varieties of centrifuge, including high speed centrifuge, low speed centrifuge, refrigerated centrifuge, large capacity centrifuge with a series of rotors perfectly adapted for all needs.
5. OEM, Customized orders are most welcome.
6. New Patent Products:
A. Automatic uncovered centrifuge (TDZ4-WS&TDL420)
B. Centrifuge for PRP (Model: TD4N&TD5B&&DL5MC&DD5M)

In order to expand & extend our existing customer base, we would like to offer you our high quality products to you on favorable terms and conditions.
