Bend Machine

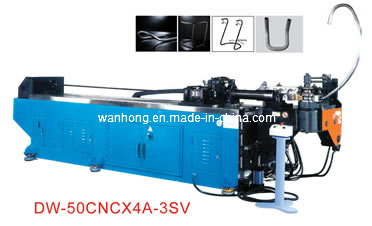

Name: Bend Machine
Brand: China-Manufacturer-Directory.com
SKU: 742451275
Availability: InStock
Rating: 4.8 (62 reviews)

Supplier:	Zhangjiagang Wanhong Machinery Manufacturing Co., Ltd.
Price:	US $ 31000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	dw50cnc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No:	Dw-50CNC
Color:	Blue
System:	CNC
Maxi. Bending Radius:	R250mm
Mini. Bending Radius:	R20mm
Maxi. Bending Angle:	190°
Maxi. Length Of Feeding:	2400mm
Feeding Way:	Direct Feeding / Clamping Feeding
Data Input Mode:	Y.B.C
Machine Size:	4600mm×1850mm×1150mm
Automation:	Automatic
Type For Cutting Machine:	CNC Cutting Machine
Type For Fold-bending Machine:	CNC Fold-bend Machine
Application:	Machinery & Hardware

Product Description

Bend Machine

1. Automatic recognition of power in machine correct and fast.

2. Slow returing-core, boosted by barrow, improving the appearance of the angle.

3. Display of the whole operation in English+15 inches true-color monitor+ touch screen, easy, quick and correct operation

4. Rebounding test--comparision test on the features of lots of pipe materials.

5. Pictured programming system: Draw or modify on the stereo pipe image on the screen, getting the processing correct and fast.

6. Automatic drawing of the graphic of dies--clear help to developing new products.

7. Over--all inspection: Hydraulic/electrical circuit/driving systems, absence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles.

8. Passwords, keys, working hours/ recordings of qualities, are applied to management of production.

Main Specifications	Model	DW18CNC x 3A-1S	DW25CNCx2A-1S	DW38CNCx2A-1S	DW50CNCx2A-1S	DW63CNCx2A-1S	DW75CNCx2A-1S	DW89CNCx2A-1S	DW100CNCx2A-1S	DW114CNCx2A-1S
			DW25CNCx3A-1S	DW38CNCx3A-1S	DW50CNCx3A-1S	DW63CNCx3A-1S	DW75CNCx3A-1S	DW89CNCx3A-1S	DW100CNCx3A-1S	DW114CNCx3A-1S
Maximum bending diameter x thickness (steel)		18mmx1.6mm	25mmx1.6mm	38mmx2mm	50mmx3mm	63mmx3mm	75mmx2mm	89mmx4mm	100mmx8mm	114mmx10mm
Maximum bending radius	[1]	R80mm	R100mm	R180mm	R250mm	R250mm	R300mm	R300mm	R350mm	R350mm
Minimum bending radius	[2]	R5mm	R5mm	R15mm	R20mm	R25mm	R30mm	R30mm	R50mm	R50mm
Maximum bending angle		190°	190°	190°	190°	190°	190°	190°	190°	190°
Maximum feed length	[3]	1500mm	2500mm	3000mm	3000mm	3000mm	3000mm	3000mm	3000mm	3000mm
Feeding		Direct/pinch
Working speed	Bending speed	Max200°/s	Max200°/s	Max150°/s	Max85°/s	Max85°/s	Max40°/s	Max30°/s	Max30°/s	Max30°/s
	Rotary speed	Max200°/s	Max200°/s	Max200°/s	Max200°/s	Max200°/s	Max160°/s	Max160°/s	Max160°/s	Max160°/s
	Feeding speed	Max1000mm/s	Max1000mm/s	Max1000mm/s	Max1000mm/s	Max1000mm/s	Max800mm/s	Max800mm/s	Max800mm/s	Max800mm/s
Accuracy	Bending speed	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.15°
	Rotary speed	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°	±0.1°
	Feeding speed	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Data Input Method	1.Coordinate(X Y Z) 2.Work values(Y B C)
Bending mode		1.Servo elbow:1kw 2.Hydraulic pipe	1.Servo elbow:2kw 2.Hydraulic pipe	1.Servo elbow:5kw 2.Hydraulic pipe	1.Servo elbow:5kw 2.Hydraulic pipe	1.Servo elbow:7kw 2.Hydraulic pipe	1.Servo elbow:7kw 2.Hydraulic pipe	1.Servo elbow:11kw 2.Hydraulic pipe	1.Servo elbow:11kw 2.Hydraulic pipe	1.Servo elbow:11kw 2.Hydraulic pipe
Turn the servo motor power		400w	400w	750w	750w	750w	1kw	1.5kw	1.5kw	1.5kw
Feeding servo motor power		750w	750w	1kw	1kw	1kw	1.5kw	2kw	3.5kw	3.5kw
Number of bend pipe fittings		1.12Item 2.33Item
Storing components		1.330Group 2.125Group
Hydraulic motor power		Start type	3kw	4kw	5.5kw	5.5kw	7.5kw	11kw	15kw	22kw
Maximum system pressure		10Mpa	12Mpa	12Mpa	12Mpa	12Mpa	12Mpa	14Mpa
