Product Specifications
Prod Model: |
dw75cnc |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Bending Capacity: |
76.2*2.0t |
Max Bending Radius: |
300mm |
Min Bending Radius: |
30mm |
Max Feeding Length: |
2800mm |
Max Bending Degree: |
190 |
Control Panel: |
PLC*Touch Screen |
Rotary Servo Motor Power: |
750W (Japan Mitsubishi) |
Feeding Servo Motor Power: |
2kw (Japan Mitsubishi) |
Oil Motor Power: |
15kw |
Hydraulic Control System: |
Japan Yuken |
Type For Fold-bending Machine: |
CNC Fold-bend Machine |
Application: |
Machinery & Hardware |
Product Description
Specifications

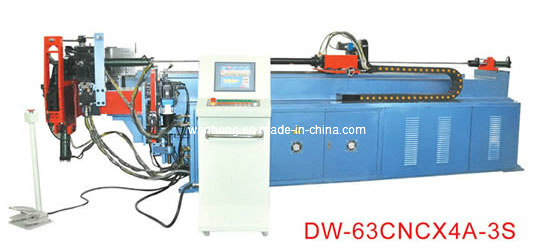

Tube Bending Machine
1, technical: Cold bending
2, electric: Schneider
3, system: Mitsubishi
4, hydraulic parts: Yuken Japan
5, pipe bending machine
Item |
Name |
Unit |
Data |
Remark |
1 |
Max bending capacity |
mm |
76.2x2.0t |
|
2 |
Max bending radius |
mm |
300 |
Can according to customer requirement |
3. |
Min bending radius |
mm |
30 |
|
4 |
Max feeding length |
mm |
2800 |
Can according to customer requirement |
5 |
Max bending degree |
Degree |
190 |
|
6 |
Control Panel |
|
PLC*touch screen |
|
7 |
Bending unit |
piece |
16 |
|
8 |
Working speed |
bending speed |
Deg*sec |
30 |
Rotary speed |
Deg*sec |
180 |
Feeding speed |
mm*sec |
700 |
9 |
Accuracy |
feeding |
mm |
0.1 |
rotary |
Degree |
0.1 |
bending |
Degree |
0.1 |
10 |
Rotary servo motor power |
W |
750 |
JapanMitsubishi |
11 |
Feeding servo motor power |
Kw |
1 |
JapanMitsubishi |
13 |
The accuracy of roller |
mm |
Max 70 |
Can according to customer requirement |
14 |
Oil motor power |
Kw |
15 |
|
15 |
Max storage units |
group |
1000 |
Can enlarge according to requirement |
16 |
Max pressure |
MPa |
14 |
Adjustable |
17 |
Hydraulic control system |
|
Magnetic exchange valve |
JapanYuken |
18 |
Oil tank |
L |
190 |
|
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
