Product Specifications
| Prod Model: |
DW38CNC X2A-1S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware, Chemical, Medical, Apparel, Food, Beverage |
Product Description
IV. General Introduction

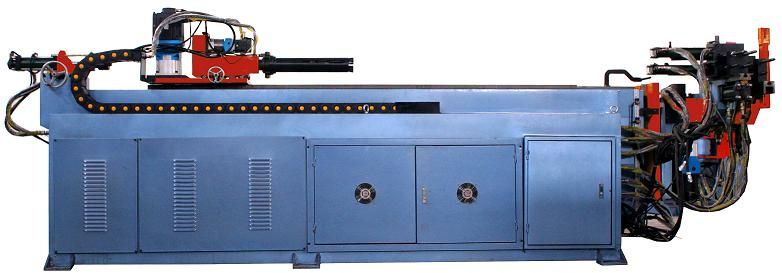

1. DW38CNC X 2A-1S fully automatic pipe bending machine, with PLC control. Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual, semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.
9. All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
10. CNC fully automatic, have cubical space bending equipment, loading the whole bending process is automatic. The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
Item Name Unit Data Remark
1 Max bending capacity mm Φ 38× 2t For normal steel
Φ 15
2 Max bending radius mm 180 Can according to customer's requirement
3. Min bending radius mm Depend on the pipe diameter
4 Max feeding length mm 4000 Can according to customer's requirement
5 Max bending degree Degree 190
6 Control Panel PLC +touch screen
7 Bending unit piece 16
8 Working speed bending speed Degc 150
Rotary speed Degc 200
Feeding speed mmc 1000
9 Accuracy feeding mm ± 0.1
Rotary Degree ± 0.1
Bending Degree ± 0.1
10 Rotary servo motor power W 750 Japan Mitsubishi
11 Feeding servo motor power Kw 1 Japan Mitsubishi
12 The accuracy of roller mm Max 50 Can according to customer's requirement
13 Oil motor power Kw 4
14 Max storage units group 1000 Can enlarge according to requirement
15 Max pressure MPa 12 Adjustable
16 Hydraulic control system Magnetic exchange valve Japan Yuken
17 Oil tank L 110
18 Oil cooler L/Min 150
19 Machine weight Kg 1500
20 Machine size mm 3860× 720× 1230
21 Working height mm 1300
22 Delivery time days 50 days
23 Warranty time month 14
Zhangjiagang Minghua Machinery Manufacture Co., Ltd., founded in 1980, is a medium-sized machinery company specialized in manufacturing general machinery. To meet the need of market and manufacture of automobile, shipbuilding, furniture, gymnastic equipment, bicycles, burglarproof doors and pipe material processing, our company adopts foreign advanced technology and managing method in recent years.
We design and produce metal circular sawing machine, tube-end forming machines, single or double-end hydraulic bending machine, CNC bending machine and various series of machines which are advanced in the nation. Contemporary, we can design and produce special machines and other non-standard machines according to clients' needs of operation and installation. Depending on advanced technology and reasonable price, our product is popular in domestic China and abroad.
If you are interested in any of our products, please feel free to contact us for further information. We are looking forward to hearring from you in the near future.
