Product Specifications
| Prod Model: |

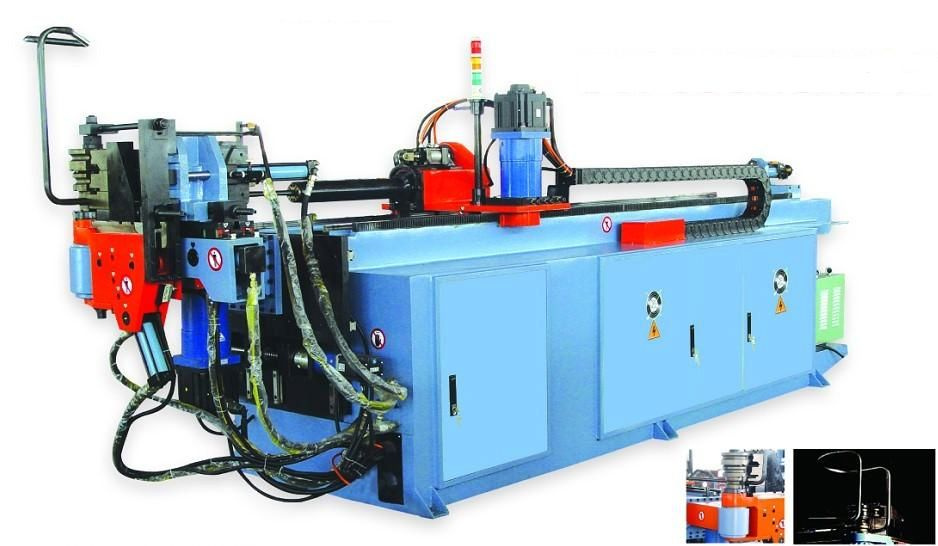

DW38CNCX5A-3S |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
Product Description
Automatic recognition of power in machine and work piece, the processing is both quick and good
Slow returning core, boosted by barrow, imporving the appearance of the angle.
The whole operation is in the computer, simple, quick and correct
Picturized programming system: Draw and modify on the stereo pipe image on the screen, makes the operation simple, quick and correct
Rebound test: Comparison test on the features of lots of pipe materials
Single-step debugging function- a careful observe on the deformation of the pipe material during the trail manufacture of dies.
Automatic drawing of the graphics of dies-clear help to develop new products
Over-all inspection: Hydraulic/electrical circuit/ driving systems, adsence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles
Passwords, keys, working hours/ recordings of quantities, are applied to management of production
| Specification/Model | DW38CNCX5A-3S | Remark | | Max bending capability | Φ38mm×2mm |
1. The Minimum bending diameter based onthe pipe diameter
2.The Max bending diameter can accordingto the customer’s requirement
3.The Max length of mandrel can according to customer’s requirement
| | Max bending radius | R180mm | | Min bending radius | R15mm | | Max bending angle | 190° | | Max feeding length | 2000mm | | feeding method | direct feeding
clamping feeding | | Working speed | Bending speed | Max 85°/s | Rotary speed
| Max 200°/s | | Feeding speed | Max 1000mm/s | | Working accuracy | Bending accuracy | ±0.1° | | Rotary accuracy | ±0.1° | | Feeding accuracy | ±0.1mm | | Information inputting method | 1. axis(X . Y. Z)
2.working value(Y. B. C) | Bending method
| 1.Servo bending : 1kw(more than 3 axis
2. Hydraulic bending | | Power of rotary servo motor | 750w | Power of feeding servo motor
| 1kw | | Max bending groups | 1. 12
2. 33 | Max storing components
| 1. 330
2. 125
| | Motor power | 5.5kw | Oil pressure
| 12 Mpa | | Size | 3830 x 760 x 1200mm | | Weight | 1500kg | |
|
| |
| |
