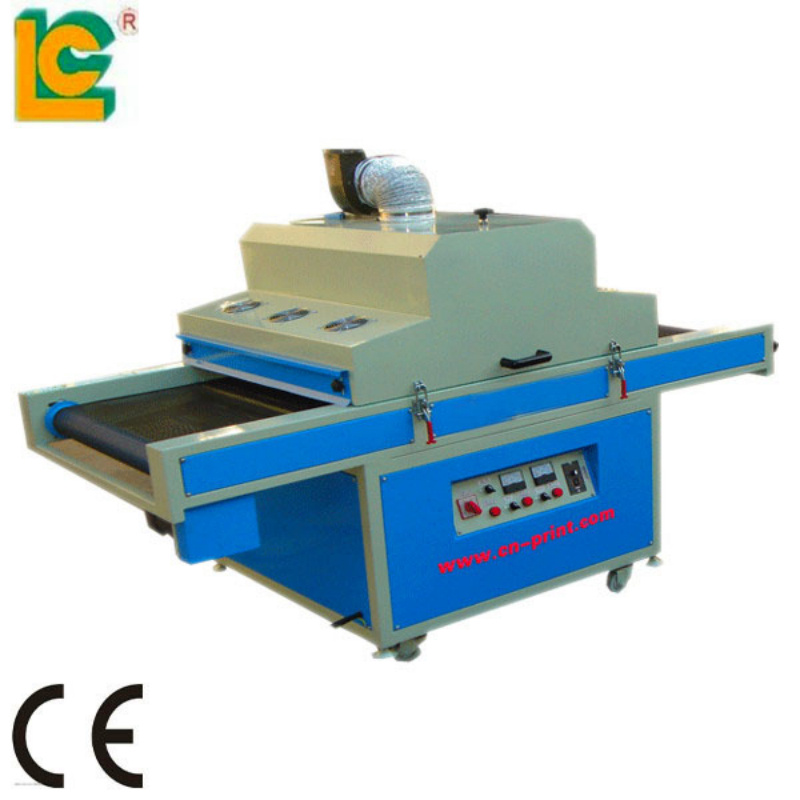

Our LAST NEW UV CURING MACHINE TM-900UVF be fit to UV drying PVC, PAPER OFFEST UV coating, UV polishing, UV glue, soft PCB after printing UV ink, plastic UV printing. Electronic product UV spary, packing products UV drying.
Our UV LAMP is high UV frequency. ( 360-720NM). It to fit amost UV INK, UV glue. Our UV Lamp useful time can sure 1000-1200 hour. TM speed change.
Belt runing speed is 0-10M/min.
Specifications:
1. Model NO. TM-900UVF
2. UV Drying products: 900*100*3000mm
3. Conveyor belt size: L3000* W900MM
4. UV Lamp power: 2PCS*5.6KW /380V
5. Total wattage: 13KW
6. Wind fan wattage: 500W/380V
7. Motor wattage: 1000W/1P/380V
8. Conveyor speed: 0~10m/min
9. Speed change ways: Continue
10. UV Machine Dimension: L*W*H3020*950*1450
11. Weight: 380kg
|
Model number |
TM-200UVF |
TM-300UVF |
TM-400UVF |
TM-500UVF |
TM-700UVF |
TM-1200UVF |
|
style |
Desktop |
Desktop |
Desktop |
Stand type |
Stand type |
Stand type |
|
max product width |
200mm |
300mm |
400mm |
500mm |
700mm |
1200mm |
|
max product length |
1000mm |
1200mm |
1200mm |
2000mm |
2000mm |
2500mm |
|
UV Process shine area |
200× 1000mm |
300× 1200mm |
400× 1200mm |
500× 2000mm |
700× 2000mm |
1200× 2500mm |
|
conveyer speed: |
0-10m/min |
0-10m/min |
0-10m/min |
0-10m/min |
0-10m/min |
0-10m/min |
|
UV Lamp power |
2KW × 1 PCS/ |
2KW × 2 PCS/ |
2KW × 2 PCS/ |
2PCS× 3KW /380V |
2PCS× 3KW /380V |
2PCS× 4KW /380V |
|
conveyer belt size |
200× 1000mm |
300× 1200mm |
400× 1200mm |
500× 2000mm |
700× 2000mm |
1200× 2500mm |
|
UV Machine Dimension: |
1100× 220× 750mm |
1300× 320× 750mm |
1300× 420× 750mm |
2100× 520× 1200mm |
2100× 720× 1200mm |
2600× 1220× 1200mm |
|
Net Weight |
110kg |
130kg |
165kg |
250kg |
290kg |
350kg |
Luen Cheong Printing Equipment Group Limited has manufactured LC brand color printing machines for more than 25 years, including various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines and cliche making machine and pre-post printing machine. We have passed ISO-9001-2000 certification in 2001 and are a member of SGIA and all of our industrial printers have EURO'S CE standard.
With great effort and constantly exploration, now we can supply 200 various industrial printers per month. Our printing machines have been exported to more than 65 countries around the world and we also dispatch some printing engineers to give our customers technical support overseas. Our clients are satisfied with our products
We produce 8 series of printing machines with more than 30 types of screen printers, pad printers and hot stamping machines. Our main series are as follows:
(1) Full Automatic UV Screen Printer
(2) Plane/Cylinder Semi-Automatic Silk Screen Printer
(3) Manual AD Silk Screen Printer
(4) Multi-Colour Sealed Ink Cup Pad Printer
(5) Multi-Colour Open Ink Tray Pad Printer
(6) UV Curing Machine & IR Dryer Oven
(7) Hot Foil Stamping Machine
(8) Heat Transfer Printing Press
(9) Machine Equipment Pre-Post Printer
Our printing machines are widely used in the industry of plastic and hardware cosmetics case packaging, and electronic gift or toys, electronic industry, household appliance, bottle cap, stationery pen, glass, PCB board, advertising, textiles, lighting etc.
We have a professional training after sales service department, which is free to resolve your problem on installation and adjustment of the machine.
We are located in China industrial zone center, Dongguan City, only two hour's car ride from Guangzhou BAIYUNPORT. If you are interested in our products, please feel free to contact us at any time. Welcome to make a field inspection of our factory.
