Bestscope Bs-1020 Monocular Microscope

Name: Bestscope Bs-1020 Monocular Microscope
Brand: China-Manufacturer-Directory.com
SKU: 685564522
Availability: InStock
Rating: 4.9 (56 reviews)

Supplier:	Catchbest Vision Technology (Beijing) Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BS-1020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Stereomicroscope
Principle:	Optics
Mobility:	Desktop
Number Of Cylinder:	Monocular

Product Description

Introduction

BS-1020 monocular microscope adopts high-quality optical systems. With characteristics of high-resolution, wide field of view and high zoom ratio, easy to operate, BS-1020 can be your best assistant in industrial inspection area. USB digital cameras, VGA digital cameras and HDMI digital cameras can be used on the microscope. LED and halogen cold light source, coaxial illumination attachments, LED ring light, 3D attachment(can be used to observe from different angels), Metallurgical objectives, coarse and fine focus stand, abundant eyepieces tubes and objectives are optional.

Features

1. Standard magnification is 21× ~ 135×, the maximum can be 5× ~ 1080×, zoom magnification.
2. LED and halogen cold light source, coaxial illumination attachments, LED ring light are optional for different requirements.
3. 3D attachment is optional to observe specimens from different angels.
4. Coarse & fine focus stand and universal stands can be optional for different requirements.
5. Alternative objective lens and eyepiece are available, so as to obtain a multiple magnification.
6. With modular structure, compact and complete accessories, BS-1020 is widely used in microelectronics manufacturing and testing industry, especially for high-precision test and inspection industry.

Applications

With excellent performance, complete accessories, simple and easy to operate, BS-1020 can be widely used in electronic industry, small precision parts inspection, assembly, repair, especially for observation of surface structure, it also can be applied to biological anatomy, jewelry inspection and schools academic use(with special stand and objectives).

Specification

Digital Part:
1. Model: BS-1020D(130), the digital camera is BUC2B-130C, please view the specification of BUC2B-130C for the technical details.
2. Model: BS-1020D(320), the digital camera is BUC2B-320C, please view the specification of BUC2B-320C for the technical details.
3. Model: BS-1020D(500), the digital camera is BUC2B-500C, please view the specification of BUC2B-500C for the technical details.
4. BVC-130, BVC-200, BVC-320 and BHC1-720P, BHC1-1080P and other cameras also can be used on BS-1020.

Optical Part:
Eyepiece: 0.5× (standard)
Objective: 1× (standard)
Standard magnification: 20×-135×
0.7×-4.5× zoom magnification
Zoom Ratio: 1:6.6
With eyepiece and objectives, optical magnification range: 0.21×-18×
Field of view: 0.3mm ~ 77mm
Working distance: 10mm-333mm, 1× Objective: 96mm

Standard Package

1. 1× Objective and 0.5×Eyepiece
2. Monocular microscope: Φ39mm, length: 200mm
3. Stand: 26cm×27cm×28cm
4. Package: 1 pc/carton, 30cm×31cm×52 cm, 4 kgs

Optional Accessories

1. Digital camera
BUC2B-130C, BUC2B-320C, BUC2B-500C, BVC, BHC and other digital cameras.
2. Illumination

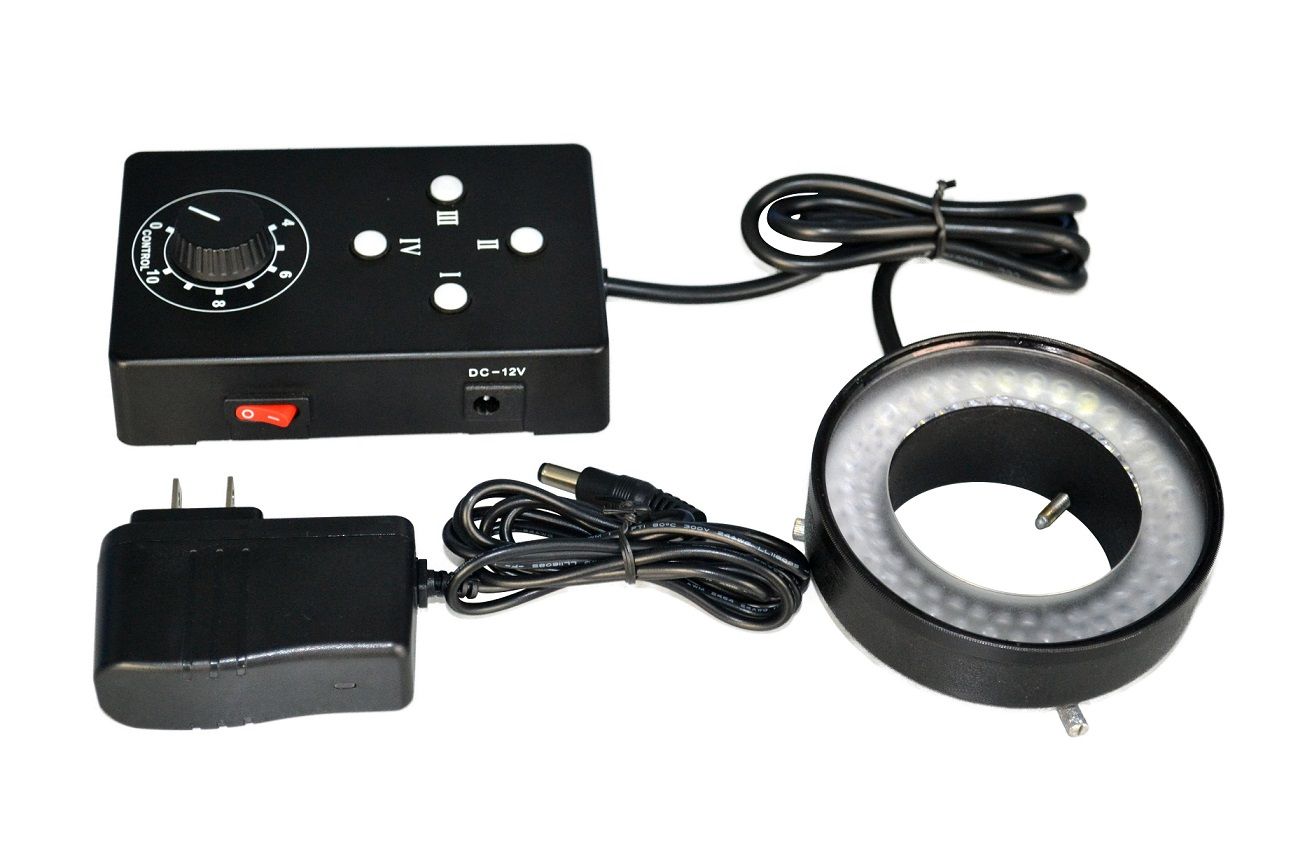

(1) BAL-72 Ring LED Light

Specification
a. LED Q'ty: 72LEDs
b. Mounting Diameter: 62mm, Outer Diameter: 98mm
c. Input Power: DC12V 600mA
d. Input Voltage: Universal 100-240V AC
e. Output Power: 7.2W
f. LED Color Temperature: ±6500K
g. LED Luminance: >15000mcd
h. LED Angle: 18°(Consistent)
i. LED Lifetime: 100,000 hrs
j. Working Distance: 95-115mm
k. LED Color: White(Optional Other Colors)
Features
a. Intensity Adjustment, Good Variable Control Permit Gradual Increase in Brightness with Four-zone Lighting Control Separately
b. Reliability and Durability
c. Low Power, Consumption, Super Brightness
d. Metal Shell, ESD and Insulativity
e. Reasonable Design, Uniformity Light, Non-flicker & Shadow

Eyepiece	0.35×	0.5×	0.75×	1×	1.5×	2×
Focus length(mm)	67	90	135	10	270	360
Design length(mm)	76	97	103	130	189	252
Field of view angle	7.6°

Objective	0.3×	0.5×	0.75×	1×	1.5×	2×
Focus length(mm)	333	200	133	100	67	50
Working distance(mm)	331	198	131	96	63	46
Field of view angle	19.5°

Objective

0.3×

0.5×

0.75×

1.0×

1.5×

2.0×

Working Distance

331mm

198mm

131mm

96mm

63mm

46mm

Eyepiece

Mag.

FOV
(mm)

Mag.

FOV
(mm)

Mag.

FOV
(mm)

Mag.

FOV
(mm)

Mag.

FOV
(mm)

Mag.

FOV
(mm)

0.35×

4.65-31×

77-12

6-41×

59-9

9-61×

39-6

12-81×

29-4

18-121×

19.6-3

24-162×

14.7-2

0.5×

7.8-51×

46-7

10-68×

35-5

15-101×

23.5-4

20-135×

17.6-3

31-203×

11.8-2

41-270×

8.8-1.3

0.75×

11.6-77×

31-4.7

15-101×

23.5-3.6

23-152×

15.7-2.4

30.6-202×

12-1.8

46-304×

7.8-1.2

61-405×

6-0.9

1.0×

15.5-102×

23-3

20-135×

17.6-2.7

30.6-202×

12-1.8

41-270×

9-16

1-405×

6-0.98

1.6-540×

4-0.7

1.5×

23-154×

15-2.3

31-203×

11.8-1.8

46-304×

7.8-1.2

61-405×

6-0.99

2-607×

4-0.61

22-810×

3-0.4

2.0×

31-205×

11.6-1.7

41-270×

8.8-1.3

61-405×

6-0.9

81.6-540×

4-0.71

22-810×

3-0.41

63-1080×

2-0.3
