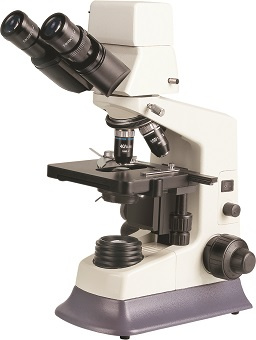

Bestscope Bs-2035da Digital Microscope with LED Illumination and High Resolution Camera

Bestscope Bs-2035da Digital Microscope with LED Illumination and High Resolution Camera
Supplier: Catchbest Vision Technology (Beijing) Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: BS-2035DA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Principle: Optics
Mobility: Desktop
Type: Biological

Product Description

Introduction

BS-2035DA series digital microscopes are classical, the microscopes feature ingenious stand, sharp image, comfortable operation and high-resolution camera, which make your work much enjoyable. They are widely used in biological, pathological, bacterial, histological, immune, pharmacological and genetic fields. They are suitably used in hospitals, clinics, medical academies, morphology and related research centers.


Features

1. High resolution, real-time image display by 1.3 Mega Pixel CMOS digital camera connecting to PC through USB2.0, 2.0MP, 3.2MP, 5.0MP, 9.0MP cameras are optional.
2. Sharpe Image with Semi-plan Achromatic Objectives.
3. Easy to replace lamp.
4. Professional and powerful micro-image process and analysis software.


Application area

BS-2035DA series digital microscopes are widely used in biological, pathological, bacterial, histological, immune, pharmacological and genetic fields. It is suitably used in hospitals, clinics, medical academies, morphology and related research centers.


Sample Images




Specification
Model   BS-2035DA1 BS-2035DA2
Digital System 1.3MP CMOS digital camera with high-resolution, 1280×1024, USB2.0 output Yes Yes
  2.0MP CMOS digital camera with high-resolution, 1600×1200, USB2.0 output Optional Optional
  3.0MP CMOS digital camera with high-resolution, 2048×1536, USB2.0 output Optional Optional
  5.0MP CMOS digital camera with high-resolution, 2592×1944, USB2.0 output Optional Optional
  9.0MP CMOS digital camera with high-resolution, 3488×2616, USB2.0 output Optional Optional
Viewing Head Seidentopf type Binocular Head at 30°, Interpupilary Distance 55-75mm Yes
  Seidentopf type Binocular Head at 30°, Interpupilary Distance 48-75mm   Yes
Eyepiece Wide Field EW10/20 Yes Yes
Nosepiece Backward Quadruple Nosepiece Yes Yes
  Backward Quintuple Nosepiece Optional Optional
Objective Semi-plan Achromatic Objective 4×, 10×, 40×, 100× Yes Yes
  Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× Optional Optional
  Infinite Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× Optional Optional
  Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× Optional Optional
Condenser NA1.25 Abbe Condenser with iris diaphragm and filter, rack & pinion adjustment Yes Yes
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm Yes Yes
Illumination LED Illumination, Brightness Adjustable Yes Yes
  Halogen Lamp 6V/20W, Brightness Adjustable Optional Optional
  Kohler Illumination Optional Optional
Filter Blue and Green Filter Yes Yes
Phase Contrast Kit Turret Phase Contrast Kit Optional Optional
Polarization Set Simple Polarization Attachment Optional Optional
Dark-field Attachment Dark-field Condenser(Dry) Optional Optional
  Dark-field Condenser(Oil) Optional Optional
Pointer LED Pointer Optional Optional
Software ScopeImage 9.0 Yes Yes
Note: Yes Standard Outfit, Optional Standard  Optional
BestScope International Limited is a key actor in the field of scientific instrumentation. We are specialized in the microscopes and industrial cameras area. We offer a diverse selection of Monocular Zoom Microscopes, Biological microscopes, Stereo Microscopes, Industrial Inspection Microscope, Polarizing Microscopes, Metallurgical Microscopes, Fluorescence microscopes, Gemological Microscopes, LCD Digital Microscopes, USB Cameras, VGA Cameras, Large LCD Digital Cameras etc.

In the Mainland China, we have our own lab research center with highly educated researchers and engineers who will R&D based on the technology update and customers' demands. Our factory covers an area of 33, 000 square meters, with close to one thousand staff. Using the world's most advanced production and testing equipments, from glass test, grinding, edging, coating, cement, black painting, mechanical processing, lens assembly to surface form deviation inspection, dimension inspection, eccentricity inspection, coating inspection, appearance inspection, inspection of image quality of lens and environment test, every step of the production and inspection process is under strictly control. Aim to provide customers the best possible products from "BestScope".

We have the marketing and sales center located at Beijing, then soon established the HongKong branch to service the domestic and foreign clients and partners together. Our worldwide clients include government, medical and industrial institutions, doctors, hospitals, clinical laboratories, public and private schools, colleges and universities, medical schools, gemologists, students and hobbyists. We pride ourselves on providing high quality products, unbeatable low prices, huge selections and personalized customers. Our goal is to provide you with the best quality products and services at the most competitive price backed by our 100% customer satisfaction guarantee. All of our products offer three years of quality assurance.

"PROVIDE MORE THAN YOU EXPECTED" is our consistent mission! BestScope would like to develop together with you!
