Product Specifications
| Prod Model: |
BS-2035DA2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Condenser: |
Na1.25 Abbe Condenser |
| Filter: |
Blue and Green Filter |
| Type: |
Biological |
Product Description
Introduction

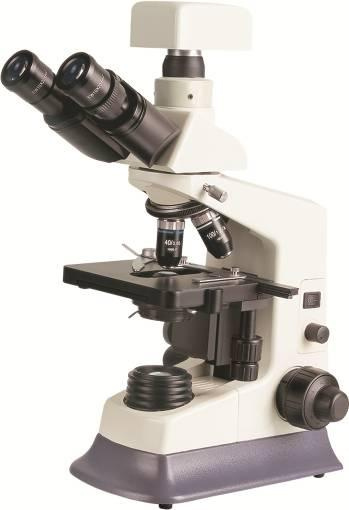

BS-2035DA2 digital microscopes are classical, the microscopes feature ingenious stand, sharp image, comfortable operation and high-resolution camera, which make your work much enjoyable. They are widely used in biological, pathological, bacterial, histological, immune, pharmacological and genetic fields. They are suitably used in hospitals, clinics, medical academies, morphology and related research centers.
Features
1. High resolution, real-time image display by 1.3 Mega Pixel CMOS digital camera connecting to PC through USB2.0, 2.0MP, 3.2MP, 5.0MP, 9.0MP cameras are optional.
2. Sharpe Image with Semi-plan Achromatic Objectives.
3. Easy to replace lamp.
4. Professional and powerful micro-image process and analysis software.
Application area
BS-2035DA2 digital microscopes are widely used in biological, pathological, bacterial, histological, immune, pharmacological and genetic fields. It is suitably used in hospitals, clinics, medical academies, morphology and related research centers.
| Specification |
|
|
| Model |
| BS-2035DA2 |
| Digital System | 1.3MP CMOS digital camera with high-resolution, 1280×1024, USB2.0 output | Yes |
| 2.0MP CMOS digital camera with high-resolution, 1600×1200, USB2.0 output | Optional |
| 3.0MP CMOS digital camera with high-resolution, 2048×1536, USB2.0 output | Optional |
| 5.0MP CMOS digital camera with high-resolution, 2592×1944, USB2.0 output | Optional |
| 9.0MP CMOS digital camera with high-resolution, 3488×2616, USB2.0 output | Optional |
| Viewing Head | Seidentopf type Binocular Head at 30°, Interpupilary Distance 55-75mm |
|
| Seidentopf type Binocular Head at 30°, Interpupilary Distance 48-75mm |
|
| Eyepiece | Wide Field EW10/20 | Yes |
| Nosepiece | Backward Quadruple Nosepiece | Yes |
| Backward Quintuple Nosepiece | Optional |
| Objective | Semi-plan Achromatic Objective 4×, 10×, 40×, 100× | Yes |
| Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× | Optional |
| Infinite Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× | Optional |
| Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× | Optional |
| Condenser | NA1.25 Abbe Condenser with iris diaphragm and filter,
rack & pinion adjustment | Yes |
| Stage | Double Layers Mechanical Stage 140×140mm/ 75×50mm | Yes |
| Illumination | LED Illumination, Brightness Adjustable | Yes |
| Halogen Lamp 6V/20W, Brightness Adjustable | Optional |
| Kohler Illumination | Optional |
| Filter | Blue and Green Filter | Yes |
| Phase Contrast Kit | Turret Phase Contrast Kit | Optional |
| Polarization Set | Simple Polarization Attachment | Optional |
| Dark-field Attachment | Dark-field Condenser(Dry) | Optional |
| Dark-field Condenser(Oil) | Optional |
| Pointer | LED Pointer | Optional |
| Software | ScopeImage 9.0 | Yes |
| Note: Yes Standard Outfit, Optional Standard Optional |
|
