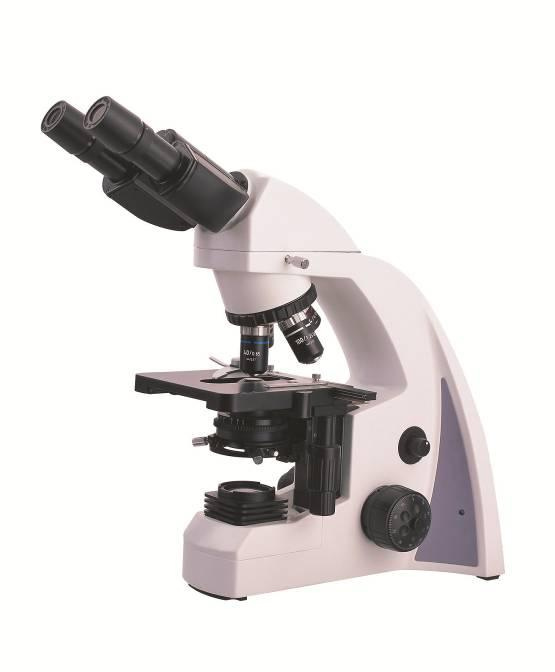

Bestscope Bs-2040b Biological Microscope
Product Specifications
| Prod Model: |
BS-2040B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Number Of Cylinder: |
Binoculars |
| Type: |
Biological |
Product Description
Introduction
With precision machining equipment and advanced alignment technology, BS-2040 series binocular and trinocular microscopes are classical biological microscopes. Infinite Optional system offers very high quality images. Digital cameras can be added to the trinocular head or eyepiece tube for digital image capture and analysis.Features
1. Infinite Optional System.
2. Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment is optional.
3. Sliding-in Centerable Condenser.
4. Easy carrying Handle.Applications
BS-2040 binocular and trinocular microscopes are ideal instrument in biological, histological, pathological field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities. Sample Images
|
Specification |
|
|
|
Model |
|
BS-2040B |
|
Optional System |
Infinite Optional System |
Yes |
|
Viewing Head |
Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm |
Yes |
|
|
Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm |
|
|
Eyepiece |
Wide Field Eyepiece WF 10×/18 |
Yes |
|
|
Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment |
Optional |
|
Objective |
Infinite Semi-plan Achromatic Objectives |
4× |
Yes |
|
|
|
10× |
Yes |
|
|
|
40× |
Yes |
|
|
|
100× |
Yes |
|
|
Infinite Semi-plan Achromatic Objectives 20×, 60× |
Optional |
|
|
Infinitive Plan Achromatic Objectives 4×, 10×, 20×, 40×, 60×, 100× |
Optional |
|
Nosepiece |
Backward Quadruple Nosepiece |
Yes |
|
|
Backward Quintuple Nosepiece |
Optional |
|
Stage |
Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm |
Yes |
|
Condenser |
Sliding-in Centerable Condenser NA1.25 |
Yes |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
Yes |
|
Illumination |
3W LED Lamp, Brightness Adjustable |
Yes |
|
|
6V/20W Halogen Lamp, Brightness Adjustable |
Optional |
|
Optional accessories |
Phase Contrast Kit |
Optional |
|
|
Dark Field Attachment |
Optional |
|
|
YX-2 Epi-fluorescent Attachment |
Optional |
|
|
FL-LED Epi-fluorescent Attachment |
Optional |
|
Package |
1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg |
Yes |
|
Note: Yes Standard Outfit, Optional Standard Optional |
|
