Bestscope Bs-5060b Polarizing Microscope
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Product Specifications
| Prod Model: |
BS-5060B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Number Of Cylinder: |
Binoculars |
| Type: |
Polarizing Microscope |
Product Description
Introduction

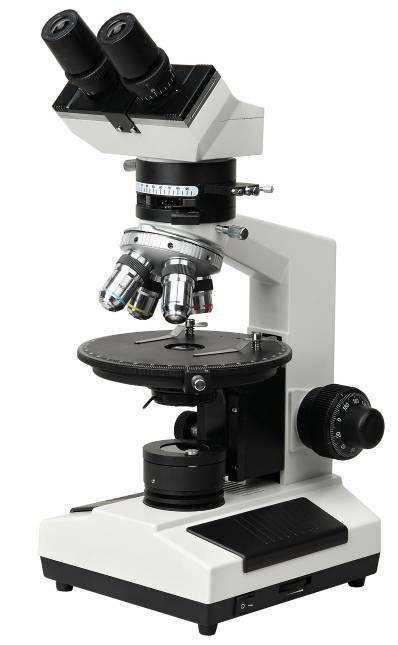

The BS-5060B is equipped with a smooth, rotating, graduated stage and a set of polarisers that allow observation of all types of transmitted light polarized specimens such as thin sections of minerals, polymers, crystals and particulates.
It is equipped with a comfortable viewing, adjustable binocular head and a fine set of achromatic objectives giving a magnification range of 40X 400X. The analyser mounted in the head is retractable and the polariser is mounted over the collector near the lamp and is rotatable though 360deg. The microscope is also supplied with a rack and pinion mounted, adjustable condenser with a 20W illumination source and coarse/fine focus knobs with limit stoppers and tension adjustment.Features
1. Easy to operate.
2. Eyepiece with Scale of Crosshair, easy to analyze.
3. With polarizing accessories.Application area
With the features of easy operation, complete functions and economy, it is an ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and scientific research.Sample Images
|
Specification |
|
|
|
|
|
BS-5060B |
|
Viewing Head |
Sliding Binocular Head at 45°, 360° Rotatable |
Yes |
|
|
Sliding Trinocular Head at 45°, 360°Rotatable |
|
|
Eyepiece |
Eyepiece WF10×/ 18 with Scale of Crosshair |
Yes |
|
|
Eyepiece WF10×/ 18 |
Yes |
|
Objective |
Strain free Achromatic Objective 4×, 10×, 40× |
Yes |
|
Nosepiece |
Toward Quadruple Nosepiece, Center Adjustable |
Yes |
|
Analyzer |
Rotatable Analyzer with Gradation 0°-90° |
Yes |
|
Bertrand Lens |
Bertrand Lens, Sliding in/ out of Optional Path |
Yes |
|
Optional Compensator |
λ Slip(first class red) |
Yes |
|
|
1/ 4λ Slip |
Yes |
|
|
Quartz wedge |
Yes |
Revolving
Round Stage |
Diameter Φ160mm, Graduated in1° Increments, Minimum Resolution 6' when using Vernier Scale |
Yes |
|
Condenser |
Abbe Condenser with Iris Diaphragm & Filter |
Yes |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm |
Yes |
|
Polarizer |
Sliding in/ out of Optional Path, Located on the Top of Collector |
Yes |
|
Illumination |
6V/ 20W Halogen Lamp, Brightness Adjustable |
Yes |
|
|
|
Note: Yes Standard Outfit, Optional Standard Optional |
Yes |
