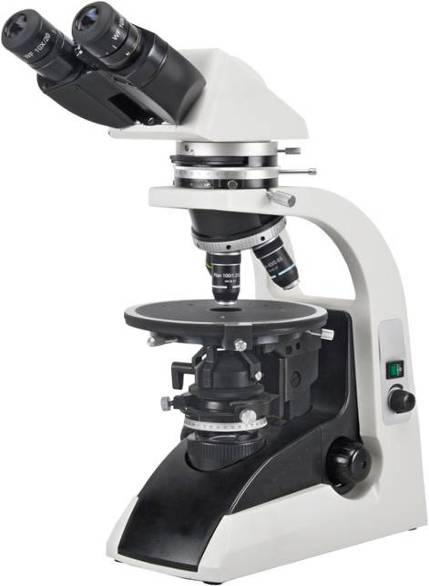

Bestscope Bs-5070b Polarizing Microscope
Product Specifications
| Prod Model: |
BS-5070B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Number Of Cylinder: |
Binoculars |
| Type: |
Polarizing Microscope |
Product Description
Introduction
The BS-5070B polarizing microscopes are specifically designed for geology, minerals, metallurgy, university teaching laboratories and other sectors. They also can be used in chemical fiber industry, semiconductor industry and pharmaceutical inspection industry. BS-5070 polarizing microscope features a highly robust construction and first class optics designed to provide a long life and excellent quality images. The microscopes can be used for Single polarization, othorgonal polarization and conoscopic observation. Digital camera can be used together with the microscope for image analysis. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available.Features
1. Excellent Infinite Optional System.
2. Widely used in geology, Mineralogy, Fossil fuel exploration.
3. Single polarization, othorgonal polarization or conoscopic observation is available.
4. Transmitted and reflected illumination system of BS-5070BTR and BS-5070TTR offers a much better effect and wider application.Application area
With the features of easy operation, complete functions and economy, it is an ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. It is also widely used in academic demonstration and scientific research area.
|
Specification |
|
|
Model |
BS-5070B |
|
Optional System |
Infinite Optional System |
Yes |
|
Viewing Head |
Seidentopf Binocular Viewing Head, inclined at 30°, 360° Rotatable |
Yes |
|
|
Seidentopf Trinocular Viewing Head, inclined at 30°, 360° Rotatable |
|
|
Eyepiece |
WF10×/ 20 with scale of cross hair |
Yes |
|
|
WF10×/ 20 with graticule |
Yes |
|
|
WF10×/ 20 |
Yes |
|
|
WF20×/12 |
Optional |
|
Infinite strain free plan achromatic objective |
Objective 4×, 10× for Reflected/Transmitted System |
Yes |
|
|
Objective 20×, 40×, 60× for Transmitted System |
Yes |
|
|
Objective 20×, 40×, 60× for Reflected System |
Optional |
|
Nosepiece |
Backward quadruple nosepiece, center adjustable |
Yes |
|
Epi-Illumination |
12V/50W halogen lamp with iris aperture diaphragm and iris field diaphragm, brightness adjustable |
|
|
Analyzer |
Rotatable analyzer with gradation 0°-360° |
Yes |
|
Bertrand Lens |
Bertrand lens, focus/center adjustable sliding in/out of Optional path |
Yes |
|
Optional Compensator |
λ Slip (first class red), 1/ 4λ Slip, Quartz wedge |
Yes |
Revolving
Round Stage |
Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6' when using vernier scale |
Yes |
|
Condenser |
NA 0.9 Abbe Condenser with Iris Diaphragm & Filter |
Yes |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Range 24mm, Fine Division 0.002mm |
Yes |
|
Polarizer |
360°Rotatable |
Yes |
Transmitted
Illumination |
12V/ 30W Halogen Lamp, Brightness Adjustable |
Yes |
|
Accessories |
C mount 0.4× |
Optional |
|
|
SLR Camera adapter 2× |
Optional |
|
|

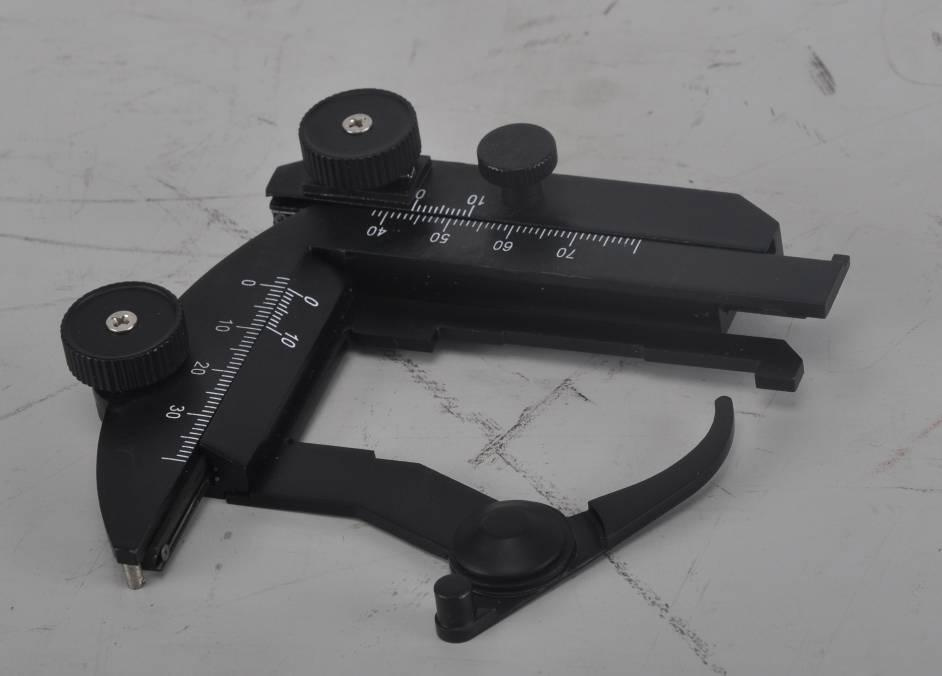

Mechanical stage moving rang 30×40mm |
Yes |
|
|
Specimen presser |
Optional |
|
|
Micrometer |
Yes |
|
|
Color correction filter |
Yes |
|
|
Blue filter |
Optional |
|
Note: Yes Standard Outfit, Optional Standard Optional |
|
