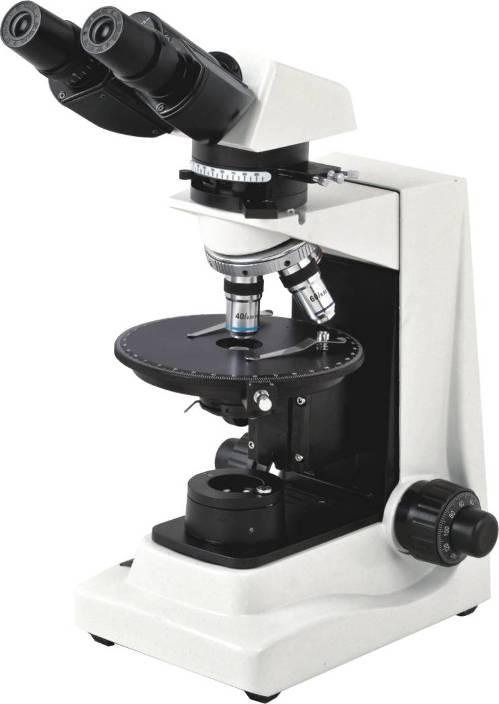

Bestscope Bs-5080t Polarizing Microscope
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
Product Specifications
| Prod Model: |
BS-5080T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Principle: |
Optics |
| Mobility: |
Desktop |
| Number Of Cylinder: |
Binoculars |
| Type: |
Polarizing Microscope |
Product Description
Introduction
The BS-5080T polarizing microscopes feature a highly robust construction and first class optics designed to provide a long life and excellent quality images. A set of inserts allow viewing of all standard mineral types. The optics is also fully corrected so that changes in the viewing angle from the prism in the head during interocular distance adjustments does not cause any color changes.Features
0°-90° Rotatable Analyzer and when out of Optional path, Single Polarizing Observation is Available. With Bertrand, Interferogram of Specimen can be observed clearly. λ Slip,1/4λ Slip and Quartz Wedge are Equipped
Polarizer can be Swung out of Optional Path.6V/ 20W Halogen Lamp Illumination, Brightness Adjustable
Application area

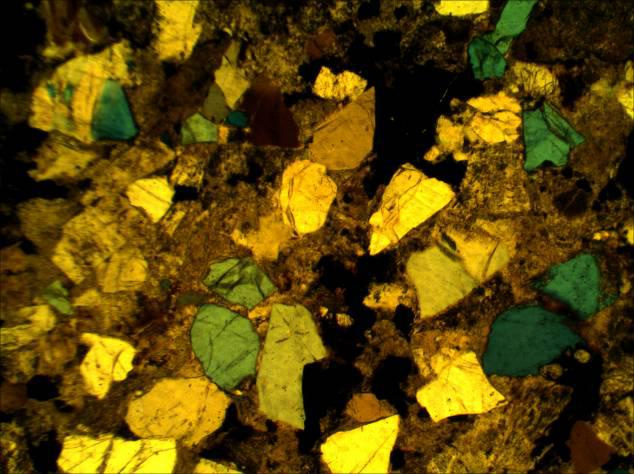

With the features of streamline and stable frame, easy operation and complete functions, polarizing microscope BS-5080T is the best choice for user to observe mineral crystal figure, color and interference color and also exactly identify the Optional performance of mineral and other crystal specimen.Sample Images
|
Specification |
|
|
|
Model |
|
BS-5080T |
|
Viewing Head |
Seidentopf Binocular Head at 30°, 360° Rotatable |
Yes |
|
|
Seidentopf Trinocular Head at 30°, 360° Rotatable |
|
|
Eyepiece |
Eyepiece WF10×/ 18 with Scale of Crosshair |
Yes |
|
|
Eyepiece WF10×/ 18 |
Yes |
|
Objective |
Strain free Achromatic Objective 4×, 10×, 40×, 60× |
Yes |
|
Nosepiece |
Backward Quadruple Nosepiece, Center Adjustable |
Yes |
|
Analyzer |
Rotatable Analyzer with Gradation 0°-90° |
Yes |
|
Bertrand Lens |
Bertrand Lens, Sliding in/out of Optional Path |
Yes |
|
Optional Compensator |
λ Slip(first class red), 1/ 4λ Slip, Quartz Wedge |
Yes |
|
Revolving Round Stage |
Diameter Φ160mm, Graduated in 1°Increments, Minimum Resolution 6' when using Vernier Scale |
Yes |
|
Condenser |
NA1.25 Abbe Condenser with Iris Diaphragm & Filter |
Yes |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm |
Yes |
|
Polarizer |
Sliding in/ out of Optional Path, Located on the Top of Collector |
Yes |
|
Illumination |
6V/ 20W Halogen Lamp, Brightness Adjustable |
Yes |
|
Note : Yes Standard Outfit, Optional Standard Optional |
|
