Product Specifications
| Prod Model: |
BS-6010R/TR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Metallurgical Microscope |
| Optional System: |
Infinite Optional System |
| Nosepiece: |
Backward Quintuple Nosepiece |
| Focusing: |
Coaxial Coarse & Fine Adjustment |
| Magnification: |
500-1000X |
| Type: |
Metallographic |
| Number Of Cylinder: |
Binoculars |
| Mobility: |
Desktop |
| Principle: |
Optics |
Product Description
Introduction

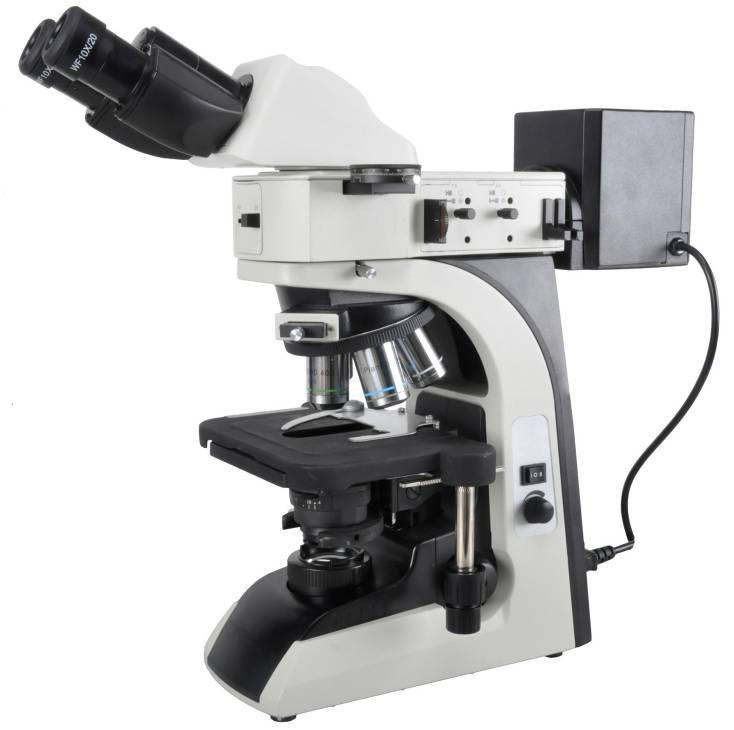

BS-6010R/TR Metallurgical Microscopes are high level metallurgical microscopes with Reflected / Transmitted & Reflected illumination system, they not only can be used to identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also can be applied to micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.
Features
1. Infinite Optional system provides excellent Optional functions.
2. Laboratory metallurgical microscope, including bright field, dark field, polarization and DIC observation system.
3. Powerful transmitted and reflected system with Kohler illumination.
4. Ideal instrument for industry inspection and science research.
Application
BS-6010R/TR is widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.
| Specification |
| Model |
| BS-6010BR | BS-6010BTR |
| Optional System | Infinite Optional system | Yes | Yes |
| Viewing Head | Siedentopf binocular viewing head, inclined at 30°,
interpupillary distance 48-75mm | Yes | Yes |
Siedentopf trinocular viewing head, inclined at 30°,
interpupillary distance 48-75mm | Optional | Optional |
Extra Wide Field
Eyepiece | WF10×/22 | Yes | Yes |
| WF10×/22 Eyepiece with scale of cross hair | Yes | Yes |
| EW15×/16 | Optional | Optional |
| EW20×/12 | Optional | Optional |
Infinite Plan
Achromatic Objective | 5×/0.12/∞/- (BF/DF) LWD 10mm | Yes | Yes |
| 10×/0.25/∞/- (BF/DF) LWD 10mm | Yes | Yes |
| 20×/0.40/∞/0 (BF/DF) LWD 5.0mm | Yes | Yes |
| 50×/0.75/∞/0 (BF/DF) LWD 1.3mm | Yes | Yes |
| 100×/0.90(Dry)/∞/0 (BF) LWD 0.7mm | Yes | Yes |
| 40×/0.65/∞/0.17 (BF) WD 0.6mm |
| Yes |
| 100×/1.25/∞/0.17 (BF) WD 0.16mm |
| Yes |
| Nosepiece | Backward quintuple nosepiece | Yes | Yes |
| Stage | Double layer mechanical stage 216×150mm,
Moving range 78×54mm |
| Yes |
Double layer mechanical stage 188×148mm,
Moving range 78×54mm | Yes |
|
| Focusing | Coaxial coarse & fine adjustment, fine division 2μm,
moving range 30mm | Yes | Yes |
| Kohler Illumination | Reflected 12V/50W Halogen light,
Center and brightness adjustable | Yes | Yes |
Transmitted 12V/20W Halogen light,
Center and brightness adjustable |
| Yes |
| Polarizer and analyzer | Yes | Yes |
| DIC attachment | Optional | Optional |
| Green, Gray and Frosted filter | Yes | Yes |
| Accessories | Specimen Presser | Optional | Optional |
| Photo Attachment | Optional | Optional |
| Video adapter with C mount | Optional | Optional |
| Micrometer scale 0.01mm | Yes | Yes |
| Note: Yes Standard Outfit Optional Standard Optional |
