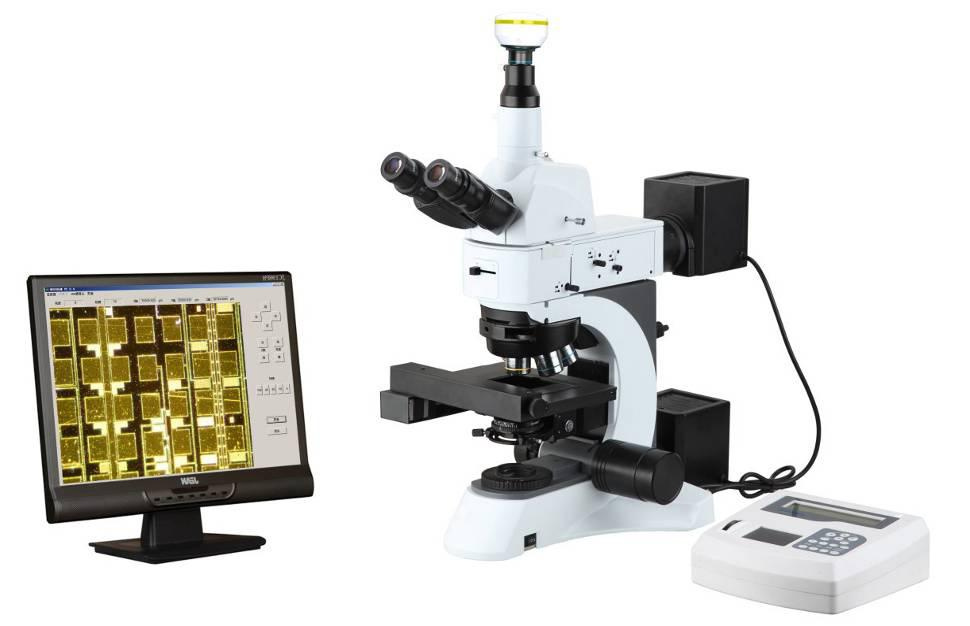

Bestscope BS-6020D Automatic Metallurgical Microscope

Name: Bestscope BS-6020D Automatic Metallurgical Microscope
Brand: China-Manufacturer-Directory.com
SKU: 685515632
Availability: InStock
Rating: 4.8 (129 reviews)

Supplier:	Catchbest Vision Technology (Beijing) Co., Ltd.
Price:	US $ 1000-3000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BS-6020D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optional System:	Infinite Optional System
Viewing Head:	Siedentopf Trinocular Viewing Head
Nosepiece:	Motorized Backward Quintuple Nosepiece
Focusing:	Uto Focus
Magnification:	500-1000X
Type:	Metallographic
Number Of Cylinder:	≥Three
Mobility:	Desktop
Principle:	Optics

Product Description

Introduction
BS-6020DRF/DTRF Motorized Auto-Focus Metallurgical microscopes, which integrate the advantages of microscopes area and auto controlling area, achieve the automation of microscopes in laboratory. With excellent Optional and motorized controlling system, ingenious stand and convenient operation, they will be your best choice.

Features
1. Four motor drive, objective nosepiece, stage and coarse & fine focus adjustment can be controlled manually or motorized.
2. Brightness of halogen lamp is divided in to 100 steps(0-99), which can be controlled by the digital controller.
3. 3.2MP digital camera system, USB2.0 plug and play, real-time preview can be up to 30 frames/sec.
4. Built-in dynamic focusing system, auto-focus without computer.
5. High precision positioning leading screw stage, quickly find the clearest images by auto-focus. Auto slide scanning and recognizing are controlled by the computer.
6. Network remote control system for real-time teaching, sharing, communication and etc.

Application
BS-6020DRF/DTRF can be used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be used in electronics, chemical and instrumentation industry to observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Specification
Model		BS-6020DRF	BS-6020DTRF
Optional System	Infinite Optional system	Yes	Yes
Viewing Head	Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm	Yes	Yes
Eyepiece	Extral wide field eyepiece EW10×/22, eyepiece tube Φ30mm	Yes	Yes
Camera System	Colorful 3.2 Mega Pixel CMOS Sensor	Yes	Yes
	Resolution: 2048×1536	Yes	Yes
	Pixel Size: 3.2μm × 3.2μm	Yes	Yes
	Maximum frame rate: 2048×1536 12f/s 1600×1200 20f/s 1280×1024 27f/s 1024×768 43f/s	Yes	Yes
	Sensitivity: 1.0V/lux-sec(550nm)	Yes	Yes
	Exposure: Manual / auto exposure, time adjustable	Yes	Yes
	SNR: >43dB	Yes	Yes
Nosepiece	Motorized backward quintuple nosepiece	Yes	Yes
BF/DF adapter	2pcs BF/DF adapter		Yes
Infinite Plan Achromatic Objective	5×/ 0.12/∞/ - (BF/DF) WD 12mm	Yes	Yes
	10×/ 0.25/∞/ - (BF/DF) WD 10.0mm	Yes	Yes
	20×/ 0.4/∞/ 0 (BF/DF) WD 4.3mm	Yes	Yes
	50×/ 0.75/∞/ 0 (BF/DF) WD 0.32mm	Yes	Yes
	100×/ 0.8/∞/ 0 (BF/DF) WD 2mm	Yes	Yes
	40×/ 0.65/∞/ 0.17 WD 0.54mm		Yes
	100×/ 1.25/∞/ 0.17 WD 0.13mm		Yes
	40×/ 0.6/∞/ 0 (BF/DF) WD 2.9mm	Optional	Optional
Maximum Sample Height	30mm	Yes	Yes
Reflected Light	24V/100W Halogen light, Brightness adjustable	Yes	Yes
	Kohler illumination and aspherical condenser	Yes	Yes
	Polarizer and analyzer	Optional	Optional
	An integrate device for polarizer and analyzer	Optional	Optional
	Blue, Green, Yellow and Frosted filter	Yes	Yes
Transmitted Light	Swing-out condenser NA0.9/ 0.25		Yes
	24V/100W Halogen light and aspherical condenser		Yes
	Blue filter		Yes
Filter	ND25, ND6	Optional	Optional
Focusing	Auto focus, fine focus<1μm	Yes	Yes
Stage	Leading screw stage, precision<1μm	Yes	Yes
	Specimen holder	Yes	Yes
	Specimen preparation plate	Yes	Yes
	Slide glass	Optional	Yes
Hardware	Motorized auto-focus controller	Yes	Yes
	USB2.0 cable	Yes	Yes
	USB Dog	Optional	Optional
	9-PIN Control cable	Yes	Yes
	15-PIN Control cable	Yes	Yes
	25-PIN Control cable	Yes	Yes
	9-PIN Serial Port cable	Yes	Yes
	3.5mm auto-focus signal cable	Yes	Yes
	Power adapter	Yes	Yes
	Computer	Optional	Optional
	Motorized Auto-Focus Microscope Controlling Software	Yes	Yes
Optional Accessories	Specimen Presser	Optional	Optional
	0.01mm Micrometer	Optional	Optional
	Photo Attachment	Optional	Optional
	Video Attachment, C Mount 1×, 0.5×	Optional	Optional
Note: Yes Standard Outfit, Optional Standard Optional
