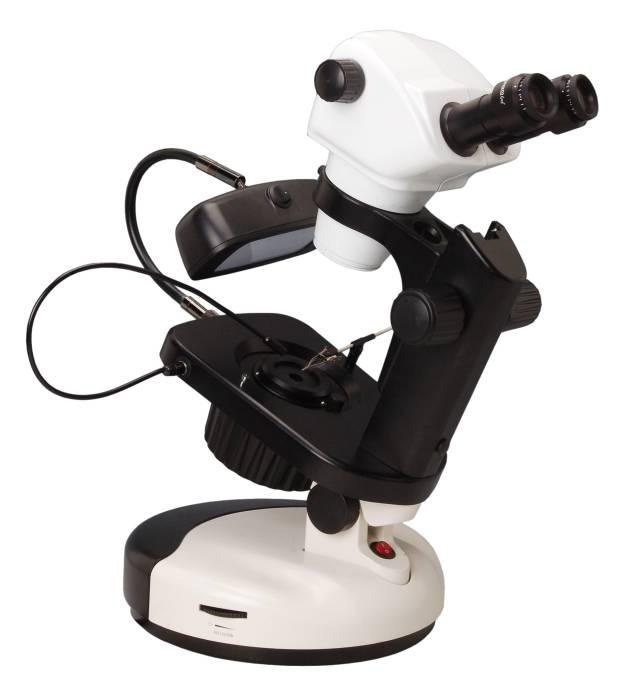

Bestscope BS-8060 Gemological Microscope with Fluorescent Light Source
Product Specifications
| Prod Model: |
BS-8060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Gemological Microscope |
| Gem Clamp: |
High Quality Steel Clamp |
| Stand: |
0-38 Degree Rotatable |
| Eyepiece: |
Extra Wide Field Eyepiece Wf15X/16 |
| Magnification: |
<50X |
| Mobility: |
Desktop |
| Principle: |
Optics |
| Type: |
Gemological Microscope |
Product Description
Introduction
A gemological microscope is the microscope used by jewelers and gem stone experts, the gemological microscope is the most important tool in their jobs. BS-8060 gemological microscope is especially designed to view precious stone samples and the pieces of jewelry that contain them. This microscope is equipped with multiple illumination systems to enhance the image of the samples.
Features
1. Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and even fluorescent light source. It is a high level professional gemological microscope.
2. Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.
Application area
BS-8060 gemological microscope is a precision microscope that are capable of inspecting diamonds, emeralds, rubies, and all other types of precious stones. It is usually used to inspect the authenticity of gemstones and design, produce and repair of jewelry.
| Specifications |
|
|
|
| Model | BS-8060B | BS-8060T | BS-8060BD |
| Viewing Head | Binocular Viewing Head, Inclined at 45° | Yes |
|
|
| Trinocular Viewing Head, Inclined at 45° |
| Yes |
|
| Digital Viewing Head, Inclined at 45°, 3.2MP(2048×1536) |
|
| Yes |
| Eyepiece | Extra wide field eyepiece WF15×/16 with diopter adjustment | Yes | Yes | Yes |
Stereo Zoom
Body | Zoom ratio 0.8×-5×, zoom ratio 1:6.3, working distance
115mm | Yes | Yes | Yes |
Bright & Dark
Field Illumination | Iris diaphragm 2mm41mm, Bright and dark viewing field
illumination are adjustable | Yes | Yes | Yes |
| Illumination | 7W Fluorescent lamp | Yes | Yes | Yes |
| LED Point Light | Yes | Yes | Yes |
| 6V/20W Halogen illumination, lamp can be changed | Yes | Yes | Yes |
| Focusing | Focusing range: 100mm, it is suitable for observing
different size gem and sample | Yes | Yes | Yes |
| Gem Clamp | High quality steel clamp is perfect to hold the gem for
observation from all directions | Yes | Yes | Yes |
| Stage | At both side, there are two gem clamp fixing holds for
you to choose | Yes | Yes | Yes |
| Stand | 0-38°Rotatable, so the height and angle of eyepiece can
be adjusted, easy to operate | Yes | Yes | Yes |
| Base | 0-325° Rotatable | Yes | Yes | Yes |
| Note: Yes Standard Outfit, Optional Standard Optional |
