Product Specifications
| Prod Model: |
BSC-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Comparison Microscope |
| Total Optional Magnification: |
5X~120X |
| Viewing Head: |
Seidentopf Trinocular Head |
| Video Adapter: |
C -Mount for Digital Cameras |
| Magnification: |
50-100X |
| Number Of Cylinder: |
≥Three |
| Mobility: |
Desktop |
| Principle: |
Optics |
| Type: |
Comparison Microscope |
Product Description
Introduction

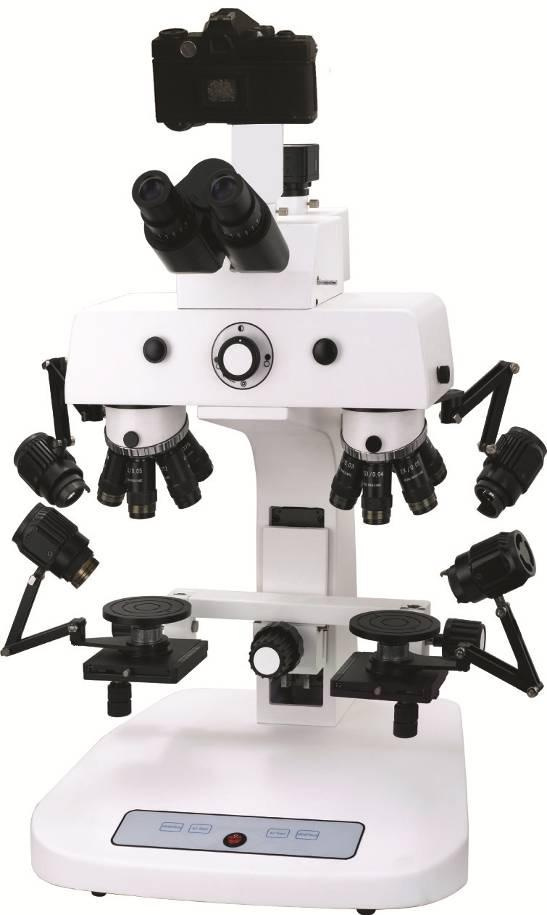

BSC-300 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, jointing and overlapping methods, two (or more two) objects can be compared together. BSC-300 has clear image, high resolution, and can identify tiny differences between objects accurately. It is basically used for forensic science and police departments.
BSC-300 has excellent Optional performance and complete comparison function, it is suitable for various comparison demands, so it has a very wide range of applications.
Features
1. Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
2. With sextuple nosepiece, comes with 0.5× , 1× , 1.5× , 2× , 4× , 6× Objectives, nosepiece has stop clicks, comfortable to change the objectives.
3. Stage size: 100mm× 100mm, Moving range: The transverse, longitudinal, vertical directions are 0-62mm, horizontal rotation 0 ° -360 ° , stage inclined to any direction of 0 ° - 60 ° .
4. Two stages can be adjusted horizontally at the same time, moving range: 0-62mm.
5. Coarse lifting range of 0 - 62mm.
6. Equipped with 12V/50W air-cooled lamps, large power LED lamps, light intensity is adjustable.
7. Polarizing attachment, used to eliminate stray and glare light.
8. Coaxial illumination device, used for observation of deep hole, small hole and smooth surface.
9. With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.
10. With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.
Application
BSC-300 is the ideal device for Public Security Bureaus, procuratorates, courts and their colleges to compare and identify the bullet, tool marks, fingerprints, seals, text, signatures, drawings, and bank notes. It also can be applied to electronic, biochemical, agriculture, archaeology, banking, Customs and industries or sectors who have the requirements to detect or identify objects.
| Specification |
|
| Model | BSC-300 |
| Total Optional Magnification | 5×~120× | Yes |
| Viewing Head | Seidentopf Trinocular Head, Inclined at 45°, Interpupilary
Distance 55-75mm | Yes |
| Eyepiece | Wide Field Eyepiece WF10×/ 22, diopter adjustment | Yes |
| Wide Field Eyepiece WF20×/ 12, diopter adjustment | Yes |
| Field of View | Φ2mm~Φ60mm |
|
| Comparison Mode | Left or Right single view field observation, overlapping view
field observation, segmentation and jointing view field observation | Yes |
| Objective | 0.5×, 1×, 1.5×, 2×, 4×, 6× | Yes |
| Nosepiece | Sextuple nosepiece | Yes |
| Stage | Manually operate stage, moving range: X-62mm, Y-62mm, Z-62mm | Yes |
Two stage horizontal moving range: 62mm, The coarse vertical
lifting range: 62mm | Yes |
| Illumination | High power LED illumination, brightness and angel adjustable | Yes |
| Side illumination, 12V/50W air cooled reflecting lamps | Yes |
| Polarizing attachment | Optional |
| Coaxial illumination device | Optional |
| Photo Attachment | Photo attachment for DSLR digital camera(Nikon, Canon) | Yes |
| Video Adapter | C -mount for digital cameras | Yes |
| Eyepieces and Objective Parameters |
| Objective | Magnification/FOV(mm) | Working Distance
(mm) |
| 10× Eyepiece | 20× Eyepiece |
| 0.5× | 5×/Φ60 | 10×/Φ24 | 143 |
| 1× | 10×/Φ21 | 20×/Φ12 | 102 |
| 1.5× | 15×/Φ15 | 30×/Φ8 |
| 2× | 20×/Φ11 | 40×/Φ6 |
| 4× | 40×/Φ6 | 80×/Φ3 |
| 6× | 60×/Φ3.9 | 120×/Φ2 |
| Dimension: 39(L) ×38(W) ×70(H)cm |
