Beverage Machine

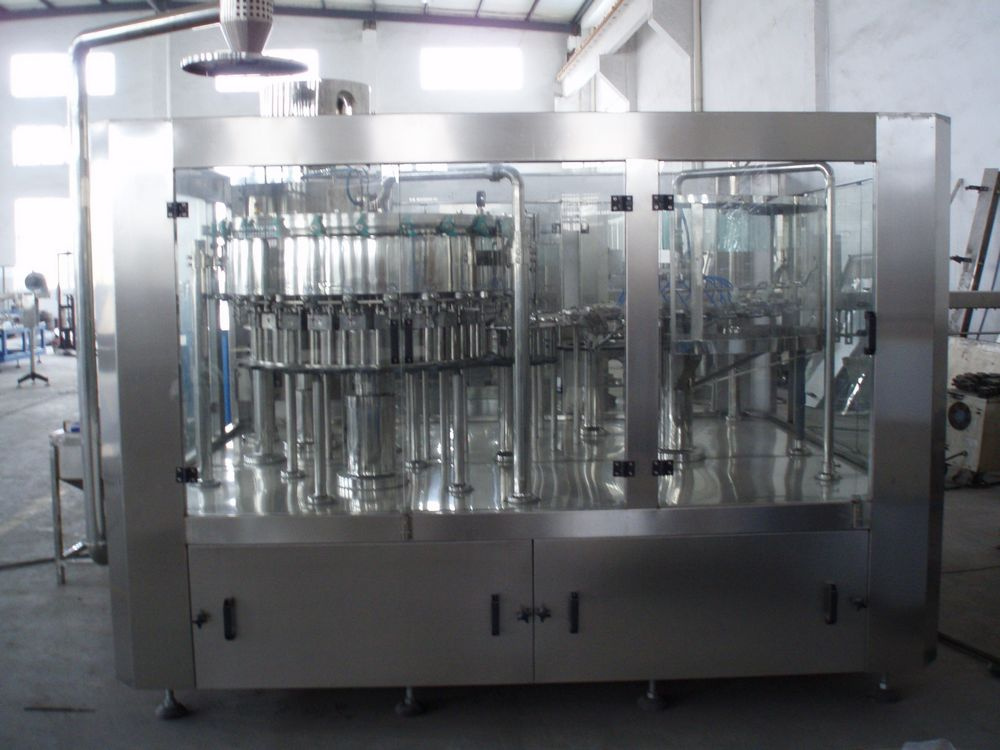

Name: Beverage Machine
Brand: China-Manufacturer-Directory.com
SKU: 715530415
Availability: InStock
Rating: 4.6 (64 reviews)

Supplier:	Zhangjiagang Fillex Packaging Machinery Co., Ltd.
Price:	US $ 50000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	RFC-W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Category:	Beverage Processing Machine
Processing Type:	Filling Machine
Type:	Volumetric Filling Machine
Automatic Grade:	Automatic
Material Type:	Liquid
Filling Valve Head:	Multi-Head
Feed Cylinder Structure:	Single-Room Feeding
Structure:	Rotary
Packaging Type:	Bottle
Packaging Material:	Aluminum Foil
Dosing Device:	Normal
Filling Principle:	Gravity Filling
Packaging Container Lifting Structure:	Normal

Product Description

Non-Alcohol Beverage Machine

Specifications
Capacity is 3000-20000b/h.
Filling size: 250ml-2.25L PET bottle

Components
1). Driving system
2). Bottle-loading system
3). Bottle-rinsing system
4). Transmittal system between rinsing and filling
5). Filling system
6). Transmittal system between filling and capping
7). Capping system
8). Cap-unscrambling system
9). Bottle-unloading system
10). Frame
11). Electrical system.

Technical Specifications for water filling(bottling) Machines
Model(RFC-W)	8-8-3	16-12-6	18-18-6	24-24-8	32-32-10		40-40-12
The number of Washing, Filling, Capping	8-8-3	16-12-6	18-18-6	24-24-8	32-32-10		40-40-12
Producing capacity; The number of bottle(500ml)/hour	3000	4000	6000	10000	15000		18000
Applicable bottle specifications (mm)	φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2)	About 2~3
Motor power (kw)	1.1kw	1.5kw	2kw	3kw		5.5		6.5
Outside vacuum pump power (kw)	0.55	0.75	1.2	1.5		2.2		2.25
Overall dimension (mm) (LxWxH)	1650x1400x2300	1950x1620x2300	2200x1800x2350	2600x2100x2350		3200x2500x2350		3900x2200x2350
Weight(kg)	1500	2000	2500	3000		4500		5500

FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.

Built in 2006, Fillex have 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.

Fillex Manufacture & Provide below filling & treatment system

LPET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)

L1-2 & 3-5 Gallon Jar Bottle Water Plant

LBottle, Kind of Container Labeling Solutions

LWater Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
