Product Specifications
| Prod Model: |
BFS-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nozzle Quantity: |
2 Filling Nozzles |
| Max Forming Depth: |
12mm |
| Cutting Frequency: |
0-25 Times |
| Film Material: |
PVC/PE (0.2-0.4)*120mm |
| Ampoule Size: |
2-30ml/PC |
| Dimension (L*W*H): |
1300*1700*750 (mm) |
| Power: |
220V-380V/50Hz 3.5kw |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Fully Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Dosing Device: |
Plunger |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Linear |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
Product Description
Main features:
1. Controlled by PLC, the frequency conversion in finitely variable speeds.
2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end, printing serial numbers, cutting the end, cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head doesn't drop. leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and wirings adopt inward fittings.
7. Automatic and mechanical bottling, precise calculation and limited deflection.
Main Technical Data:
| Model | BFS-120 (2 Filling Nozzles) | BFS-240 (5 Filling Nozzles) |
| Max forming depth | 12mm |
| Cutting frequency | 0-25 times |
| Film material | PVC/PE (0.2-0.4)×120mm |
| Production capacity | 2-30ml/pc |
| Installed power | 3.5kw |
| Voltage | 220v-380v/50Hz |
| Weight(kg) | 300kg | 450kg |
| Dimension (L×W×H; mm) | 1300×1700×750 (mm) | 2200*900*1500 (mm) |

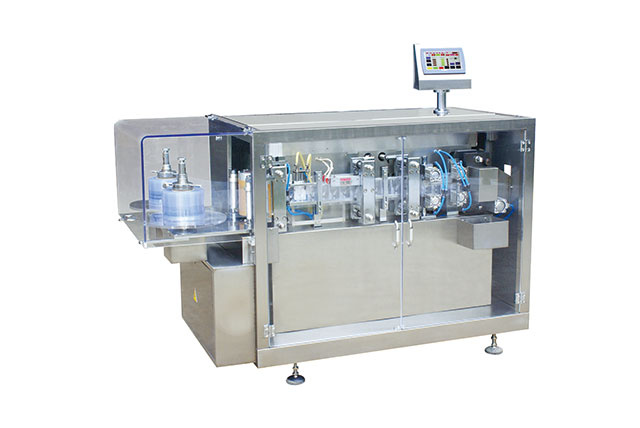

BFS-120 Plastic Ampoule Forming Filling and Sealing Machine
