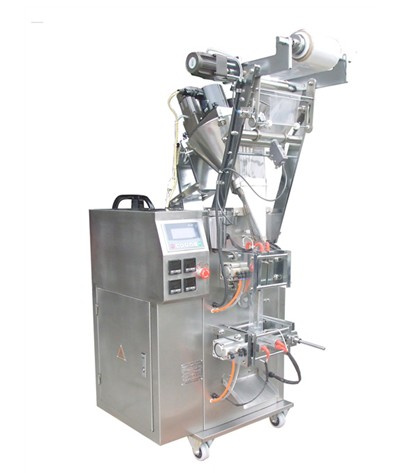

Product Specifications
| Prod Model: |
DXD-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed (Bag/Min): |
30~60 |
| Filling Capacity (Ml): |
1~50g |
| Seal Style: |
3-Side/4-Side |
| Measuring Method: |
Screw |
| Power (Kw): |
1.1 |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Single-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Dosing Device: |
Rotor |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Linear |
| Packaging Type: |
Bag |
| Packaging Material: |
Plastic |
Product Description
Function:
The process of measuring, bag making, filling, sealing, printing and cutting can be done automatically.
The packaging machine can pack many kinds of material such as grain, powder, liquid and tablet, etc.
Packaging Material:
Various Laminate Film, for example: Polypropylene / Polythene, Polyester/Aluminum foil/Polythene, polyester/Aluminum-plating/Polythene, Nylon/ Polythene,Polyester/Polythene, etc.
Technical Features:
1 It has key switch and digital display to achieve reliable and easy operation.
2 Step motor is applied in bag-making system with high precision.
3 With automatically intelligence tracking system, it can get rid of fake color mark, self-positioning and length fixing automatically.
4 The temperature is controlled intelligently by both heat-sealers.
| MODEL | Speed
(Bag/min) | Filling
Capacity
(ml) | Bag Size Range
(mm) | Seal Style | Measuring
Method | Power
(Kw) | Weight
(Kg) | Dimension
L×W×H (mm) |
Packing Machine
DXD 80 | 30~60 | 1~50ml | (L) 50~120
(W) 40~80 | 3-side/4-side | Screw | 1.1 | 185 | 730×630×1580 |
1. The above machine may be changed into 4-side-sealing and equipped with hot stamp-imprinting machine.
2. It is choice to be shaking matter-delivering mechanism, stirring mechanism, hackle cutters, point line cutters, easy-tearing cutters and exhaust.
3. It is choice to be both heat-sealing mechanism and net or even heat-sealing channel veins.
4. Liquid packaging machines can choose antisepsis-measuring mechanism (Aim at pesticide industry).
5. The machine that has special bag-size or measuring requirement can be devised and produced specially.
We are professional pharmaceutical machinery manufacturer and exporter in China. Our main products are tablet press, blister packing machine, bag packing machine, colloid mill, mixer, capsule filling machine, coater, dryer, granulator, labeling machine and etc. All tasks from casting to metal machining, and general assembly are accomplished by itself. ZP-37 tablet press, DPP25 Blister Packing Machine and Fully Automatic Bottling and Packing line and so on all meet with GMP standard, which are on behalf of tablet press product developing direction and win the certificates for Shanghai excellent science technology products.
With wonderful reputation, our products have been sold through out China and have exported to many foreign countries and regions around the world such as Australia, USA, Canada, Malysia, Bulgaria, Russia and etc.
Welcome to contact us, all enquiries from all customers both at home and abroad will be highly appreciated by us and we are sure that you will get a satisfactory answer once we get your enquiry.
