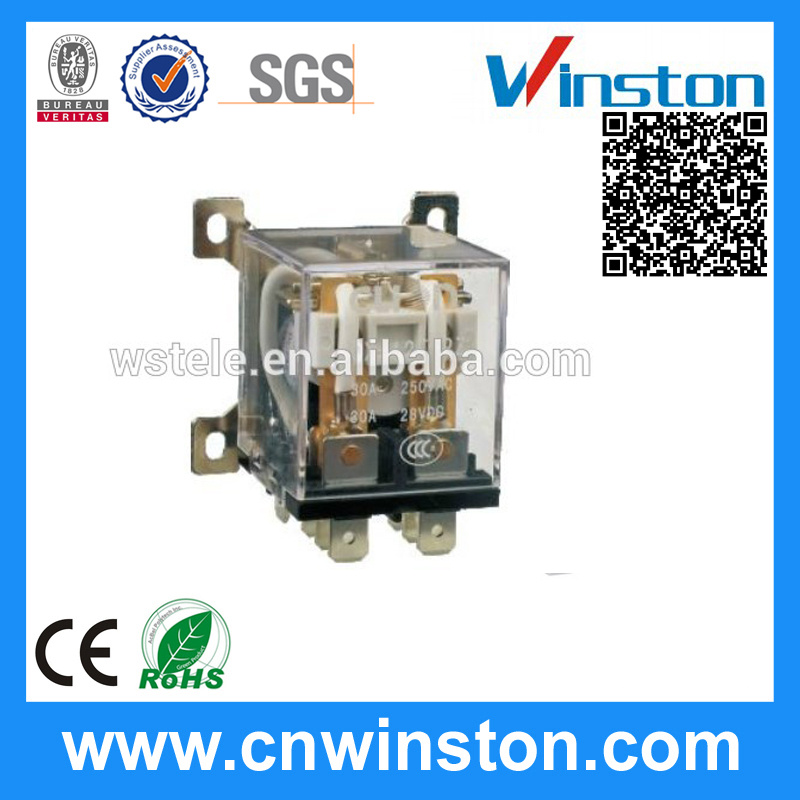

Bigelectromagnetic Relay Power Relay with CE

Name: Bigelectromagnetic Relay Power Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 744845515
Availability: InStock
Rating: 4.4 (128 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 3.2-5.8/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JQX-12F
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Current:	40A
Brand:	Winston
Protect Feature:	Sealed
Contact Load:	High Power
Contact Form:	2z
Pick-up Time:	<=25ms
Release Time:	<=15ms
Dimensions(mm):	45.838.548
Weight:	130g
Mounting Form:	Welding

Product Description

Coil voltage: 6-220V AC, 6-220V DC

Contact capacity: 20A 250VAC, 30A 28VDC

Coil power: ≤2.5

Contact form: 1H(A), 2H(A), 3H(A)

Pick-up voltage: ≤80%

Drop-out voltage: ≥10%

Contact resistance: ≤50

Electrical life: 100000 times

Mechanical life: 10000000 times

Contact pressure resistance: ≥1000VAC

Coil pressure resistance: ≥1500VAC

Environmental temperature: -25-+55°C

Outline terminal form: layout by bolt

Weight: ≤130g

Technical parameters

Part NO.			JQX-12F
Dimension			*4845.838.5*
Contact Feature	Form		1A,1B,1C	2A,2B,2C
	Rated load		30A/240VAC 28VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		*≥1105**
	Mechanical life		*≥1107**
Operate voltage (25ºC)			*DC:≤75%Rated voltage**
			*AC:≤80%Rated voltage**
Release voltage (25ºC)			*DC:≥10%Rated voltage**
			*AC:≥30%Rated voltage**
Maximum voltage (25ºC)			*110%Rated voltage**
Normal coil voltage		DC	6-220V
		AC	6-380V
Normal coil power		DC	2.0W
		AC	4VA
Pick-up time(Rated voltage)			≤30ms
Release time(Rated voltage)			≤20ms
Dielectric strength	Between Same-pole contacts		1500VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts		1500VAC/1min(leakage current 1mA)
	Between contacts and coil		2500VAC/1min(leakage current 1mA)
Insulation resistance			≥500mΩ(500VDC)
Ambient temperature			-25ºC ~55ºC
Ambient humidity			45%-75%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			PCB,SCREW
