Product Specifications
| Prod Model: |
BK-FD12P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condensor Temperature: |
-55c or -80c |
| Finished Dosage Form: |
Granules |
| Certification: |
SGS |
| Type: |
Medicine Freeze Drying Machine |
Product Description
Introduction:

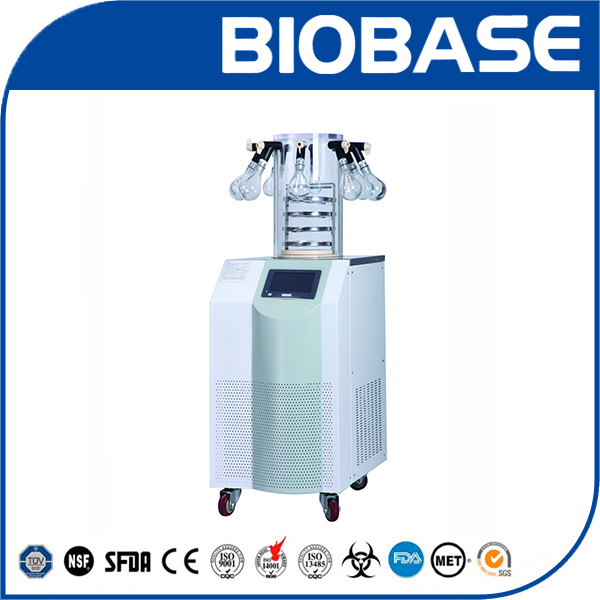

Biobase series vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production.
Features:
1. Pre-freezing and drying are in same place.
2. The machine is cascade refrigeration technology.
3. Silicon oil is intermediate medium in the shelves for heating to ensure drying material uniformity.
4. The shelf temperature is adjustable and easy to control.
5. The square shelf is easy to operate and clean.
6. 7 inch LCD display and touch screen control system, it adopt PID intelligent control system.
7. With historical data inquiry function, can store history data for one month.
8. The machine is equipped with USB interface on control panel. Can copy the data and history data directly without additional software.
9. Ice condenser and operation panel are made by stainless steel, corrosion-resistant and easy to clean.
10. The cabinet door is with high transparent colorless organic glass, the test process can be easily observed.
Technical Parameters:
Model | BK-FD12S
(Standard) | BK-FD12P
(Manifold) | BK-FD12T
(Top-press) | BK-FD12PT
(Manifold and Top-press) |
| Type | Vertical type |
| Ice Condenser Temp | -55ºC or -80ºC |
| Vacuum Degree | <10Pa |
| Water Capture Capacity | 4Kg/24h |
| Freeze Drying Time | 24h |
| Freeze Drying Area | 0.12~0.18m2 | 0.09m2 |
| Material Loading Capacity | 1200-1800ml | 900ml |
| Material Loading Capacity/Shelf | 300ml |
Tray Specification
(*h) | 200*15mm |
| Quantity Of Tray | 4~6pcs | 3pcs |
| Multi-Pipeline And Bottles | / | 8pcs | / | 8pcs |
Capacity For
Penicillin Bottle (22) | 260 | 195 |
Capacity For
Penicillin Bottle (16) | 480 | 360 |
Capacity For
Penicillin Bottle (12) | 920 | 690 |
| Consumption | 1000W (-55 degree) or 1500W (-80 degree) |
| Power Supply | 110V/220V, 50Hz/60Hz |
| External Size (W*D*H) | 480*616*920/1370mm |
| Package Size | Main Body | 600*730*1210mm |
| Glass Shade | 330*330*450mm |
| Vacuum Pump | 570*225*330mm |
| Gross Weight | 110~120Kg |
| Standard Accessory | Main body 1 pcs
Vacuum Pump 1 pcs
Standard drying cabinet 1 pcs | Main body 1 pcs
Vacuum Pump 1 pcs
Manifold drying cabinet 1 pcs
Drying bottles 8 pcs | Main body 1 pcs
Vacuum Pump 1 pcs
Top-press drying cabinet 1 pcs | Main body 1 pcs
Vacuum Pump 1 pcs
Manifold and top-press drying cabinet 1 pcs
Drying bottles 8 pcs |
