Biobase Biodustry (Shandong) Co., Ltd. >> Lab Field Vacuum Freeze Drying Machine

Lab Field Vacuum Freeze Drying Machine

Name: Lab Field Vacuum Freeze Drying Machine
Brand: china-manufacturer-directory.com
SKU: 760940035
Availability: InStock
Rating: 4.7 (135 reviews)

Supplier:	Biobase Biodustry (Shandong) Co., Ltd.
Price:	US $ 20000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BK-FD series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condensor Temperature:	-80c
Sample Temperature Range:	-50c ~ +70c
Finished Dosage Form:	Granules
Certification:	SGS
Type:	Medicine Freeze Drying Machine

Product Description

Introduction:
Biobase series vacuum freeze dryer (square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production.

Features:
1. Pre-freezing and drying are in same place.
2. The machine is cascade refrigeration technology.
3. Silicon oil is intermediate medium in the shelves for heating to ensure drying material uniformity.
4. The shelf temperature is adjustable and easy to control.
5. The square shelf is easy to operate and clean.
6. 7 inch LCD display and touch screen control system, it adopt PID intelligent control system.
7. With historical data inquiry function, can store history data for one month.
8. The machine is equipped with USB interface on control panel. Can copy the data and history data directly without additional software.
9. Ice condenser and operation panel are made by stainless steel, corrosion-resistant and easy to clean.
10. The cabinet door is with high transparent colorless organic glass, the test process can be easily observed.

Technical Parameters:

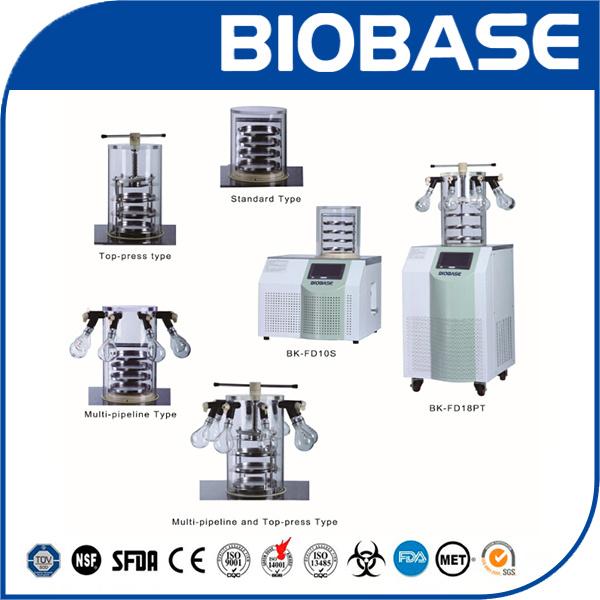

Model		BK-FD10S (Standard)	BK-FD10P (Multi-pipeline)	BK-FD10T (Top-press)	BK-FD10PT (Multi-pipeline and Top-press)
Type		Table top type
Ice Condenser Temp.		-55ºC
Vacuum Degree		<10Pa
Water Capture Capacity		3kg/24h
Freeze Drying Time		24h
Freeze Drying Area		0.12~0.18m2		0.09m2
Material Loading Capacity		1200ml		900ml
Material Loading Capacity/Shelf		300ml
Tray Specification (*h)		200*15mm
Quantity Of Tray		4~6pcs		3pcs
Multi-Pipeline And Bottles		/	8pcs	/	8pcs
Capacity For Penicillin Bottle (22)		260		195
Capacity For Penicillin Bottle (16)		480		360
Capacity For Penicillin Bottle (12)		920		690
Consumption		1000W
Power Supply		110V/220V, 50Hz/60Hz
External Size (WDH)		582625530/960mm
Package Size	Main Body	740730770mm
	Drying Cabinet	330330510mm
	Vacuum Pump	570225330mm
Gross Weight		100~110Kg
Standard Accessory		Main body x1 pc, Vacuum Pump x1pc, Standard drying cabinet x1pc,	Main body x1 pc, Vacuum Pump x1 pc, Manifold drying cabinet x1 pc, Drying bottles x8 pcs	Main body x1 pc, Vacuum Pump x1 pc, Top-press drying cabinet x1 pc,	Main body x1 pc, Vacuum Pump x1 pc, Manifold and top-press drying cabinet x1 pc, Drying bottles x8 pcs

Model		BK-FD12S (Standard)	BK-FD12P (Manifold)	BK-FD12T (Top-press)	BK-FD12PT (Manifold and Top-press)
Type		Vertical type
Ice Condenser Temp		-55ºC or -80ºC
Vacuum Degree		<10Pa
Water Capture Capacity		4Kg/24h
Freeze Drying Time		24h
Freeze Drying Area		0.12~0.18m2		0.09m2
Material Loading Capacity		1200-1800ml		900ml
Material Loading Capacity/Shelf		300ml
Tray Specification (*h)		200*15mm
Quantity Of Tray		4~6pcs		3pcs
Multi-Pipeline And Bottles		/	8pcs	/	8pcs
Capacity For Penicillin Bottle (22)		260		195
Capacity For Penicillin Bottle (16)		480		360
Capacity For Penicillin Bottle (12)		920		690
Consumption		1000W (-55 degree) or 1500W (-80 degree)
Power Supply		110V/220V, 50Hz/60Hz
External Size (WDH)		480616920/1370mm
Package Size	Main Body	6007301210mm
	Glass Shade	330330450mm
	Vacuum Pump	570225330mm
Gross Weight		110~120Kg
Standard Accessory		Main body 1 pcs Vacuum Pump 1 pcs Standard drying cabinet 1 pcs	Main body 1 pcs Vacuum Pump 1 pcs Manifold drying cabinet 1 pcs Drying bottles 8 pcs	Main body 1 pcs Vacuum Pump 1 pcs Top-press drying cabinet 1 pcs	Main body 1 pcs Vacuum Pump 1 pcs Manifold and top-press drying cabinet 1 pcs Drying bottles 8 pcs

Model		BK-FD18S (Standard)	BK-FD18P (Multi-pipeline)	BK-FD18T (Top-press)	BK-FD18PT (Multi-pipeline and Top-press)
Type		Vertical type
Ice Condenser Temp.		-55ºC or -80ºC
Vacuum Degree		<10Pa
Water Capture Capacity		6Kg/24h
Freeze Drying Time		24h
Freeze Drying Area		0.18~0.27m2		0.14m2
Material Loading Capacity		1800~2700ml		1400ml
Material Loading Capacity/Shelf		450ml
Tray Specification (*h)		240*15mm
Quantity Of Tray		4~6pcs		3pcs
Multi-Pipeline And Bottles		/	8pcs	/	8pcs
Capacity For Penicillin Bottle (22)		360		270
Capacity For Penicillin Bottle (16)		740		550
Capacity For Penicillin Bottle (12)		1320		990
Consumption		1500W (-55 degree) or 2000W (-80 degree)
Power Supply		110V/220V, 50Hz/60Hz
External Size (WDH)		560710945/1390mm
Package Size	Main Body	7008501240mm
	Drying Cabinet	350350510mm
	Vacuum Pump	570225330mm
Gross Weight		140~150Kg
Standard Accessory		Main body x1 pc, Vacuum Pump x1 pc, Standard drying cabinet x1 pc	Main body x1 pc, Vacuum Pump x1 pc, Manifold drying cabinet x1 pc, Drying bottles x8 pcs	Main body x1 pc, Vacuum Pump x1 pc, Top-press drying cabinet x1 pc	Main body x1 pc, Vacuum Pump x1 pc, Manifold and top-press drying cabinet x1 pc, Drying bottles x8 pcs
