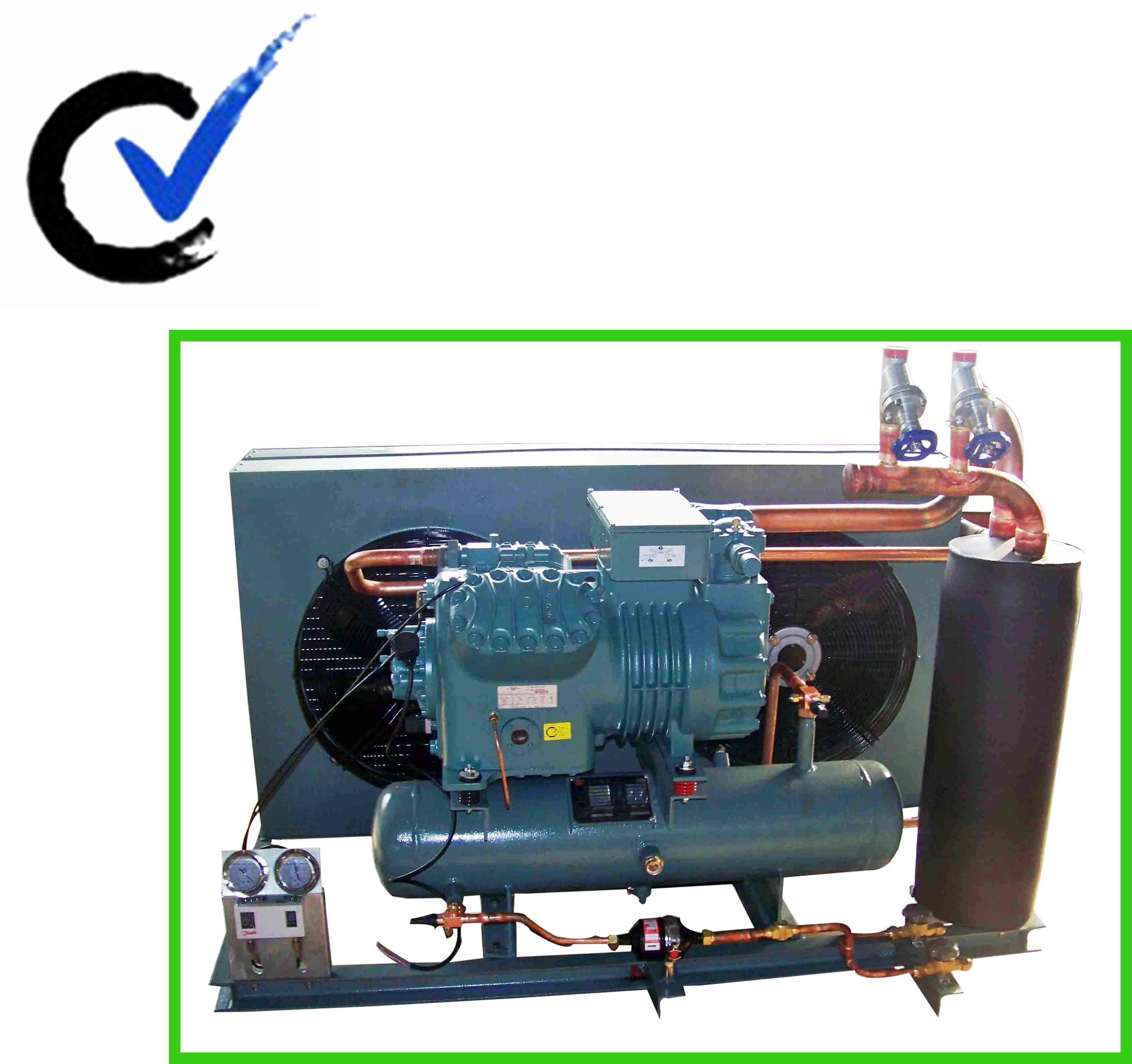

Bitzer Compressor Condensing Unit (SCBC-16A)

Name: Bitzer Compressor Condensing Unit (SCBC-16A)
Brand: china-manufacturer-directory.com
SKU: 671231892
Availability: InStock
Rating: 4.5 (124 reviews)

Supplier:	Shandong Shenzhou Refrigeration Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SCBC-16A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	for Refrigerate
Certification:	SGS
Cooling Method:	Direct Cooling

Product Description

A)High energy-efficiency
B)Reliable protector
C)Dependable performance
D)Reliable quility

Features:
1, Control accuracy, safety, reliability, little vibration, convenient installation and beautiful appearance;
2, All the accessories are world famous brand, which with reliable quality;
3, Flexible combination of capacity, you can start grading, multi-level unload to reduce energy consumption.

Information:

1. Applied room temperature -40C~-15C
2. Cooling capacity 7.4Kw~25.1Kw
3. Evaporating temperature -50C~-25C
4. Refrigerant: R22, R134A, R404A, R507A
5. Standard Equipment: Compressor, crankcase heater, oil pressure safety switch, air-cooled condenser, receiving tank, drier-filter, meter panel, pressure controller, B5.2 refrigeration oil, protection gas, double stage compressor with intermediate cooler.

Technical Data

Model

SCBC-16A

Compressor		Condenser			Piping dimension		Overall dimension			Weights
Max. electric current	Max. Power consumption	Flux of Air	Dia. × number	Power	DL	SL	L	W	H	Weights
A	KW	m³ /h	mm	Kw	mm	mm	mm	mm	mm	Kg
31.0	18.1	6600× 2	550× 2	370× 2	42	16	1370	930	880	341

SHANDONG SHENZHOU REFRIGERATION EQUIPMENT Co., Ltd, origin from 1989 and registered in 2003, is the leading manufacturer of refrigeration equipment such as parallel compressor rack, air cooled Condensing unit, evaporator, controller etc In China.

---Reliable raw materials

Products adopt BITZER compressor, CAREL controller DANFOSS valve, electrical members are Siemens or LG.

(last year, 1/3 production amount of screw compressor of Bitzer (China) were made into compressor unit and sold by us. )

---Strong R&D ability

9 patents

We are the only manufacturer in China who can make CO2 cascade compressor unit which was exported to France in 2010.

---Quality control

ISO 9001, CCC certificate

Complete after-sales ability

We have one of the five BITZER Green Point maintenance centers.

---Our honors

Member of CRAA. (China Refrigeration and Air-conditioning Association )

2011 the Fastest Growing Reward of BITZER

2011 the Most Potential Enterprise in refrigeration area

2012 best application&promotion award of BITZER
