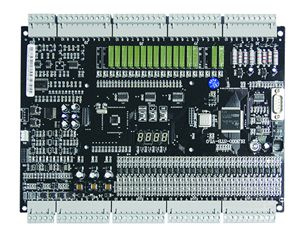

BL3000 Serial Microprocessor Control Board
l Application scope: simplex, duplex, and group control for 3-8 elevators (with a group control board)
l Speed range: 0.25-4 m/s
l Applicable elevators: passenger elevators, bed elevators, residential elevators, and panoramic elevators
l Stops: < 64
l Interfaces for wireless and wired remote monitoring, and cell monitoring
l Interfaces for intelligent IC/ID card and voice synthesizer
l Interfaces for loading compensation and fire linkage control
l Internet I/O Module
(configurable
)l Applicable to geared traction machines and gearless permanent magnet machines
Features:
l Dual 32-bit CPUs are highly integrated in the control board to guarantee accurate computing and real-time data processing.
l Two CPUs work in master/slave mode. The master CPU processes elevator signals and the slave CPU monitors elevator conditions and provides security protection. The redundancy design implements fault tolerance and secure monitoring, thus improving the system reliability.
l The system is compatible to the BL2000 system and supports more functions to make it more intelligent and open, for example, reserved Internet interface, absolute value encoder and built-in expert system for fault self-diagnosis.
l The board has a large LCD display that can show Chinese or English menus and monitor the elevator operation curve in real time.
l A handheld operator is available for parameter setting and data dumping. The system also supports parameter setting on the board.
l The board realizes perfect integration of intelligence, security, and foresight.
