Block Production Line with Curing Room

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New

Product Description

Description:

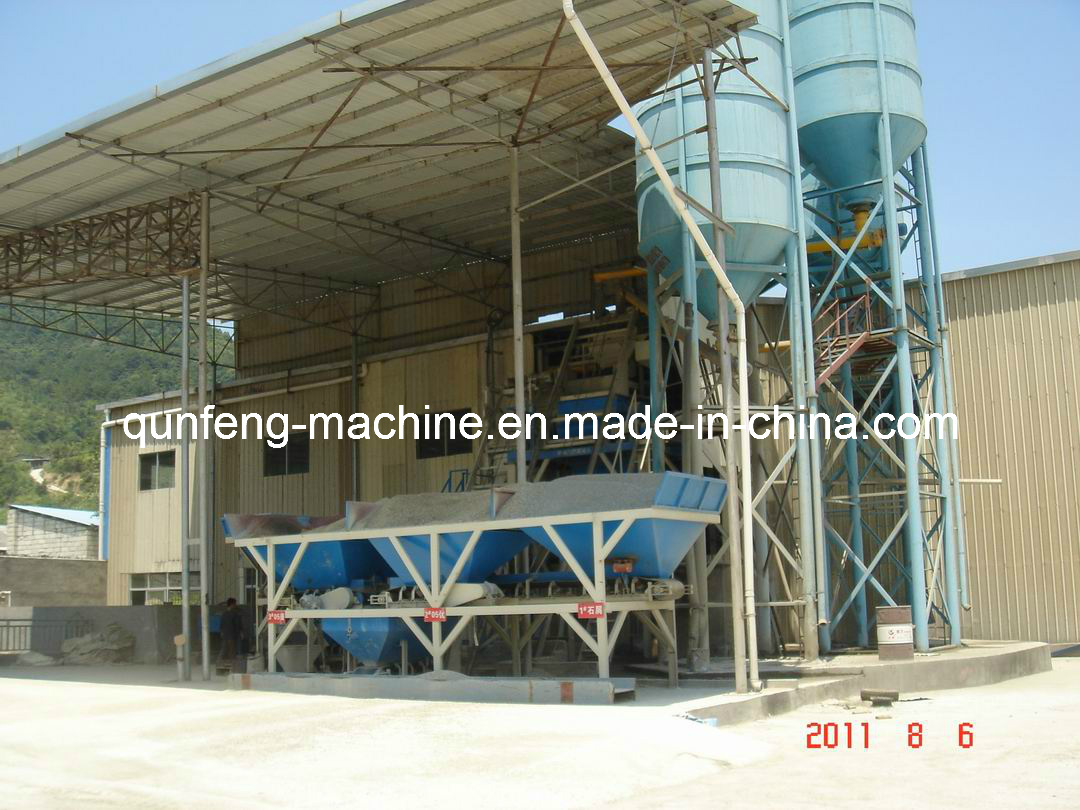

1. Concrete Mixing Station: It consists of cement silo (fly ash bin ), automatic batching machine, dual
Horizontal shafts forced concrete mixer, cement scale and screw conveyor. It can batch and mix several
Kinds of aggregates automatically in accordance with the concrete ration set by the users beforehand. It will convey the material to block making machine through the conveyer:

A. The automatic batching machine can weigh on two to four kinds of aggregates. Various models are available for users to choose from.

B. Thecement in he cenment silo will be conveyed to cement scale for weighing through the screw conveyor
After it reaches the mixer, which not only controls the cement centent accurately but also improves the quality of products. It will reduce working environmental pollution as well.

C. Color mixing systerm includes PL800 Batching Machine, JQM500 Mixer (with lifting systerm), pigment conveyor belt. Pigment will be automatically batched and mixed.

D. The mixing station is controlled by independent PLC systerm. It is easy to operate and works reliably.

2. Forming Systerm:
It is made up of model QFT10-15 block making machine and automatic color feeding systerm. The forming system is technologic equipment intergrating mechanism, hydraulic pressure and computer automatic control, featuring high working efficiency, reasonable design, compact structure, easy operation and convenient maintenance.

3. Transition Machine:
After curing, the curing rack wil take out the cured block from the kiln car and the empty car will transfer to the transition cart. As the transition cart comes in front of the setting machine, it will push the empty kiln car to the setting machine.

4. Setting Machine:
Place the green blocks with pallets that formed by the block making machine one year after another on the kiln car. Then, the automatic pushing device in the transition cart will push anther empty kiln car to the setting machine and transfer the previous kiln car (with green blocks) outside the setting machine as well.

5. Ramp Cat:
Push the kiln car which loads green blocks to the ramp car with detent -type pawl. The ramp car will push the kiln car (with green blocks) to the cruing room when it advances outside the curing room. The ramp car returns to the original position and transfer another kiln car to the curing room. After fulloading, the ramp car will repeat the operation.

6. Curing room:
The curing room is designed to cure the green blocks. Th door of curing room opens as the green blocks are cured. The ramp car wil push the kiln car (with green blocks) to the said curing room and its first kiln car (with cured blocks) will draw out of the curing room. Pick up the cured blocks and send the enpty klin car to the transition cart for the next operation circle.
