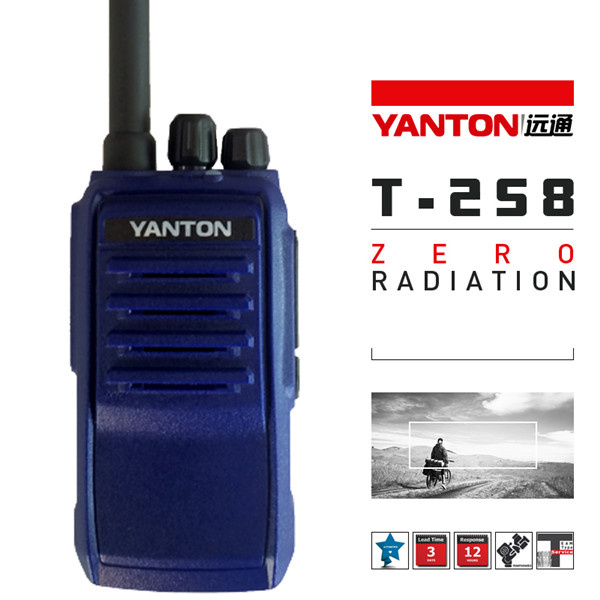

blue case 2 way Walkie Talkie Radio Transceiver YANTON T-258
Main features
1. Frequency Range: UHF 400-480MHz VHF: 136-174MHZ
2.16 channels
3. Output power: 5w
4. PC software programmable, Encrypted programming software
5. CTCSS/DCS
6. Chinese and English voice prompt
7. Power saving function
8. High/low power selective
9. Wide/narrow bandwidth selective
10. Busy channel lock
11. Transmitter time-out timer(TOT)
12. DTMF functions
13. Remote kill/stun
14.1500mah battery
Detailed pictures:
Specification:
| Model | T-324 walkie talkie |
| GENERAL | Frequency Range | 136-174mhz/400-480MHZ |
| Number of Channels | 16 |
| Working Voltage | 7.4V LI-ION |
| Working Temperature | -20°C~+60°C |
| Frequency Stability | ±2.5ppm |
| Size(H*L*W) | 111*54*34mm |
| Weight | 249g |
| TRANSMR | Power Output | 5W |
| Modulation | F3E |
| Radiation | <-60dB |
| Power | >55/65dB |
| Modulation Limit | ±2.5/5KHz |
| Distortion | ≤5% |
| Noise Response | 34/40dB |
RECEIVER | Sensitivity | <0.20µV |
| Neighbour Channel Selectivity | ≥60/70dB |
| Noise Response | ≥65/70dB |
| Audio Power | 500mW |
| Audio Distortion | ≤5% |
| Intermodulation Distortion | ≥60dB |
Maintenance:
Radio transceiver should be treated with care. The suggestions below will help you to fulfill any warranty obligations and to enjoy this product for many years
- Do not attempt to open the unit. Non-expert dealing with the unit may damage it.
- When using regulated power supply, take notice of power voltage must be between 6V and 8V to avoid damage the radio
- Do not store the radio under the sunshine or in hot areas. High temperatures will shorten the life of electronic devices, and warp or melt certain plastics.
- Do not put the radio in dusty, dirty areas.
- If it appears that the radio diffuses peculiar smell or smoke, please turn off it immediately and take off charger or battery in the radio, then contact with YANTON agency.
- Do not transmit without antenna
