Product Specifications
| Prod Model: |
FM-1325RH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1540*2640 |
| Working Size: |
1300×2500×200mm |
| Spindle Power: |
3kw Inverter-Driven Spindle Motor Cooled by Air or |
| Spindle Rotate: |
6000~18000rpm |
| Motion Speed: |
50m/Min |
| Dictate Format: |
G-Code |
| Tools Change Mode: |
Circular Auto Tool Change System |
| Controlling System: |
Syntech Controller, Lnc Controller (Optional) |
| Spindle Layout: |
Spindle Over |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Manual |
| Controlling Mode: |
CNC |
| Certification: |
SGS |
Product Description

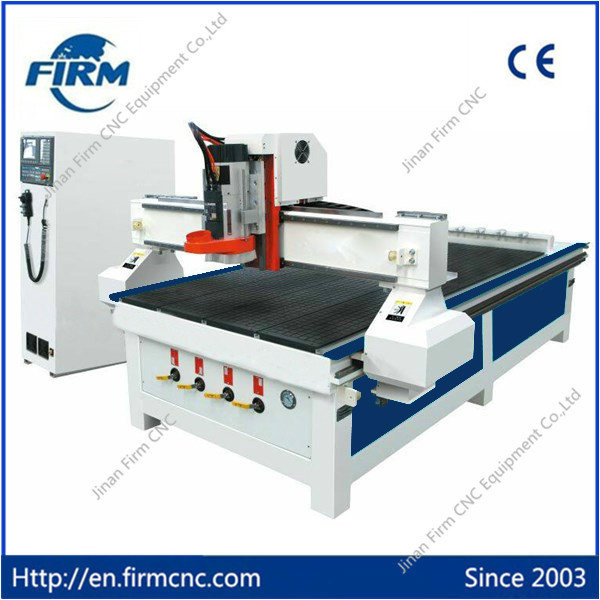

Board Wood MDF HDF CNC atc cnc router machine
Features:
1. Innovation design, multistage processing system, can process complicated wooden art- crafts more easily and efficiency.
2. Standard configured of 3pcs constant power spindle motor, can be mounted 3kinds of different tools, can process any complicated wooden working pieces in one time, reduced processing difficulty of art craft products, increased working efficiency greatly.
3. Adopt the most advanced FPGA colored LCM controlling system, independent power supply, rapid calculation, power antijamming capacity, more performance.
4. Optimization of mechanical and electrical design, ensure motion speed up to 30m/min, high efficiency.
5. Standard configured with 2GB inner memory capacity, support USB transmitting files, can save massive processing files.
6. Owns more functions of power off restoration, continuation on break point etc.
7. Import THK linear rail from Japan more stable, more durable and higher accuracy.
8. Splendid independent control cabinet, easy to make maintenance, user friendly interface.
9. Configured with high-power servo system.
10. Importer high speed mute ball screw transmitting, high precision and speed.
Applications:
Widely used in antique furniture with relief carving, wood carving, furniture- processing, in
Struments making 3D light box making, making, aluminum composite panel, funding mound
Decorative doors and windows processing etc.
Special configurations;
It can be customized more large format and special models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system,
Vacuum inhaling and dust collect etc.
Guarantee & After Sales Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by phone, email or msn, skype etc.
Package
Inner package: Stretch film
Outside Package: Free fumigation wooden case for export
Shipping: By ship from QINGDAO to Your port.
Our Services
1. Payment terms: 30% T/T for deposit, 70%T/T paid before shipping. FOB terms
2.30%T/T for deposit, 70%T/T paid against copy of B/L. CIF terms. Or CNF
3. The whole machine is one year warranty.
4.24hours online service or tel or email.
5. If parts broken because of quality problem, we supply for free. But not include express fees.
Our QC team
A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
FAQ:
1. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
2. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
3. How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
4. If some problems happened to this machine during warranty period, what should i do?
We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever, so any doubts, just us know, we will give you solutions in 30 minuts.
| Model | FM1325RH | FM1630RH | SG1325LH | SG1630LH |
| Working size | 1300x2500x300mm | 1550x3000x300mm | 1300x2500x300mm | 1550x3000x300mm |
| Spindle Motor | Italy 7.5KW ATC spindle motor cooling by fan (Colombo,Elte,HSD optional) |
| Motion Speed | 50m/min |
| Processing Speed | 20m/min |
| Spindle Rotation Speed | 0-18000RPM |
| Tools | Φ3.175mm, Φ4mm, Φ6mm, Φ12.7mm, Φ20mm(optional) |
| Transmitting System | X,Y,Z axis High Speed, mute rolling ball screw from Germany |
| Dictate Format | G-code |
| Resolution | 0.005mm |
| Tools Change Mode | Circular auto tool change system | Liner auto tool change system |
| Tools Number | 8pcs tools (optional:10,12pcs tools) | 6pcs tools( optional: 8,10pcs tools) |
| Tools Change Interval Time | 8 seconds | 15 seconds |
| Controlling System | SYNTECH controller, LNC controller (Optional) |
