Categories
| Price: | US $ 4800-7000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
# One year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.
Certification:CE SGS
6.FAQ
Question 1:How long about the machine's guarantee ?
Answer :1 year
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question 5: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Any questions, please do no hesitate to contact us.
| Number | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300mmx2500mmx200mm |
| 2 | Table Size | 1750mm×3450mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined (Option: T-slot Table) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | 3KW(Without Spindle) |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3.0/4.5/6/7KW |
| 13 | Spindle Speed | 0-24000RPM |
| 14 | Drive Motors | stepper motor System |
| 15 | Working Voltage | AC380V/50Hz,3Phs (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | NC Studio System(Options: DSP/Syntec Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Artcam Software |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3300mmX2100mmX2300mm |
| 26 | N.W. | 1750KG |
| 27 | G.W. | 1980KG |
| 28 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| 850W Yaskawa/750W Panasonic Servo Motors |

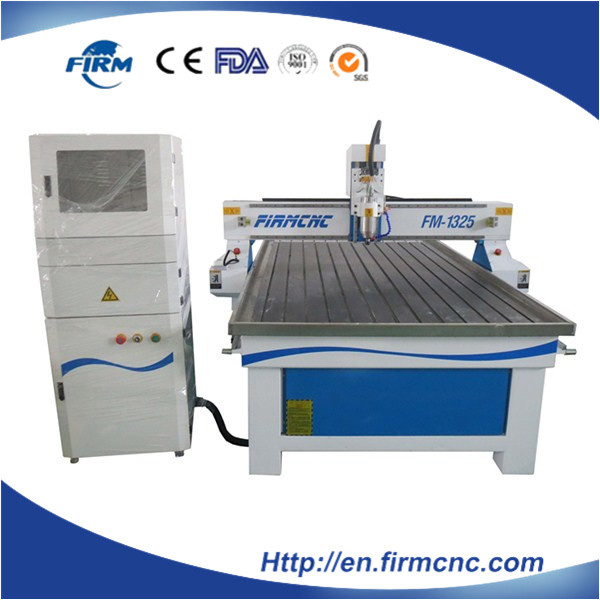

| Prod Model: | FM1325 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: | 1300*2500*200mm |
| Frame: | Welded Structure |
| Table Surface: | T-Slot Table |
| Max. Power Consumption: | 3kw(Without Spindle) |
| Spindle Power: | 6000~24000rpm |
| Engraving Speed: | 8000~12000mm/Min |
| Working Form: | Full-Automatic |
| Mechanical Accuracy: | <0.03/300mm |
| Drive Motors: | Stepper System |
| Data Transmission: | PC Connect |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Manual |
| Controlling Mode: | CNC |
| Certification: | SGS |
